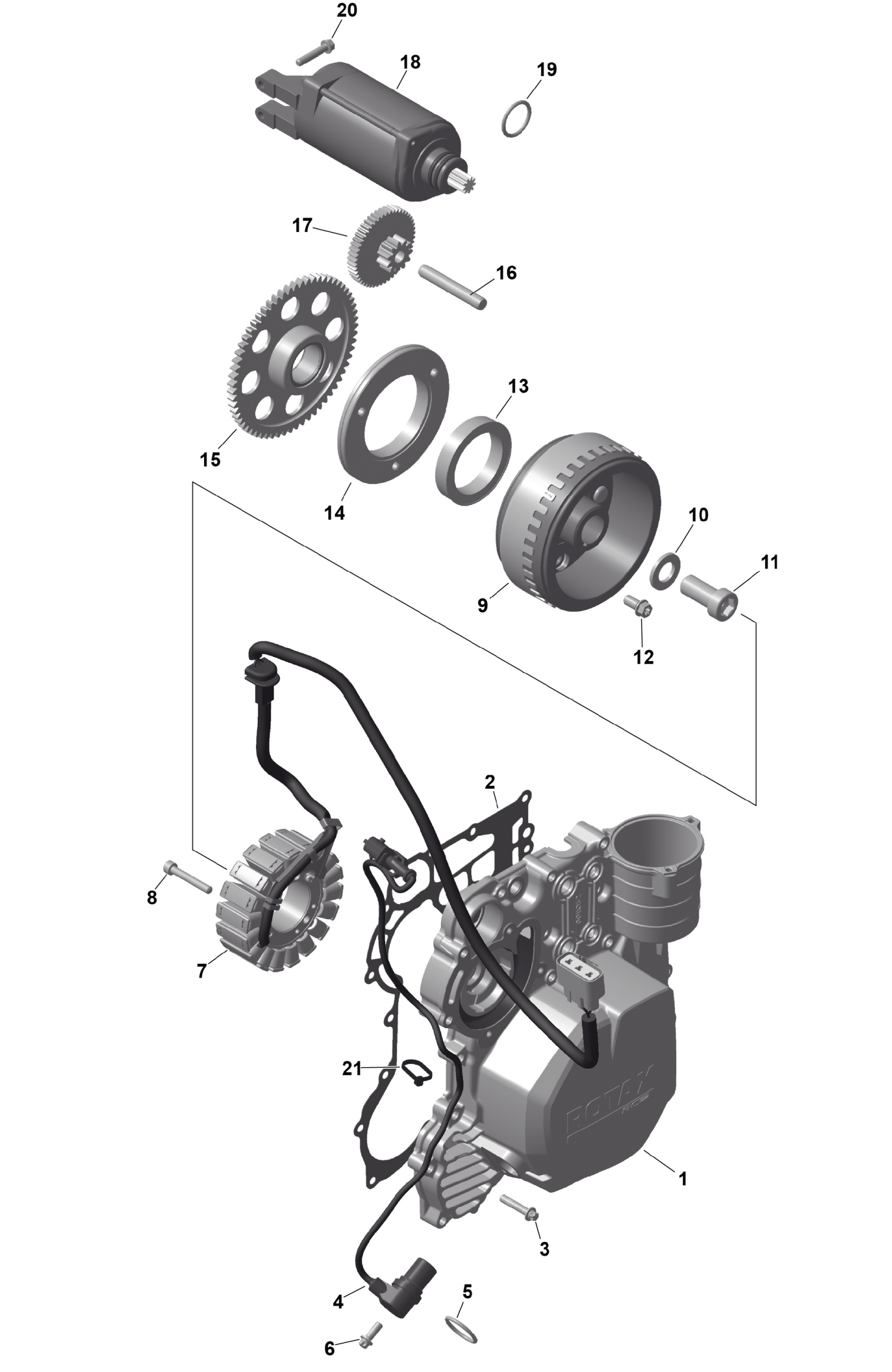

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 ROTAX - Magneto and Electric Starter Diagram

Description

Price

Cover

420911052

$164.90

Gasket

420431640

$36.54

Torx Flange Screw M6 X 30

420840663

$5.42

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

O-Ring

420431580

$14.10

Torx Flange Screw M6 X 16

420641048

$2.82

Stator Plate 420W

420296908

$319.49

Allen Screw M6 X 40

420241956

$3.01

Flywheel Ass'y 420W

420685702

$379.99

Shim

420627270

$3.88

Socket Head Screw M16 X 35

420241549

$8.09

Torx Flange Screw M8 X 16

420440854

$4.15

Sprag Clutch

420659113

$235.79

Sparg Clutch Housing

420659263

$141.01

Free Wheel Gear, 64 Teeth

420434238

$101.46

Needle Pin

420229475

$14.10

Starter Double Gear 11/49 T

420634741

$179.07

Starter Ass'y | Includes no. 19-20

420893835

$265.99

O-Ring

420250145

$9.03

Torx Flange Screw M6 X 30

420840663

$5.42

Tie Rap

420866714

$1.79
