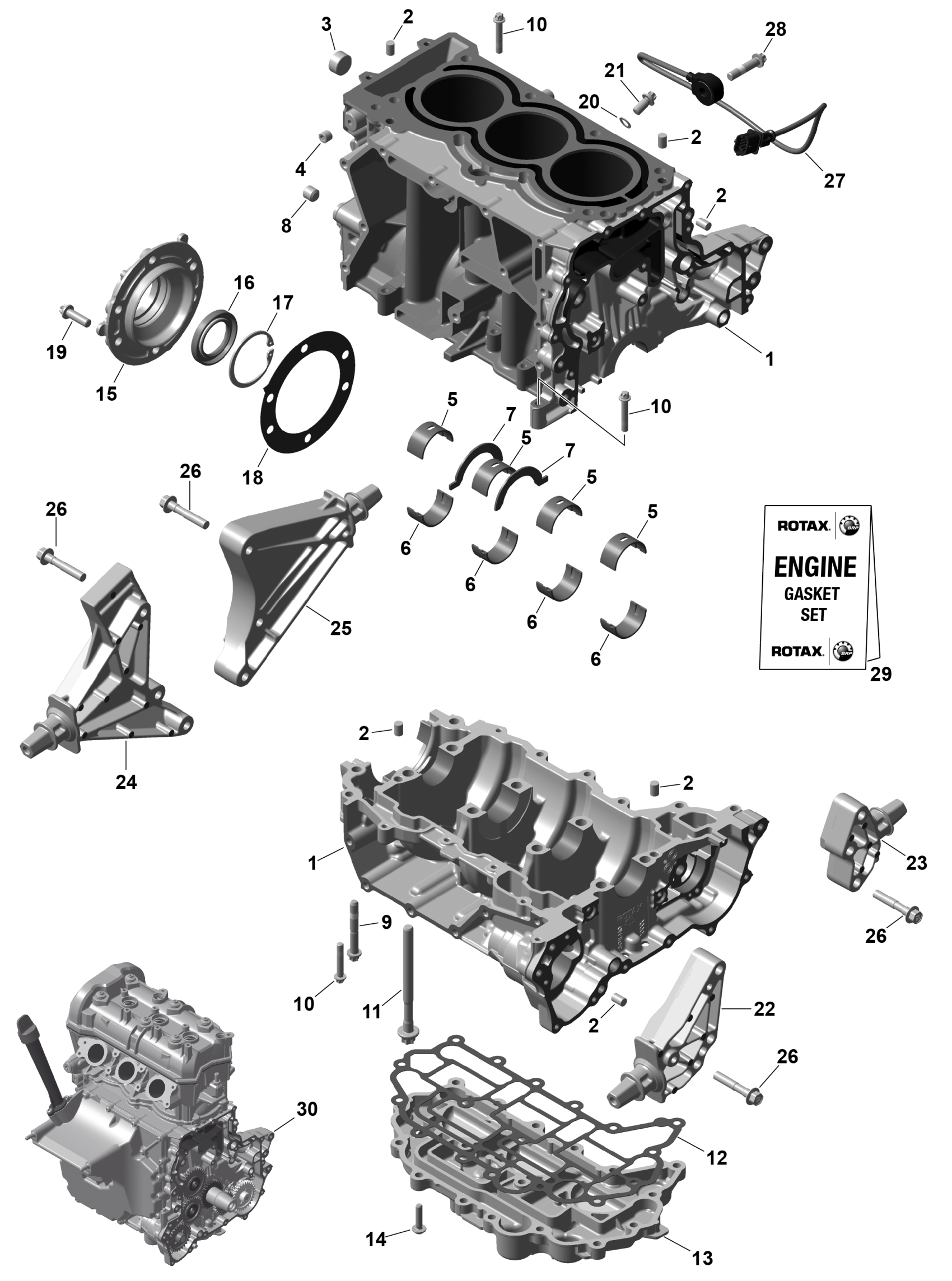

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 ROTAX - Crankcase Diagram

#

Description
Price

1

Engine Block | Includes 1 to 6

420894026

$2,031.49

2

Center Pin 8 X 12

420632010

$3.52

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Cushion

420933180

$16.39

6

Cushion

420933185

$17.13

7

Ring Half

420933140

$10.21

8

Threaded Pin

420840508

$17.13

9

Torx Flange Screw M8 X 55

420641213

$7.01

10

Torx Flange Screw M6 X 35

420641258

$3.19

11

Torx Flange Screw M9 X 113

420940945

$11.96

12

Gasket

420431820

$14.90

13

Oil Sump

420912381

$102.99

14

Torx Flange Screw M6 X 25

420841548

$5.04

15

PTO cover | Includes no. 15-17

420911689

$159.67

16

Oil Seal | Included in gasket kit

420850220

$36.54

17

Retaining Ring

420945820

$6.21

18

PTO Cover Gasket

420450080

$6.07

19

Torx Flange Screw M8 X 25

420641248

$5.42

20

Sealing Ring | Included in gasket kit

420950144

$1.84

21

Torx Flange Screw M8 X 16

420441653

$4.58

22

Front Engine Bracket, Intake

420911770

$52.96

23

Front Engine Bracket, Exhaust

420911775

$52.96

24

Rear Engine Bracket, Intake

420911780

$58.18

25

Rear Engine Bracket, Exhaust

420911785

$58.18

26

Hex. Flange Screw M8 X 45

420641208

$7.09

27

Noise Sensor

420664031

$58.18

28

Torx Flange Screw M8 X 35

420641188

$7.01

29

Gasket Set

420686238

$478.33

30

Long Block 903

420090336

$4,103.99
