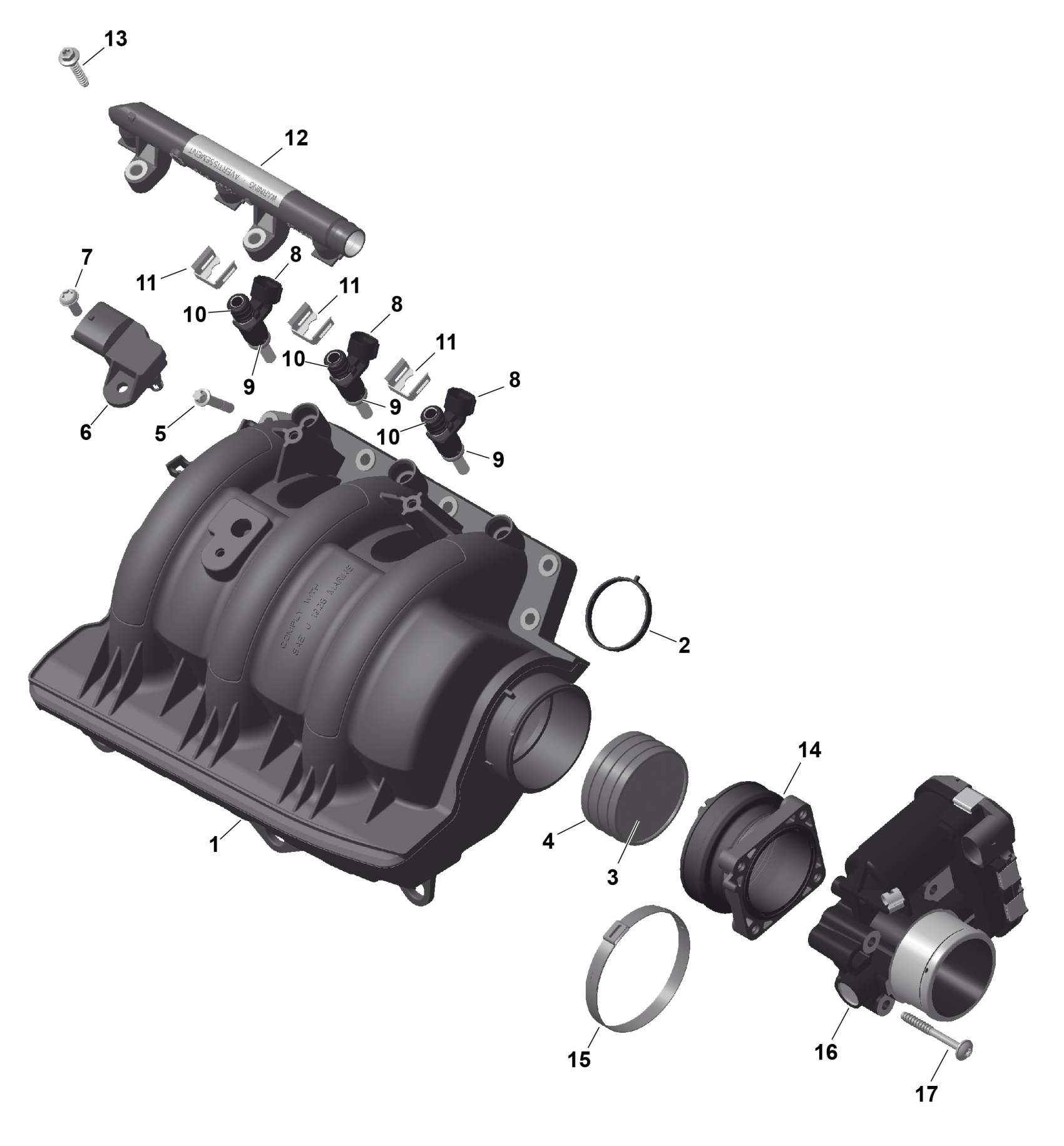

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Airbox Ass'y | Includes no. 1-4

420867368

$379.99

Gasket | Included in gasket kit

420431662

$10.33

Flame Arrester

420667710

$264.99

Profile Ring

420201210

$19.99

Torx Flange Screw M6 X 30

420840663

$5.82

Pressure And Temperature Sensor

420874658

$119.99

Torx Flange Screw M6 X 16

420641588

$2.11

Injection Valve

420874855

$169.49

O-Ring

420831050

$20.49

O-Ring

420430775

$4.29

Injector Clip

420853030

$3.09

Fuel Rail

420874966

$14.49

Torx Screw 6X30

420441575

$3.06

Intake Neck

420867092

$42.99

Hose Clamp

420251483

$17.05

Throttle Body

420893144

$409.99

Torx Flange Screw M6 X 50

420441588

$4.44
