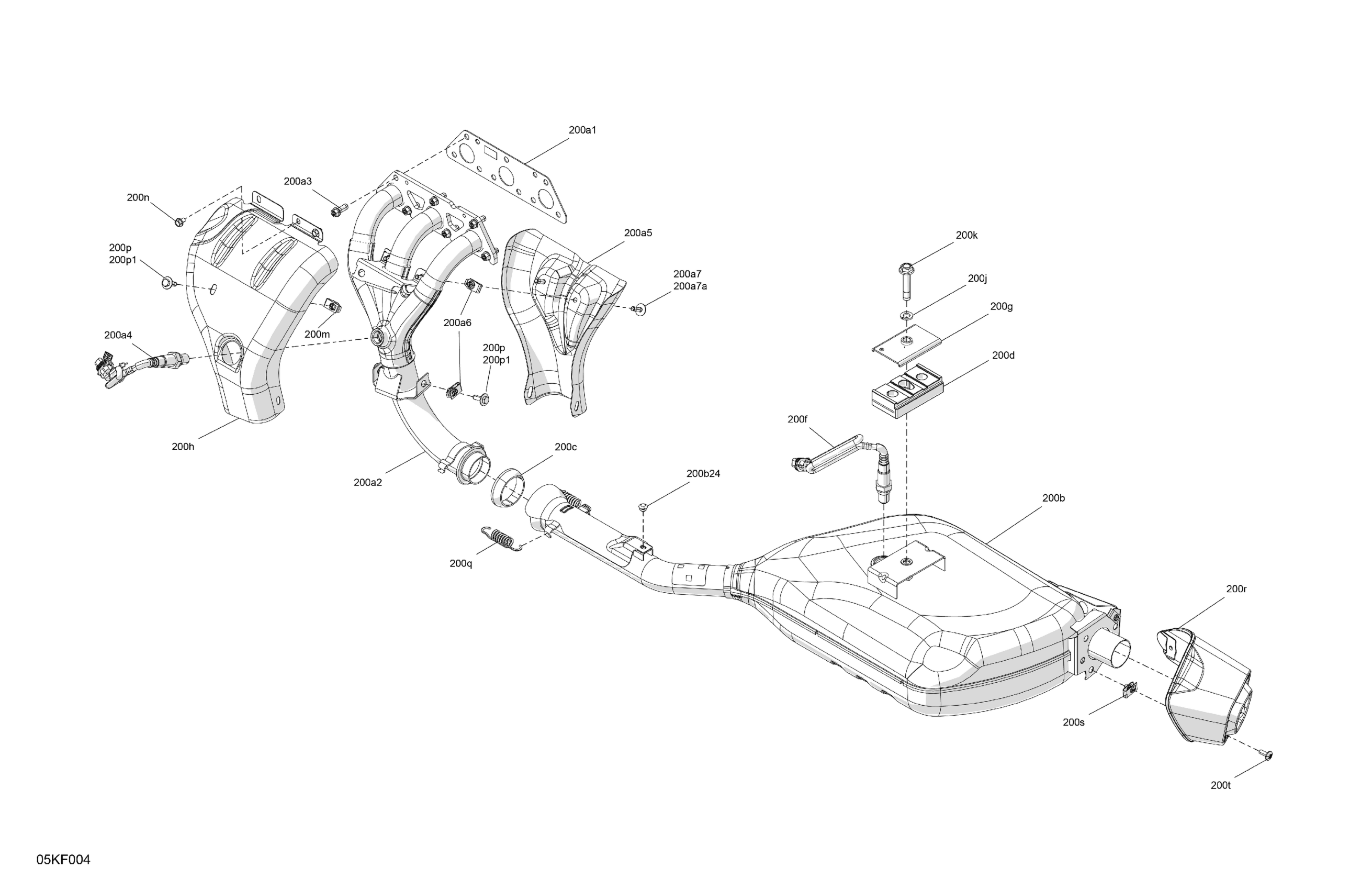

Can-Am International - RYKER - STD - 900 ACE - F2TB - Deep Black, 2026 Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707602002

$18.00

200a2

Exhaust Manifold

707602001

$155.00

200a3

Hex. Flange Screw M8 X 20

250001089

$1.00

200a4

Oxygen Sensor

707600872

$115.67

200a5

Heat Shield

707604132

$52.00

200a6

Panel Nut M6 X 1.0

250100198

$1.73

200a7

Hex Screw M6 X 20

250000965

$1.74

200a7a

Not Available As Spare Parts

XXX

Unavailable

200b

Exhaust Muffler | Includes 200b to 200b30

707603437

$1,070.00

200b24

Rivet Ornit 6,5 X 10.5

293150264

$1.94

200c

Exhaust Gasket

707601033

$13.29

200d

Vibration Damper

707603448

$15.00

200f

Oxygen Sensor

707600872

$115.67

200g

Rear Upper Exhaust Support

707603884

$18.00

200h

Heat Shield

707604130

$48.00

200j

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

200k

Hex. Flange Screw M10 X 50

250001079

$2.00

200m

Panel Nut M6 X 1.0

250100198

$1.73

200n

Hex. Forming Screw M6 X 10

210261050

$1.42

200p

Hex Screw M6 X 20

250000965

$1.74

200p1

Not Available As Spare Parts

XXX

Unavailable

200q

Spring

514055198

$6.20

200r

Carbon Black, Muffler End Piece

707602404

$24.00

200s

Panel Nut M6 X 1.0

250100198

$1.73

200t

Torx Truss Screw M6 X 16

250000348

$1.74
