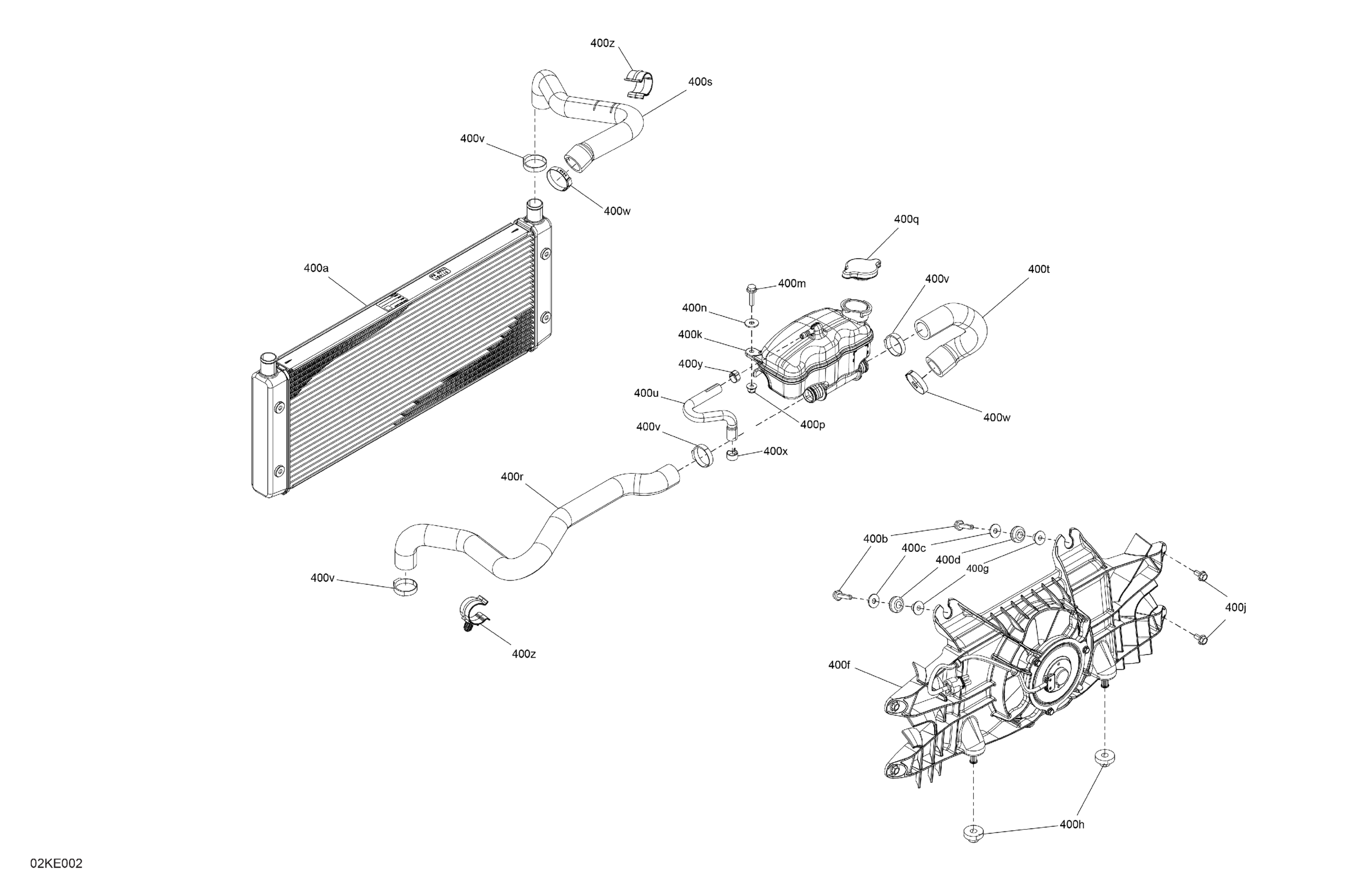

Can-Am RYKER - STD - 900 ACE - F2SC - CARB - Deep Black, 2025 Engine - Cooling Diagram

Description

Price

400a

Radiator

709200724

$349.99

400b

Hex. Flange Screw M6 X 25

207662534

$2.11

400c

Flat Washer

250200082

$0.42

400d

Bushing

709001288

$9.09

400f

Fan Ass'y With Shroud

709200719

$219.99

400g

Overmolded Grommet

293720130

$4.69

400h

Grommet

709200948

$8.89

400j

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

400k

Coolant Tank

709200963

$43.99

400m

Hex. Flange Screw M6 X 25

207662534

$2.11

400n

Flat Washer

250200082

$0.42

400p

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

400q

Radiator Pressure Cap

709200207

$25.49

400r

Formed Radiator Hose

709201467

$14.22

400s

Formed Radiator Hose

709201469

$14.22

400t

Hose

709201470

$14.30

400u

Hose

709201472

$14.30

400v

Crimp Clamp

293650331

$4.44

400w

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

400x

Universal Spring Clamp

513033029

$5.39

400y

Oetiker Clamp

293650046

$2.89

400z

Retainer

275500526

$4.55
