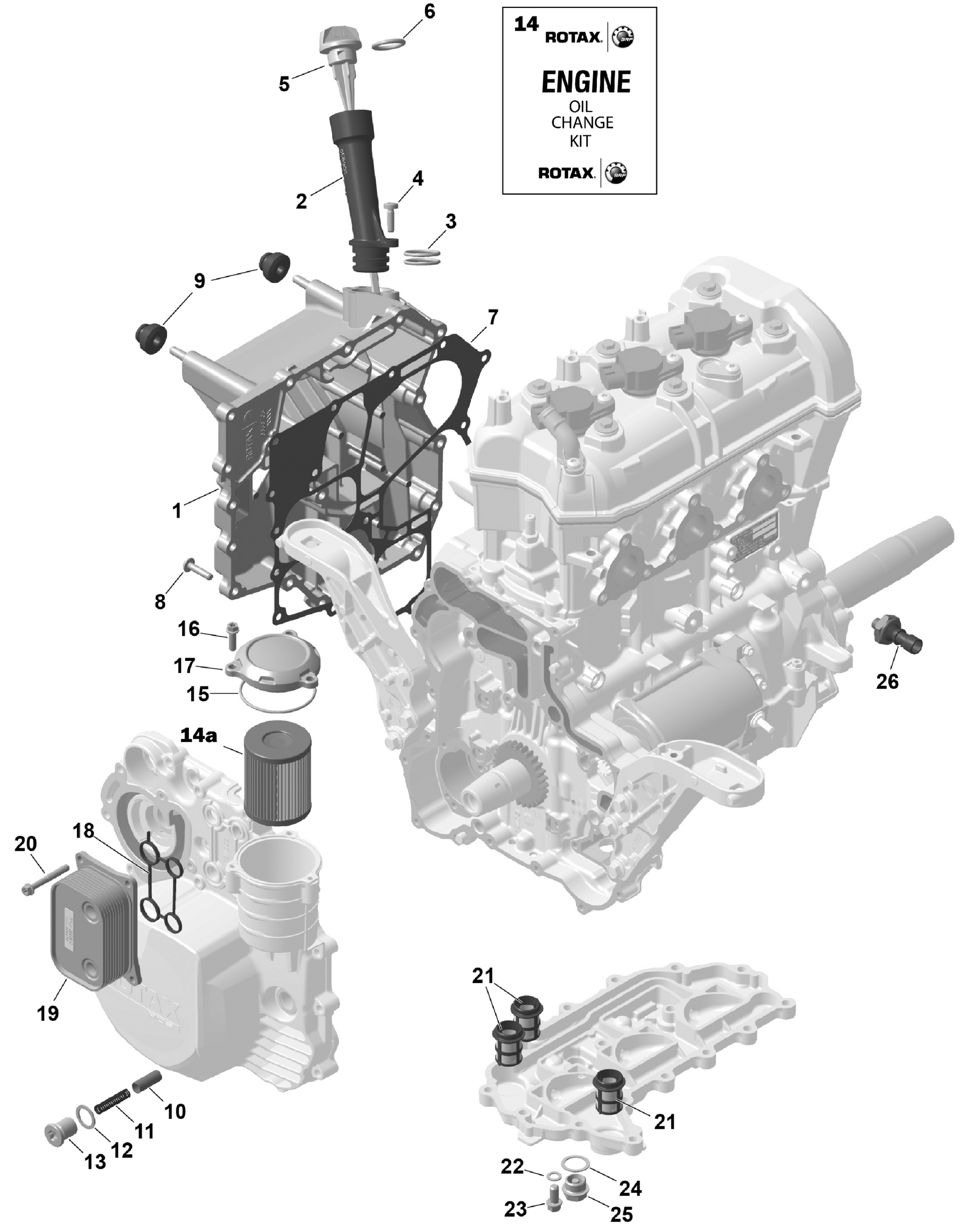

Can-Am RYKER - STD - 900 ACE - F2SC - CARB - Deep Black, 2025 ROTAX - Engine Lubrication Diagram

Description

Price

Oil Sump Cover

420656708

$90.97

Oil Filler Tube

420656905

$6.66

O-Ring

420430440

$3.49

Torx Flange Screw M6 X 20

420441386

$2.00

Oil Level Tube

420856664

$17.68

O-Ring

420631640

$2.00

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

Torx Flange Screw M6 X 25

420841548

$4.39

Rubber Grommet

420860150

$4.41

Pressure Regulating Piston

420256591

$10.58

Spring

420239445

$10.58

Gasket Ring

420430624

$1.51

Plug Screw

420441373

$11.01

Ryker Oil Change Kit 5W40 900CC

9779299

$84.99

14a

Oil Filter

420956123

$11.14

O-Ring

420230923

$2.59

Torx Flange Screw M6 X 20

420440207

$2.54

Oil Filter cover

420612135

$10.78

Gasket

420431871

$8.83

Oil Water Heat Exchanger

420656698

$110.42

Torx Flange Screw M6 X 45

420440324

$0.81

Oil Sieve

420656680

$8.72

Sealing Ring

420950141

$1.64

Torx Flange Screw M8 X 16

420440852

$3.88

Crush Washer

420552280

$2.99

Drain Plug M18 X 1.5

420840278

$22.36

Oil Pressure Switch

420856536

$48.72
