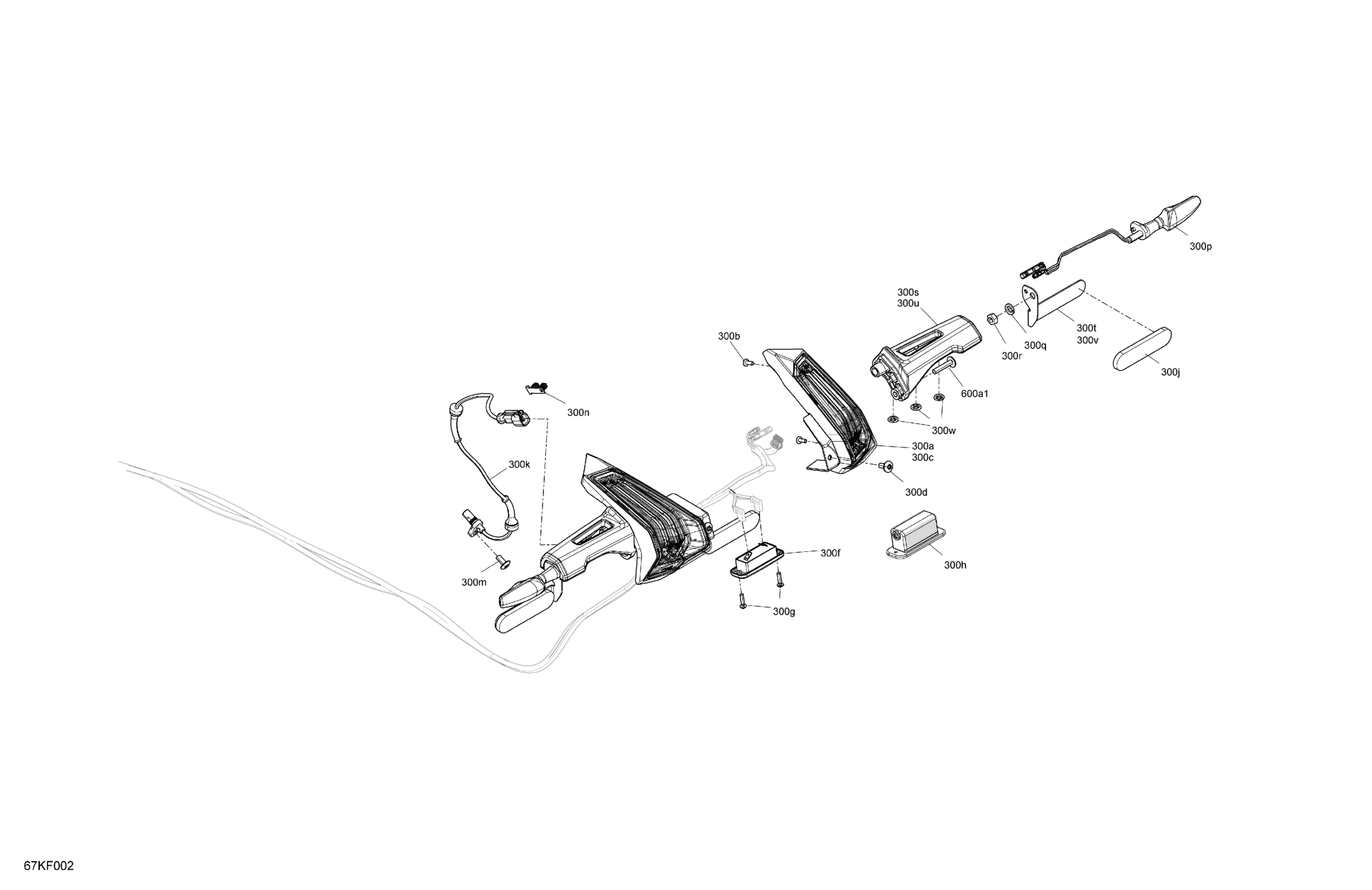

Can-Am International - RYKER - STD - 600 ACE - F1TB - Deep Black, 2026 Electric - Taillights Diagram

Description

Price

600a1

Torx Truss Screw M6 X 30

250000843

$1.74

300a

LH Rear Tail Light

710010213

$169.99

300b

Torx Truss PT K40 x 12

250001131

$1.74

300c

RH Rear Tail Light

710010214

$169.99

300d

Torx Truss M6X14

250000789

$4.41

300f

License Light

710005501

$55.19

300g

Flange Torx Screw K40 X 16

250000287

$1.74

300h

Rear Connector Guard

710008469

$8.43

300j

Red, Reflector

705015551

$8.01

300k

Speed Sensor

710007283

$82.99

300m

Torx Truss M6X14

250000789

$4.41

300n

Clip (double dart)

278002910

$10.30

300p

Amber, Turn Signal Light

710008471

$83.49

300q

Slotted Washer

710006520

$1.15

300r

Slotted Nut

710006521

$2.11

300s

LH Rear Turn Signal Support

710006132

$15.99

300t

LH Reflector Support

710009514

$15.99

300u

RH Rear Turn Signal Support

710006133

$15.99

300v

RH Reflector Support

710009515

$15.99

300w

Pressure Nut

250100163

$1.72
