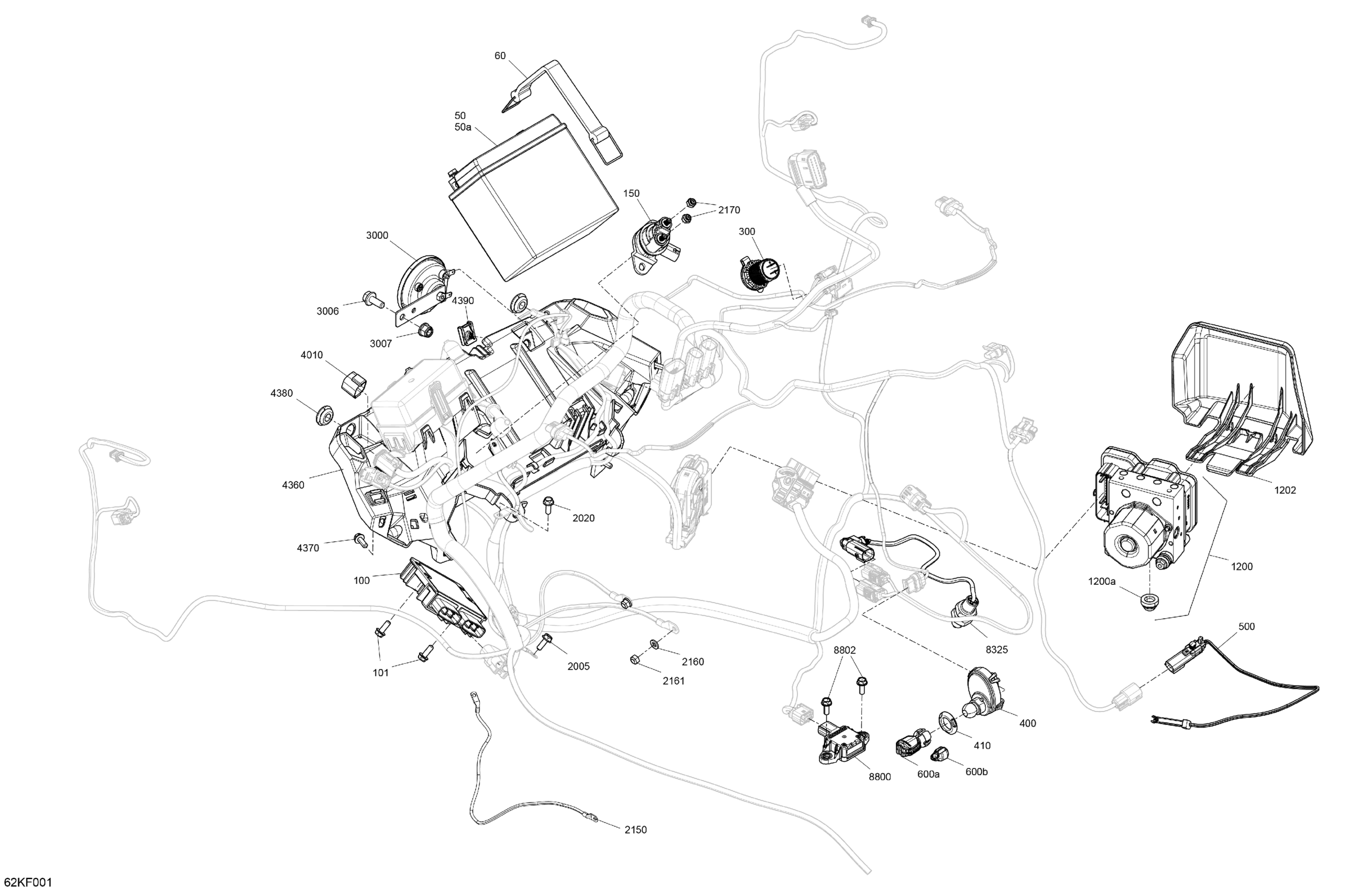

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Electric - System Diagram

Description

Price

Battery 12 Amperes | Includes 50 to 50a

219800518

Unavailable

50a

Battery Bolt Kit

219800485

$5.19

Holding Strap

293850112

$14.27

100

Voltage Regulator

710009688

$175.00

101

Hex. Flange Screw M6 X 16

210261650

$1.22

150

Starter Relay

278003012

$35.07

300

USB Outlet

219400510

$40.92

400

Terminal DESS One Wire

515179305

$60.42

410

Specialized Nut

278004274

$2.72

500

Passenger Footpeg Position Sensor

705601717

$30.00

600a

Dess Key, RF Type

710006336

$63.00

600b

Receptacle

705013894

$8.00

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

1200a

Shock Damper

710003279

$10.14

1202

VCM Module Protector

710005542

$8.00

2005

Hex. Flange Screw M6 X 16

210261640

$1.74

2020

Hex. Flange Screw M6 X 16

210261640

$1.74

2150

Starter Cable

710007463

$8.00

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561414

$1.55

2170

Hex. Elastic Stop Nut M6

232561600

$0.92

3000

Horn

710006157

$36.00

3006

Hex. Flange Screw M8 X 20

207682046

$1.82

3007

Hex. Elastic Flange Nut M8

233281416

$1.25

4010

Connector Plug

710004904

$8.55

4360

Front Electronic Component Support

710007891

$22.00

4370

Hex. Flange Screw M6 X 16

210261650

$1.22

4380

Grommet

705003264

$3.43

4390

Panel Nut M6 X 1.0

250100208

$1.07

8325

Brake Switch | Not Shown

710009604

$50.00

8800

Yaw Rate Sensor

710005658

$166.12

8802

Hex. Flange Screw M6 X 16

210261650

$1.22
