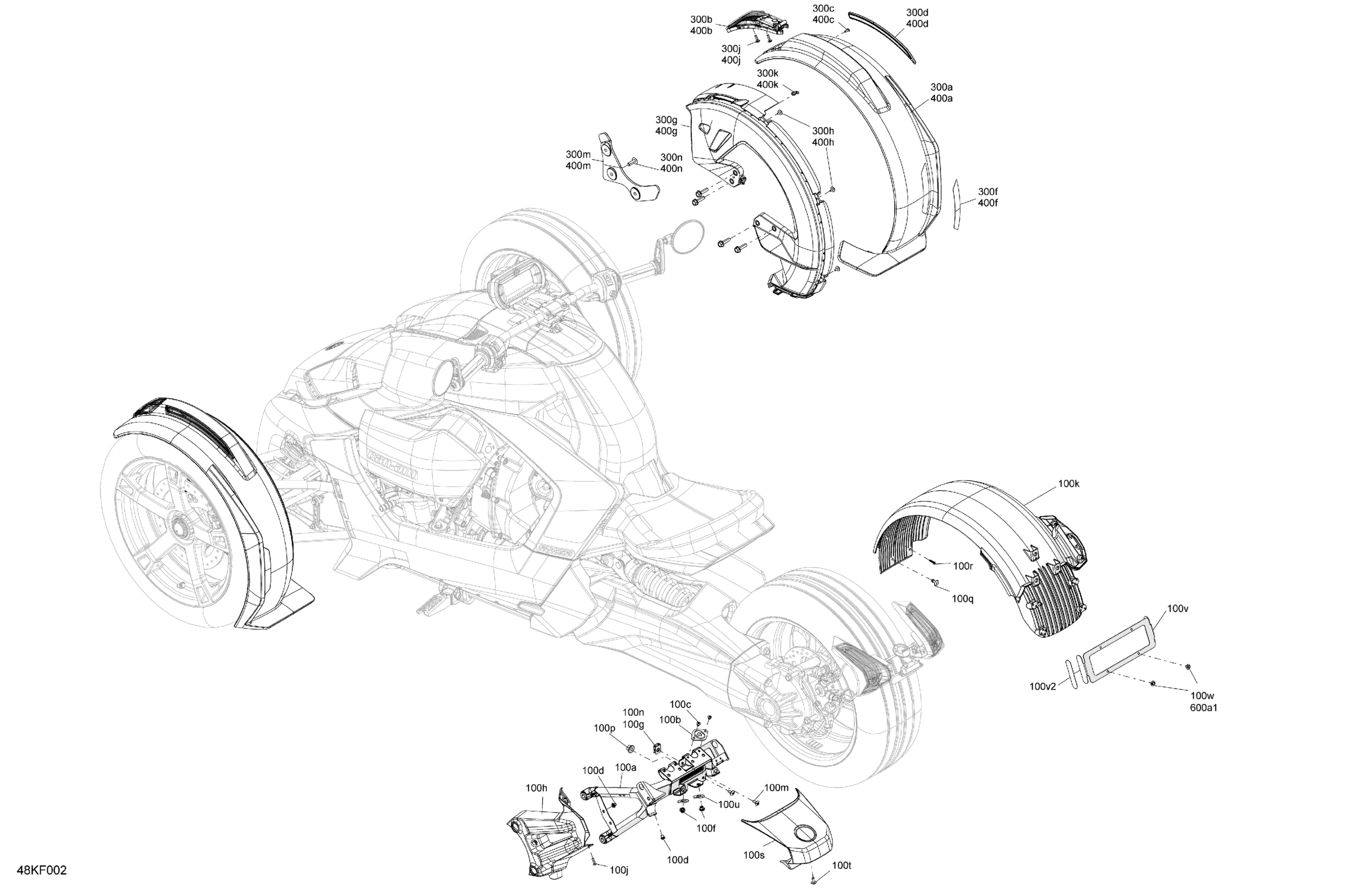

Can-Am International - RYKER - STD - 600 ACE - F1TB - Deep Black, 2026 Body - Fender Kit Diagram

Description

Price

100a

Rear Fender Support

705014612

$114.99

100b

Grommet Ass'y

705005055

$13.49

100c

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

100d

Insert M5 - 0.8

293450267

$4.59

100f

Insert Half Hex Body M6 x 1.0

250100199

$3.19

100g

Panel Nut M6 X 1.0

250100208

$1.46

100h

LH Fender Trim Support

705013621

$18.49

100j

Torx Truss Screw M5 X 16, T25

250000578

$2.11

100k

Deep Black, Rear Fender

705013618

$139.99

100m

Torx Truss M6X14

250000789

$5.39

100n

Panel Nut M6 X 1.0

250100208

$1.46

100p

Hex. Flange Nut M6

233061414

$1.68

100q

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

100r

Screw 8-32

250001097

$2.89

100s

Rear Fender Trim

706003151

$14.99

100t

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

100u

Flat Washer

224061121

$0.53

100v

License Plate Support Ass'y

706005434

$38.99

100v2

Amber Reflector

520002069

$4.99

100w

Screw M4 X 16

250000725

$3.49

300a

LH Front Fender

705010755

$204.99

300b

LH Front Position Light

710007008

$119.99

300c

Torx Truss PT K40 x 12

250001131

$2.11

300d

Yellow, LH Reflector

705012404

$18.49

300f

Rear Reflector, Front Fender

705012406

$4.59

300g

LH Front Fender Support

705017326

$114.99

300h

Plastite Screw M4 X 10

250000805

$2.11

300j

Torx Screw K50 X 16

250000720

$1.69

300k

Clip Bracket Connector (edge)

409210100

$2.09

300m

LH Front Fender Trim

705018433

$7.59

300n

Torx Truss PT K40 x 12

250001131

$2.11

400a

RH Front Fender

705010756

$139.99

400b

RH Front Position Light

710007009

$119.99

400c

Torx Truss PT K40 x 12

250001131

$2.11

400d

Yellow, RH Reflector

705012405

$18.49

400f

Rear Reflector, Front Fender

705012406

$4.59

400g

RH Front Fender Support

705017327

$114.99

400h

Plastite Screw M4 X 10

250000805

$2.11

400j

Torx Screw K50 X 16

250000720

$1.69

400k

Clip Bracket Connector (edge)

409210100

$2.09

400m

RH Front Fender Trim

705018434

$7.59

400n

Torx Truss PT K40 x 12

250001131

$2.11

600a1

Screw M4 X 16

250000725

$3.49
