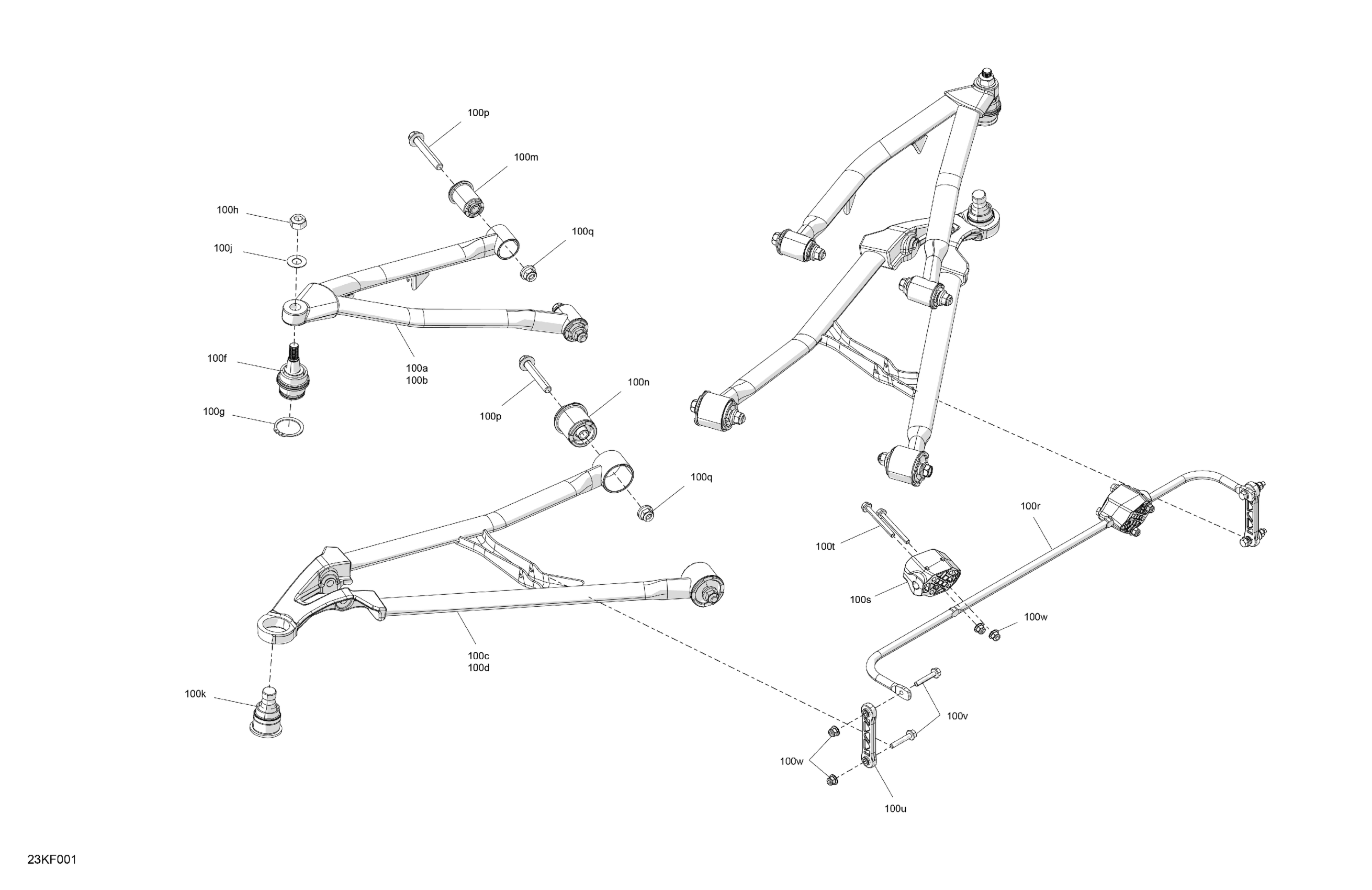

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Suspension - Front Diagram

Description

Price

100a

LH Upper Arm

706202644

$159.00

100b

RH Upper Arm

706202645

$159.00

100c

LH Lower Suspension Arm

706204700

$159.00

100d

RH Lower Suspension Arm

706204701

$159.00

100f

Ball Joint

706203147

$54.00

100g

Circlip

293370035

$2.55

100h

Hex Elastic Nut M12 X 1.25

232521464

$1.74

100j

Hardened Washer

706200281

$2.34

100k

Ball Joint

706202508

$42.00

100m

Upper Suspension Arm Bushing

706202549

$14.00

100n

Lower Suspension Arm Bushing

706203143

$14.00

100p

Hex. Flange Screw M10 X 65

207606556

$4.00

100q

Flange Elastic Nut M10

233201466

$2.63

100r

Sway Bar

706202710

$28.00

100s

Bushing

706204465

$9.00

100t

Hex. Flange Screw M6 X 60

207666044

$1.22

100u

Sway Bar Double Joint Link

505072204

$19.20

100v

Hex. Flange Screw M6 X 35

207663554

$1.74

100w

Hex. Flange Elastic Nut M6

233261494

$1.26
