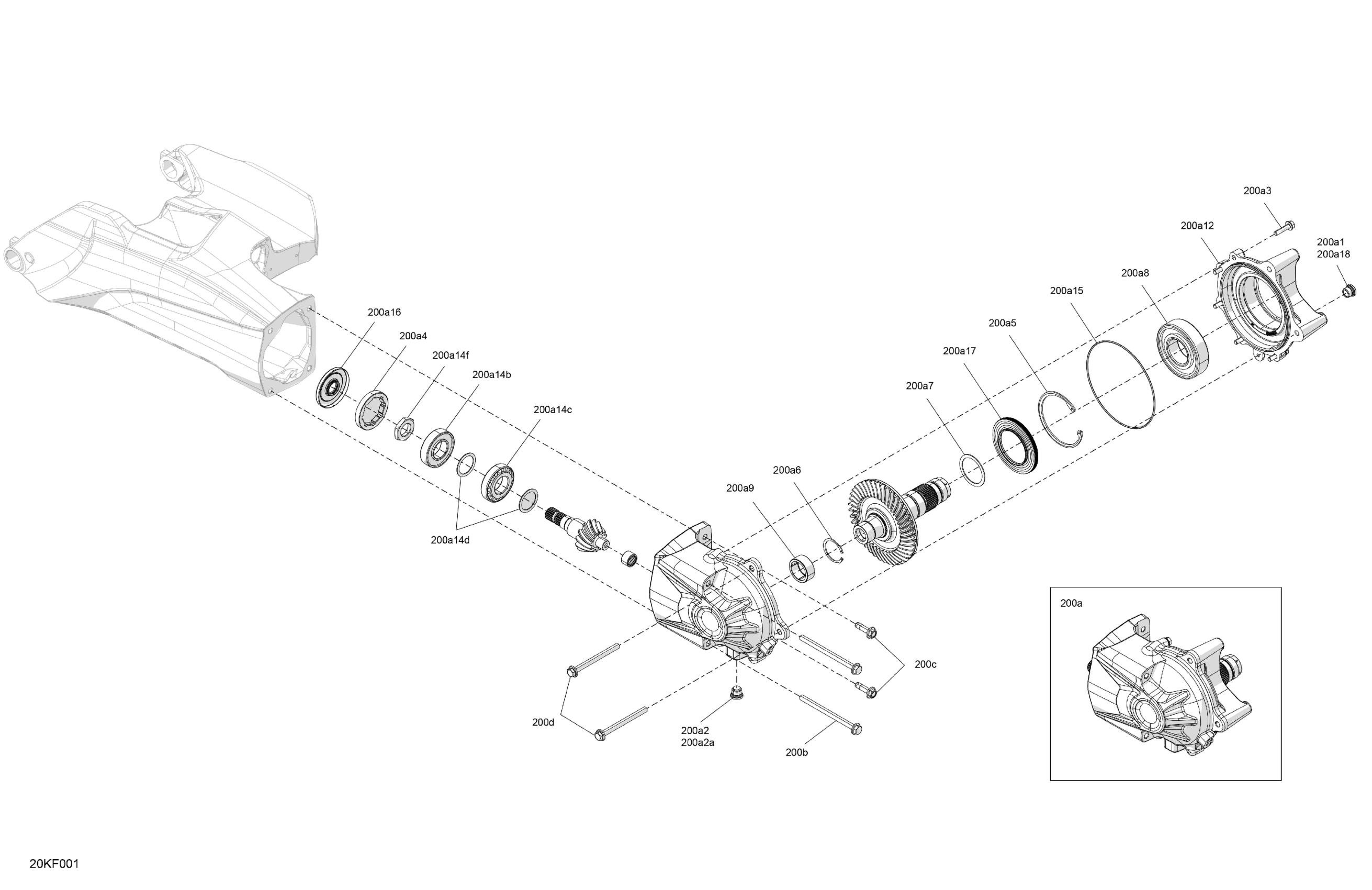

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Drive - Final Drive Unit Diagram

Description

Price

200a

Final Drive Unit | Includes 0a to 0a18

705503552

$1,420.49

200a1

Fill Level Plug

705501889

$20.49

200a2

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$19.99

200a2a

O-Ring

219800486

$9.21

200a3

Hex. Flange Screw M8 X 1.25 x 35

705502849

$14.99

200a4

Nut M75 X 1.5

705401819

$23.99

200a5

Retaining Ring OD 119mm

705502840

$20.99

200a6

Retaining Ring OD 50.5mm

705502841

$20.99

200a7

Shim 2.047po X 2.5po X 0.60po

705502843

$92.99

200a8

Ball Bearing

705502845

$103.99

200a9

Needle Bearing

705502852

$68.99

200a12

Rear Cover Machined

705502508

$232.99

200a14b

Ball Bearing

705502846

Unavailable

200a14c

Gear Helical 13 Teeth ass'y

219800476

Unavailable

200a14d

Gear Helical 13 Teeth ass'y

219800476

Unavailable

200a14f

Nut M27 X 1.5

705401820

$20.99

200a15

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

200a16

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

200a17

Oil Seal, Single Lip 68 X 110 X 8

705502847

$30.49

200a18

O-Ring

219800486

$9.21

200b

Hex. Flange Screw M10 X 140

230604056

$12.65

200c

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

200d

Hex. Flange Screw M10 X 115 Scotch G.

250001127

$7.86
