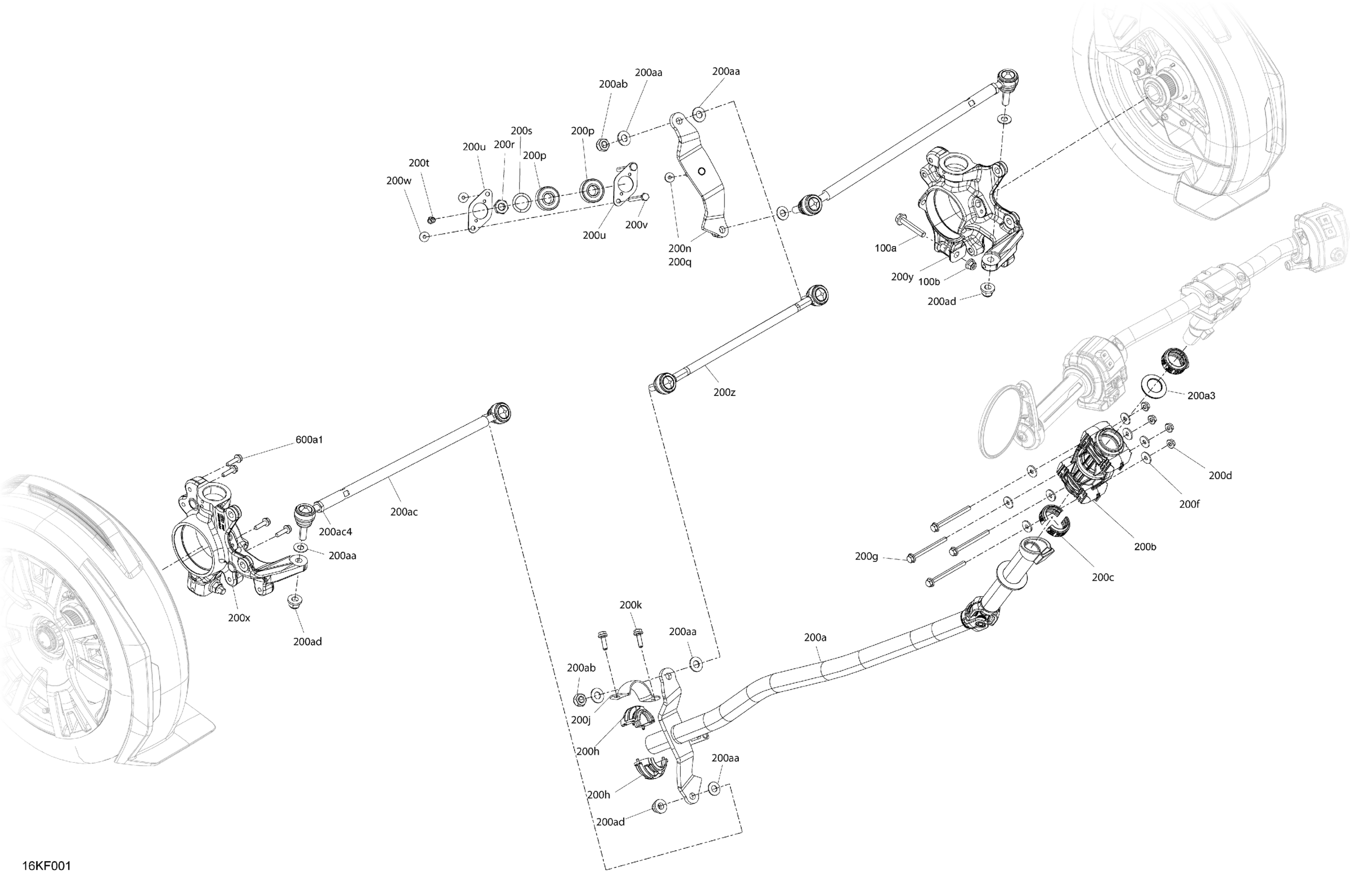

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Mechanic - Steering Column Diagram

Description

Price

600a1

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

100a

Hex. Flange Screw M10 X 55

207605554

$8.00

100b

Flange Elastic Nut M10

233201466

$2.63

200a

Steering Shaft | Included 10 to 10a

709401876

$200.00

200a3

Washer

709402509

Unavailable

200b

Steering Bushing

709403149

$10.00

200c

Upper Vibration Damper

709402920

$5.00

200d

Hex. Flange Nut M6

233161414

$1.74

200f

Flat washer M6

250200164

$0.83

200g

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

200h

Half Bushing

709402919

$4.00

200j

RH Lower Column Attachment

709401969

$5.00

200k

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

200n

Pitman Arm Kit | Included 150 to 150a

219800520

$34.00

200p

Bearing

709402450

$7.00

200q

Pitman Arm Kit | Included 150 to 150a

219800520

$34.00

200r

Hex. Jam Nut M12

250100216

$2.00

200s

Spring Washer

250001192

$1.00

200t

Sensor Sleave

709401527

$3.00

200u

Sensor Support

709402096

$4.00

200v

Hex. Screw M6 X 65

207066544

$0.46

200w

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

200x

LH Knuckle

709401922

$180.00

200y

RH Knuckle

709401923

$180.00

200z

Tie Rod Ass'y

709401954

$116.00

200aa

Washer

506152582

$4.42

200ab

Elastic Flange Nut M10

232501416

$1.25

200ac

Tie Rod Ass'y | Included 300 to 300a

709401953

$116.00

200ac4

RH Threaded Hex. Jam Nut M10

732610010

$0.72

200ad

Hex. Flange Elastic Nut M10

250100165

$0.70
