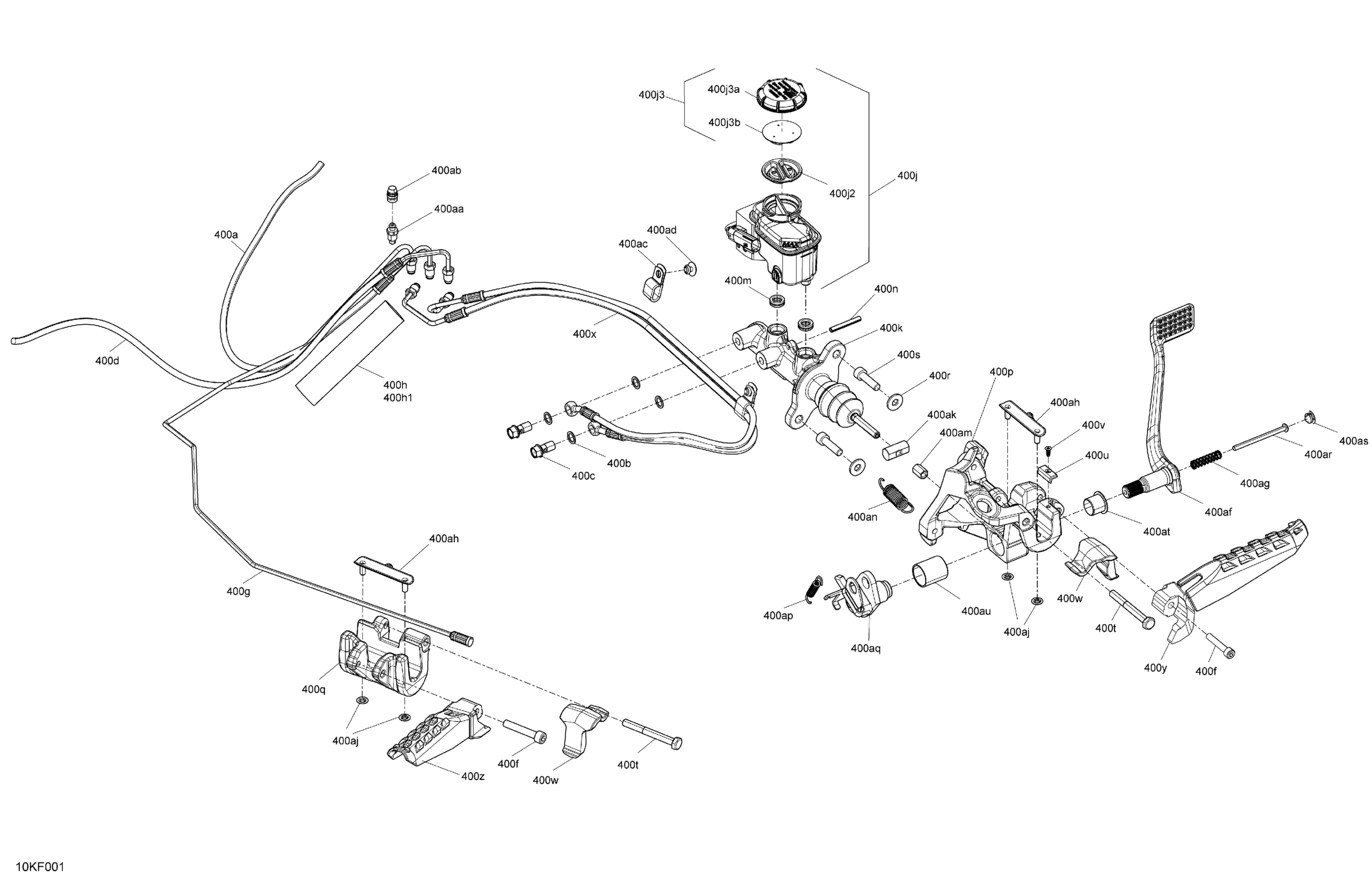

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Mechanic - Brakes Diagram

RH Front Caliper Hose

705601559

$78.00

Copper Washer

705601628

$4.34

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

LH Front Caliper Hose

705601560

$78.00

Socket Head Screw M8 x 45, Scotch Grip

250000988

$1.00

Rear Caliper Hose

705601561

$78.00

Tubing 25 MM 1000MM Long

219704402

$12.69

Tubing 25 MM 1000MM Long

219704402

$12.69

Brake Fluid Reservoir Ass'y | Included 400j to 400j3

705601918

$71.00

Rubber Diaphragm (seal)

705601610

$18.00

Brake Reservoir Cap Assembly | Includes Anti-Friction Washer

219800473

$2.00

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

Master Cylinder Tandem Brake

705601580

$185.00

Seal Master Cylinder

705601715

$1.00

Spring Pin 5.3MM x 40MM

705601716

$1.00

RH Caliper Slider

705013422

$71.00

LH Caliper Slider

705013423

$71.00

Washer

506151245

$0.91

Screw-Socket Cap S.Grip M8 X 30

250001117

$2.00

Hex. Screw M8 X 70

207087044

$1.73

Sliding Block

705017928

$1.00

Torx Cutting Screw, M4 X 10

250000453

$4.00

Slider Clamp

705011404

$41.00

Hose Master Cylinder

705601562

$99.00

Deep Black, RH Footrest

705013464

$39.00

Deep Black, LH Footrest

705013465

$39.00

Bleeder Screw

705600502

$11.06

Bleeder Bolt Cap

705601190

$4.28

Open Clamp

515175507

$1.47

Pop Rivet 3/16"

390406500

$0.70

Deep Black, Brake Pedal

705602171

$105.00

Brake Pedal Spring

705601583

$2.00

Footrest Pad Ass'y

705017927

$4.00

Pressure Nut

250100163

$1.72

Socket Push Rod

705601585

$15.00

Jam Nut M8

705601586

$7.00

Spring

705006533

$18.00

Compression Spring

705602243

$3.00

Rocker Ass'y

705601600

$36.00

Hex. Screw M5 X 70

205457044

$4.00

Black, Dart 10 mm

293730060

$4.42

Plain Bearing DIA. 18 MM, Plastic

709402254

$2.00

Plain Bearing DIA. 24 MM, Plastic

709402253

$6.00
