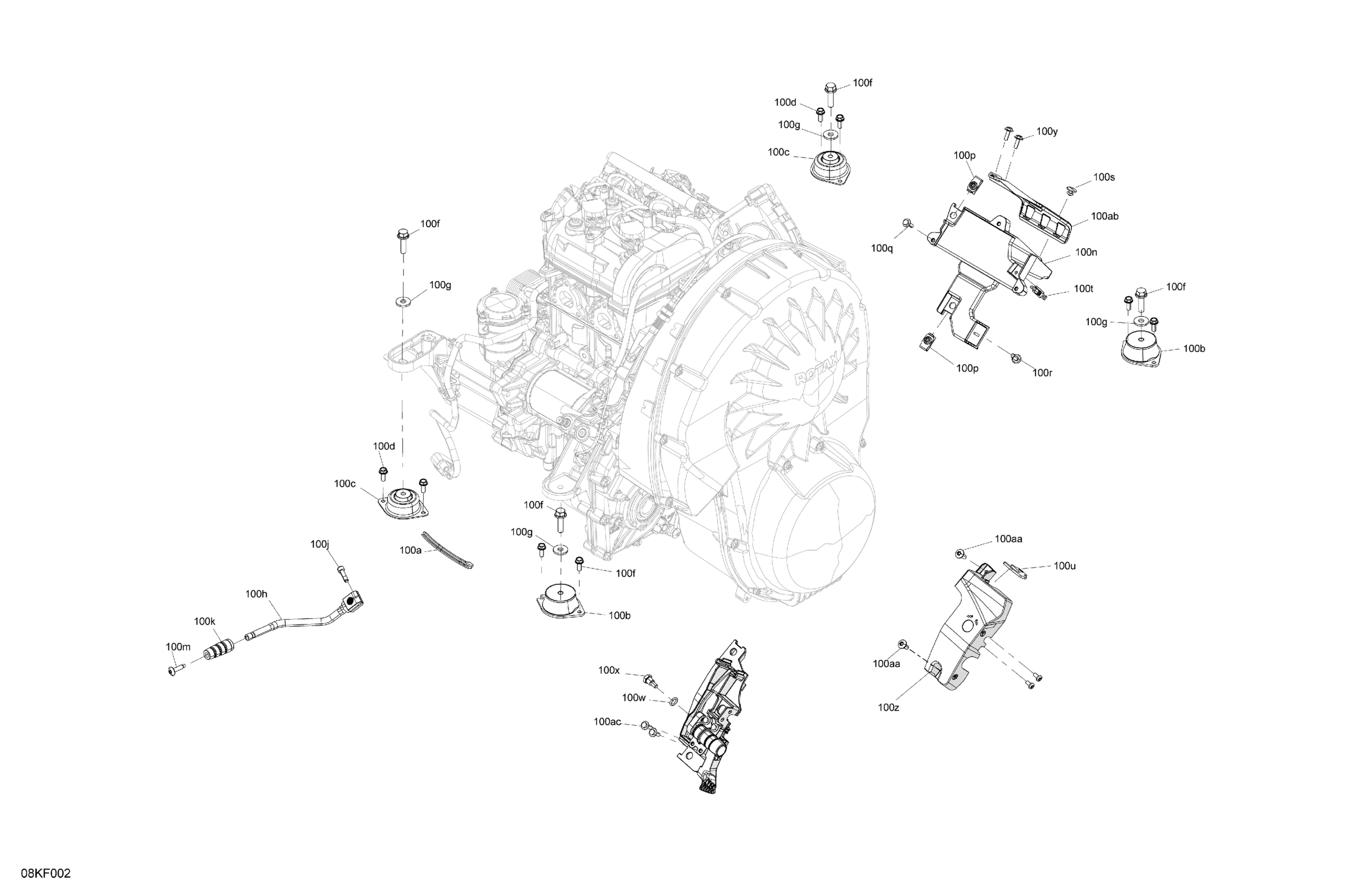

Can-Am International - RYKER - STD - 600 ACE - F1TB - Deep Black, 2026 Engine - System Diagram

Description

Price

100a

Trim 1000Mm Long

219704354

Unavailable

100b

Vibration Damper

512061508

Unavailable

100c

Vibration Damper

512061507

$43.00

100d

Hex. Flange Screw M6 X 16

210261650

Unavailable

100f

Hex. Flange Screw S.GRIP M8 X 30

207583054

Unavailable

100g

Flat Washer

279000336

Unavailable

100h

Shift Lever

707002045

$89.00

100j

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

100k

Shift Lever Tip

707003509

$9.00

100m

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

100n

Support Module

707002214

$10.00

100p

Panel Nut M6 X 1.0

250100198

Unavailable

100q

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

100r

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

100s

Pop Rivet 3/16"

390406500

Unavailable

100t

Connector Support

515179692

Unavailable

100u

Bracket

707002273

$3.00

100w

O-RING - Call your local BRP dealership

293300034

Unavailable

100x

Axle Pivot Arm

250400107

$13.00

100y

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

100z

Cover

707002241

$5.00

100aa

Torx Head Screw M6 X 16

250000717

Unavailable

100ab

Deflector

707002582

$16.00

100ac

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable
