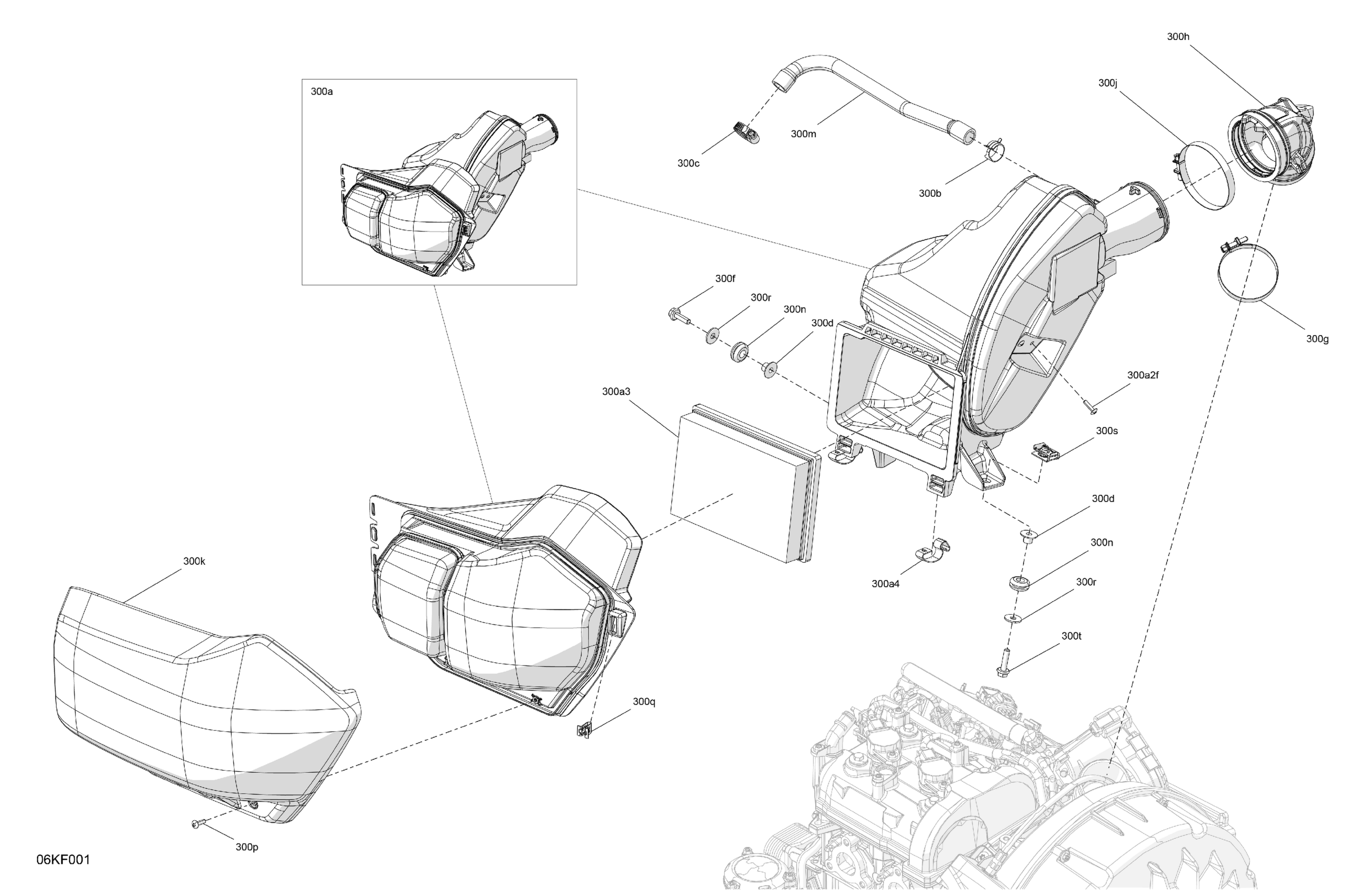

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Engine - LH Air Intake Diagram

Description

Price

300a

Intake Silencer Ass'y

707801071

$185.00

300a2f

Torx-Truss Pt K40 X 16

250000759

$1.74

300a3

Air Filter

707800306

$46.00

300a4

Cover Retainer

707800342

$7.69

300b

Spring Clamp

513033865

$4.00

300c

Tridon Gear Clamp

293650172

$2.68

300d

Bushing

709001288

$7.71

300f

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

300g

Gemi Clamp

293650229

$10.52

300h

Air Intake Silencer Adaptor

707800712

$34.00

300j

Gemi Clamp

508000150

$13.00

300k

Lateral Cover

707801015

$115.00

300m

Formed Hose

707800709

$17.00

300n

Grommet

709001197

$5.00

300p

Torx-Truss Pt K40 X 16

250000759

$1.74

300q

Edge Clip

517302785

$0.70

300r

Flat Washer

250200082

$0.35

300s

Panel Nut M6 X 1.0

250100208

$1.07

300t

Hex. Flange Screw M6 X 25

207662544

$0.53
