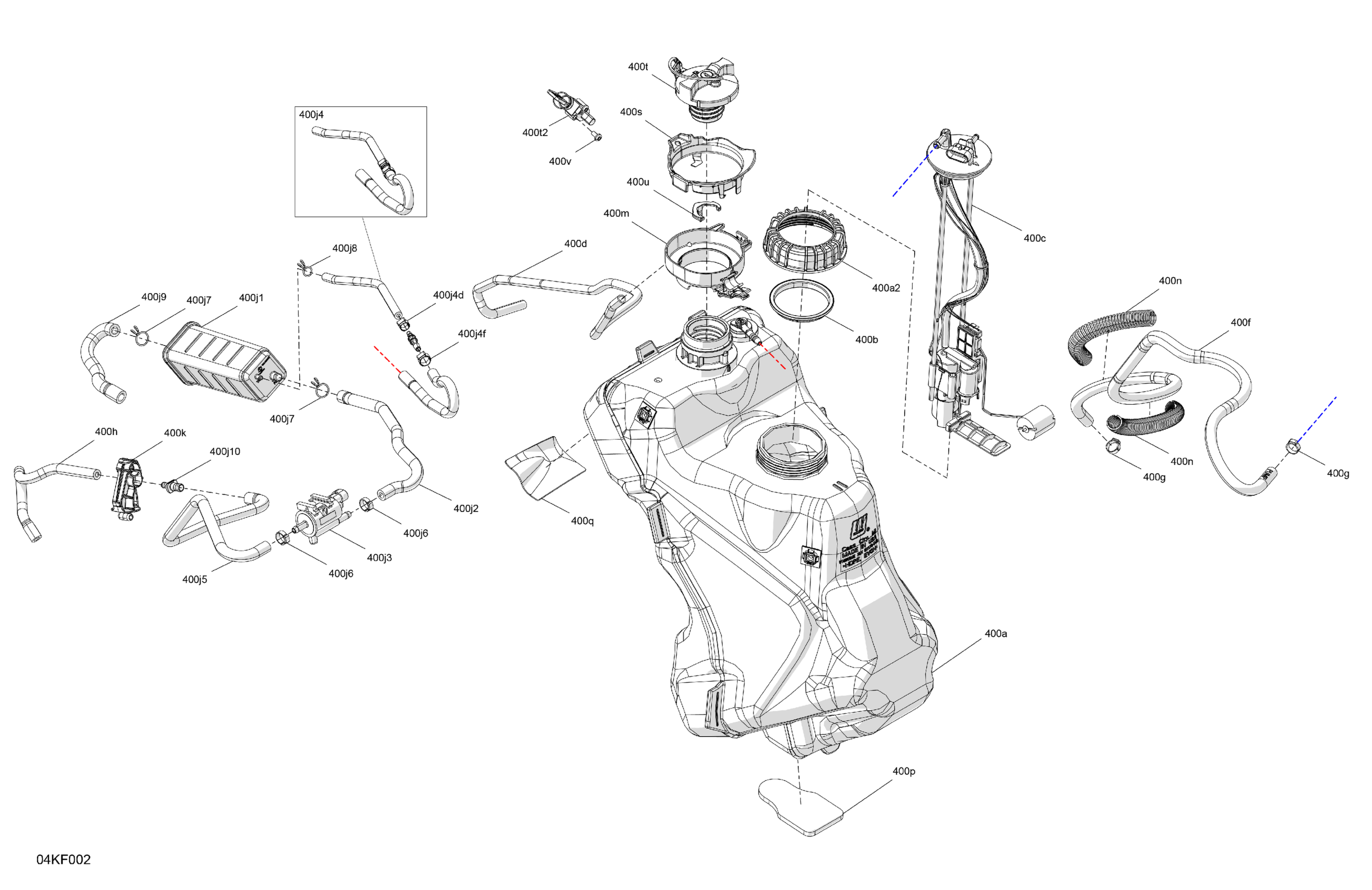

Can-Am International - RYKER - STD - 600 ACE - F1TB - Deep Black, 2026 Engine - Fuel Diagram

Description

Price

400a

Fuel Tank Ass'y | Includes 10 to 10b

709001436

$410.00

400a2

Fuel Pump Module Nut

709000328

Unavailable

400b

Seal

709000208

Unavailable

400c

Fuel Pump Module 2021-2026 | Includes 400c to 400c1

709001261

$341.00

400c1

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

Unavailable

400d

Polyurethane Hose 1000Mm Long

219704391

Unavailable

400f

Hose

709001579

$46.00

400g

Crimp Clamp, 15.3-706R

293650047

Unavailable

400h

Hose

709001580

$34.00

400j1

Vapor Canister

709001217

Unavailable

400j2

Charcoal Canister Hose

709001582

$34.00

400j3

Bleed Selenoid Valve

709000991

Unavailable

400j4

Charcoal Canister Hose Ass'y | Includes 400j4 to 400j4f

709001584

$41.00

400j4d

Oetiker Clamp | Europe

293650044

Unavailable

400j4f

Oetiker Gear Clamp

293650025

Unavailable

400j5

Charcoal Canister Hose

709001583

$36.00

400j6

Crimp Clamp, 15.3-706R

293650047

Unavailable

400j7

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

Unavailable

400j8

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

Unavailable

400j9

Hose Fuel Vapor

709000959

$16.00

400j10

Flow Restrictor Pipe Fitting

293710213

$6.00

400k

Hose Support

709001408

$13.00

400m

Anchorage Support

709001275

$15.00

400n

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

400p

Rubber Pad

709001087

$14.00

400q

Tank Protector

709001115

$4.00

400s

Trim

709001202

$15.00

400t

Upper Latch Kit

219401313

$85.00

400t2

Padlock with Key

707000666

Unavailable

400u

Deflector

709001263

$16.00

400v

Socket Head Screw M5 X 10

205951046

Unavailable
