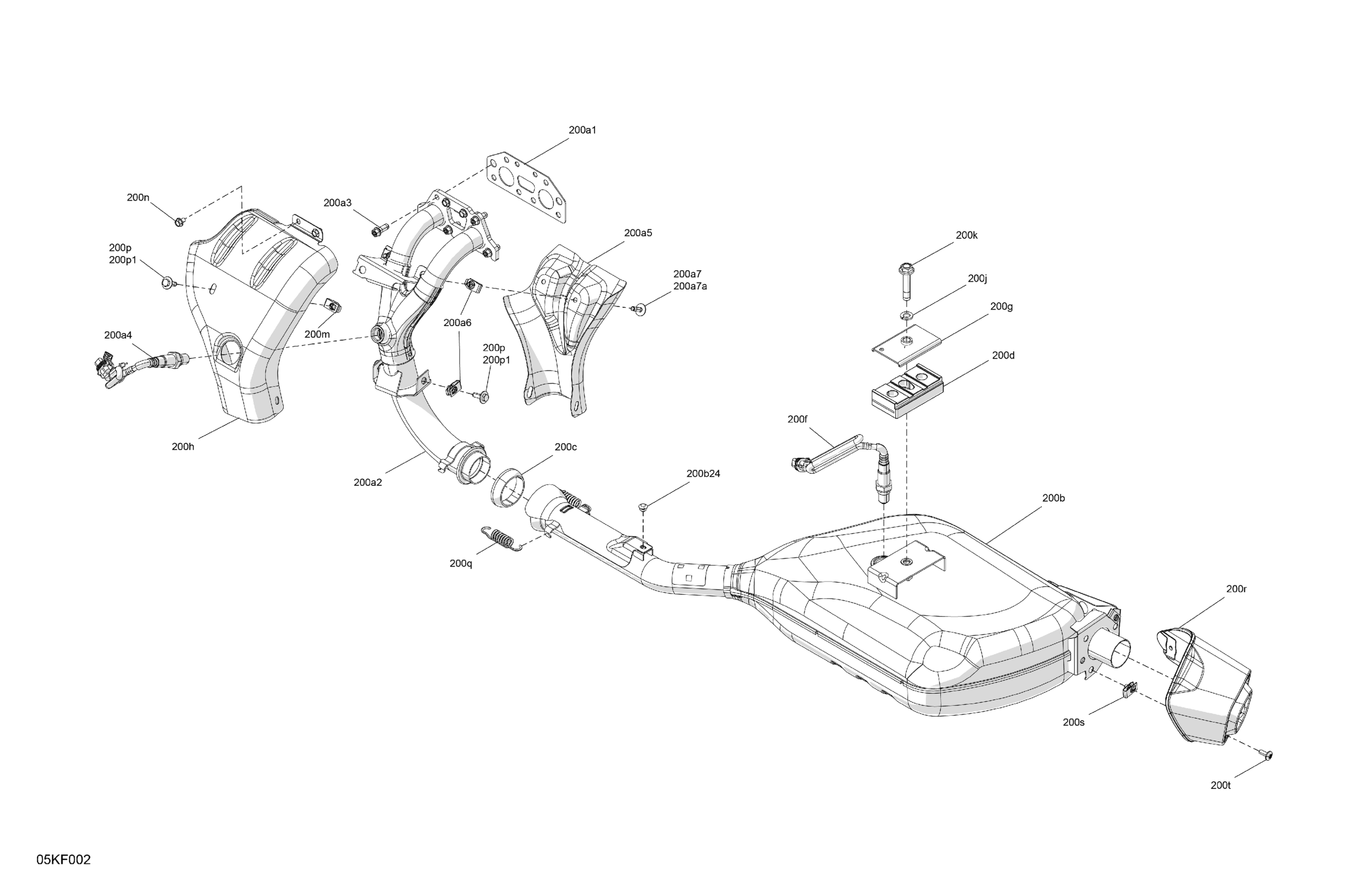

Can-Am International - RYKER - STD - 600 ACE - F1TB - Deep Black, 2026 Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707601939

$8.00

200a2

Exhaust Manifold

707601938

$155.00

200a3

Hex. Flange Screw M8 X 20

250001089

$1.00

200a4

Oxygen Sensor

707600872

Unavailable

200a5

Heat Shield

707604131

$41.00

200a6

Panel Nut M6 X 1.0

250100198

Unavailable

200a7

Hex Screw M6 X 20

250000965

Unavailable

200a7a

Not Available As Spare Parts

XXX

Unavailable

200b

Exhaust Muffler | Includes 200b to 200b30

707603437

$1,070.00

200b24

Rivet Ornit 6,5 X 10.5

293150264

Unavailable

200c

Exhaust Gasket

707601033

Unavailable

200d

Vibration Damper

707603448

$15.00

200f

Oxygen Sensor

707600872

Unavailable

200g

Rear Upper Exhaust Support

707603884

$18.00

200h

Heat Shield

707604129

$41.00

200j

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

200k

Hex. Flange Screw M10 X 50

250001079

$2.00

200m

Panel Nut M6 X 1.0

250100198

Unavailable

200n

Hex. Forming Screw M6 X 10

210261050

Unavailable

200p

Hex Screw M6 X 20

250000965

Unavailable

200p1

Not Available As Spare Parts

XXX

Unavailable

200q

Spring

514055198

Unavailable

200r

Carbon Black, Muffler End Piece

707602404

$24.00

200s

Panel Nut M6 X 1.0

250100198

Unavailable

200t

Torx Truss Screw M6 X 16

250000348

Unavailable
