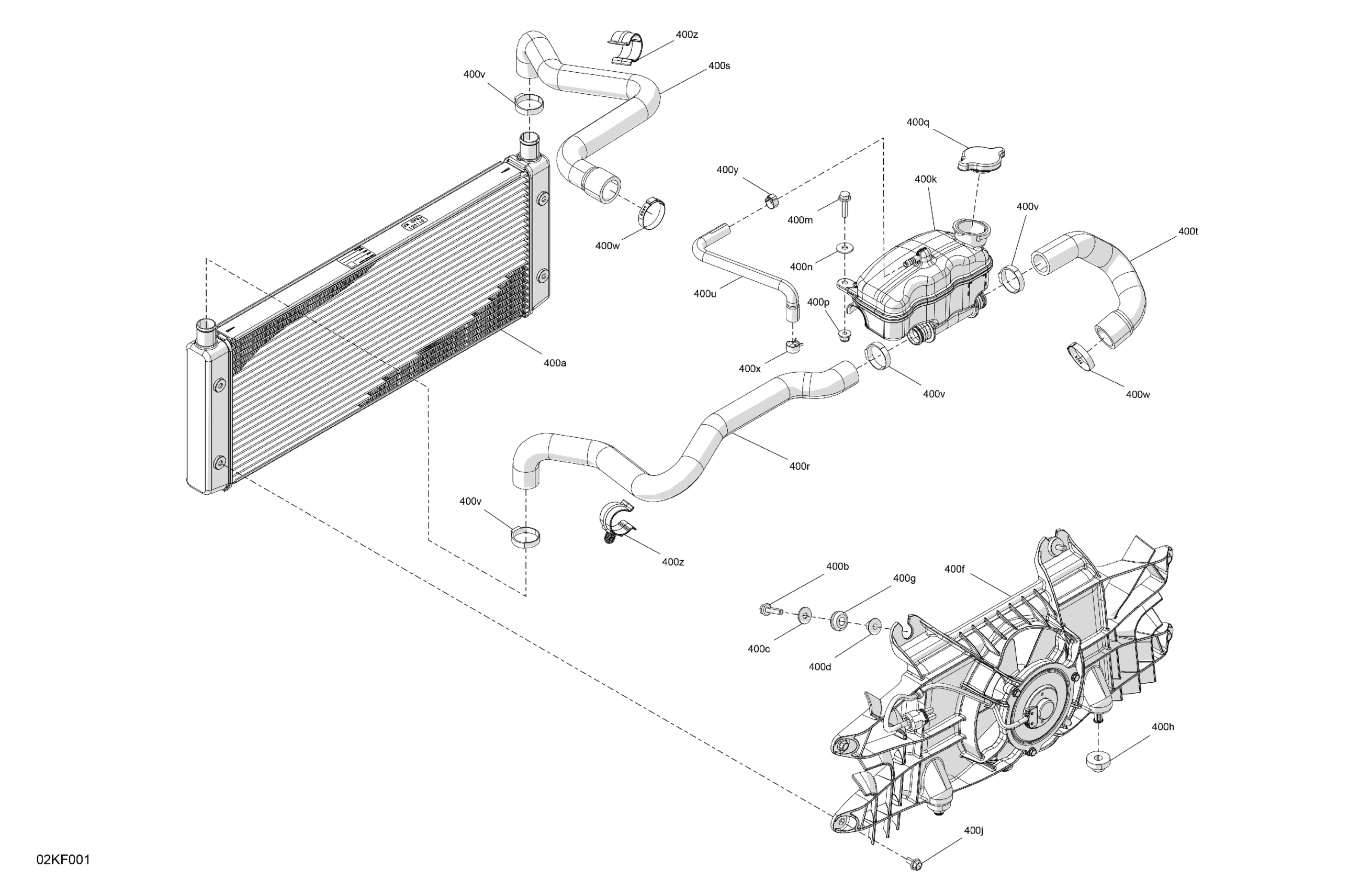

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 Engine - Cooling Diagram

Description

Price

400a

Radiator

709200724

$350.00

400b

Hex. Flange Screw M6 X 25

207662534

Unavailable

400c

Flat Washer

250200082

Unavailable

400d

Bushing

709001288

Unavailable

400f

Fan Ass'y With Shroud

709200719

$220.00

400g

Overmolded Grommet

293720130

Unavailable

400h

Grommet

709200948

Unavailable

400j

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

400k

Coolant Tank

709200963

$44.00

400m

Hex. Flange Screw M6 X 25

207662534

Unavailable

400n

Flat Washer

250200082

Unavailable

400p

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

400q

Radiator Pressure Cap

709200207

Unavailable

400r

Formed Radiator Hose

709201467

$14.00

400s

Formed Radiator Hose

709201468

$33.00

400t

Hose

709201471

$14.00

400u

Hose

709201473

$14.00

400v

Crimp Clamp

293650331

Unavailable

400w

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

400x

Universal Spring Clamp

513033029

Unavailable

400y

Oetiker Clamp

293650046

Unavailable

400z

Retainer

275500526

Unavailable
