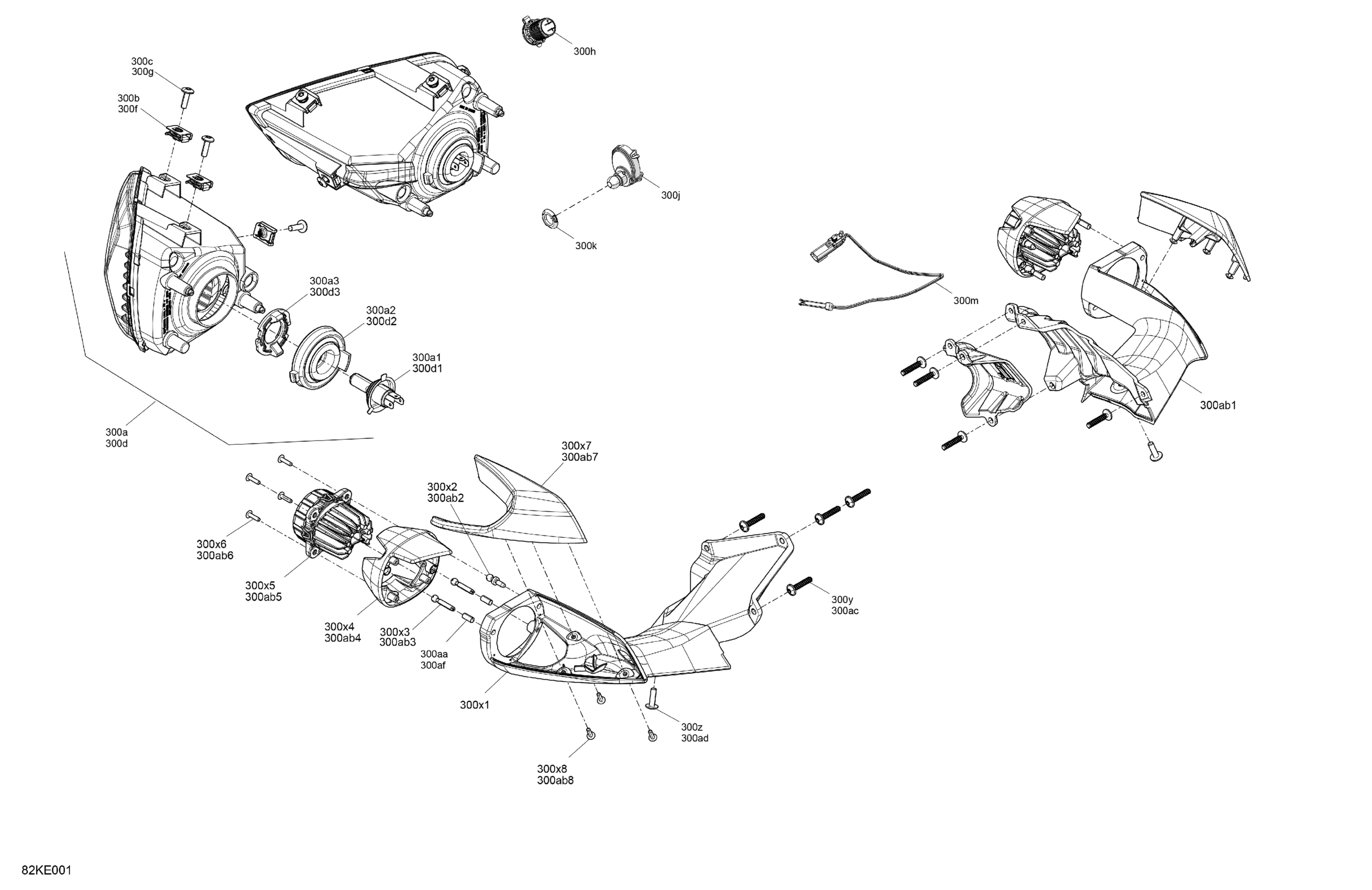

Can-Am International - RYKER - STD - 600 ACE - F1SB - Deep Black, 2025 Electric - Headlights Diagram

Description

Price

300a

LH Headlight | Includes 300a to 300a3

710008173

$154.99

300a1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

300a2

Rubber Cap Protector

219800457

$4.09

300a3

Bulb Support

219800458

$2.49

300b

Panel Nut M6 X 1.0

250100208

$1.46

300c

Torx Screw M6 X 20

250000722

$1.68

300d

RH Headlight | Includes 300d to 300d3

710008174

$154.99

300d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

300d2

Rubber Cap Protector

219800457

$4.09

300d3

Bulb Support

219800458

$2.49

300f

Panel Nut M6 X 1.0

250100208

$1.46

300g

Torx Screw M6 X 20

250000722

$1.68

300h

USB Outlet

219400510

$42.99

300j

Terminal DESS One Wire

515179305

$74.99

300k

Specialized Nut

278004274

$3.28

300m

Passenger Footpeg Position Sensor

705601717

$29.99

300x1

LH Headlamp Support | Includes 300x1 to 300x1a

705012655

$72.99

300x2

Ball Joint

705016154

$6.29

300x3

Ball Joint

705016155

$14.49

300x4

LH Mobile Support

705016397

$6.49

300x5

Low Beam Ass'y

710006007

$349.99

300x5a

Halogen Bulb

415129249

$41.49

300x6

Torx-Truss Pt K40 X 16

250000759

$2.11

300x7

LH Cover

705013632

$20.99

300x8

Torx-Truss Pt K40 X 16

250000759

$2.11

300y

Screw PT K60 X 30

250000949

$2.11

300z

Torx Screw M6 X 20

250000722

$1.68

300aa

Cap

515176370

$4.69

300ab1

RH Headlamp Support | Includes 300ab1 to 300ab1a

705012656

$72.99

300ab2

Ball Joint

705016154

$6.29

300ab3

Ball Joint

705016155

$14.49

300ab4

RH Mobile Support

705016398

$6.49

300ab5

Low Beam Ass'y

710006007

$349.99

300ab5a

Halogen Bulb

415129249

$41.49

300ab6

Torx-Truss Pt K40 X 16

250000759

$2.11

300ab7

RH Cover

705013633

$20.99

300ab8

Torx-Truss Pt K40 X 16

250000759

$2.11

300ac

Screw PT K60 X 30

250000949

$2.11

300ad

Torx Screw M6 X 20

250000722

$1.68

300af

Cap

515176370

$4.69
