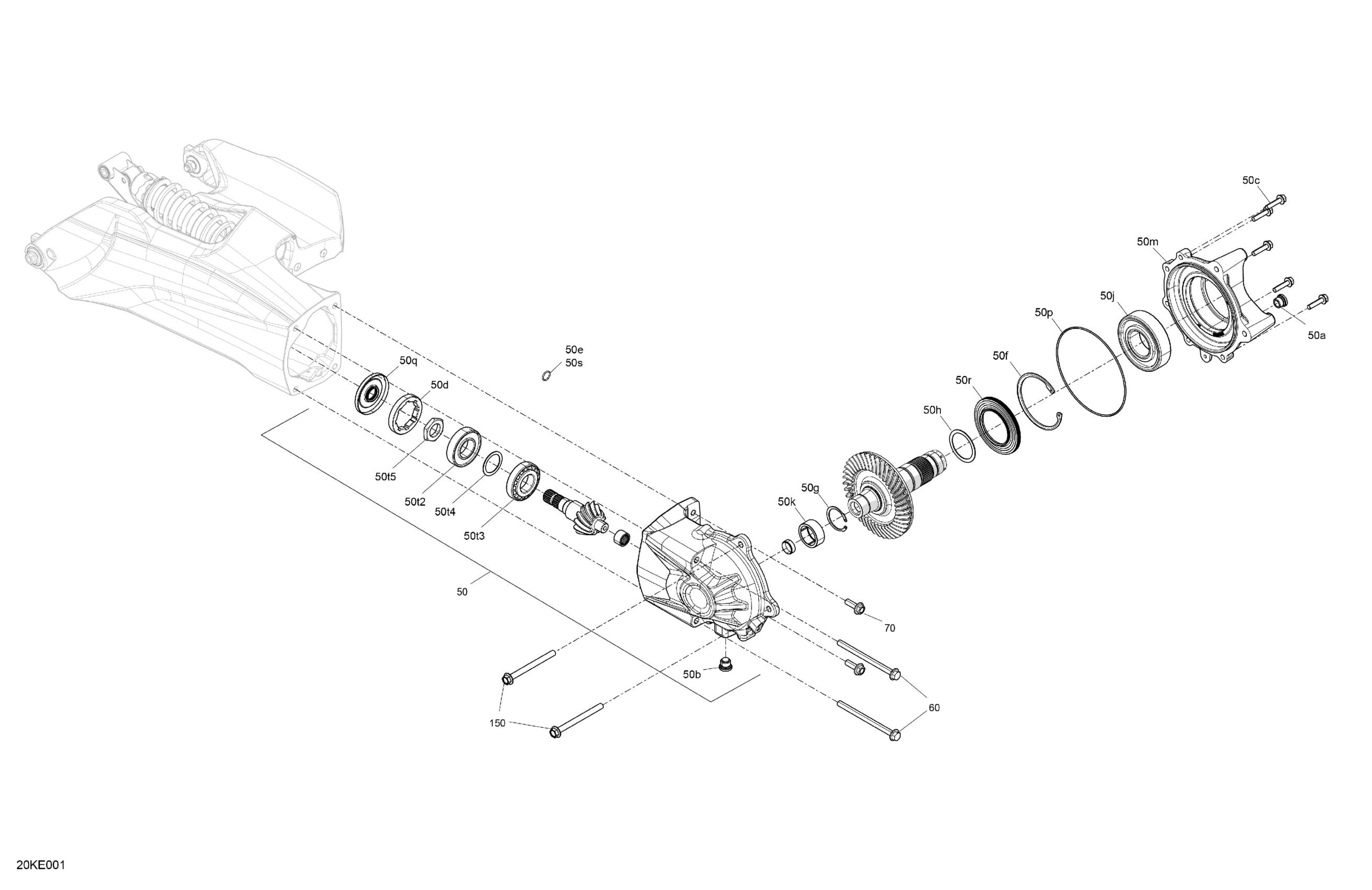

Can-Am RYKER - STD - 600 ACE - F1SC - CARB - Deep Black, 2025 Drive - Final Drive Unit Diagram

#

Description
Price

50

Final Drive Unit | Includes 0a to 0a18

705503552

$1,420.00

50a

Fill Level Plug

705501889

$18.43

50b

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$18.43

50c

Hex. Flange Screw M8 X 1.25 x 35

705502849

$15.00

50d

Nut M75 X 1.5

705401819

$23.05

50e

O-Ring

219800486

$9.22

50f

Retaining Ring OD 119mm

705502840

$21.00

50g

Retaining Ring OD 50.5mm

705502841

$21.00

50h

Shim 2.047po X 2.5po X 0.60po

705502843

$93.00

50j

Ball Bearing

705502845

$104.00

50k

Needle Bearing

705502852

$69.00

50m

Rear Cover Machined

705502508

$233.00

50t2

Gear Helical 13 Teeth ass'y

219800476

Unavailable

50t3

Gear Helical 13 Teeth ass'y

219800476

Unavailable

50t4

Gear Helical 13 Teeth ass'y

219800476

Unavailable

50t5

Nut M27 X 1.5

705401820

$23.05

50p

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

50q

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

50r

Oil Seal, Single Lip 68 X 110 X 8

705502847

$30.00

50s

O-Ring

219800486

$9.22

60

Hex. Flange Screw M10 X 140

230604056

$9.62

70

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.06

150

Hex. Flange Screw M10 X 115 Scotch G.

250001127

$8.00
