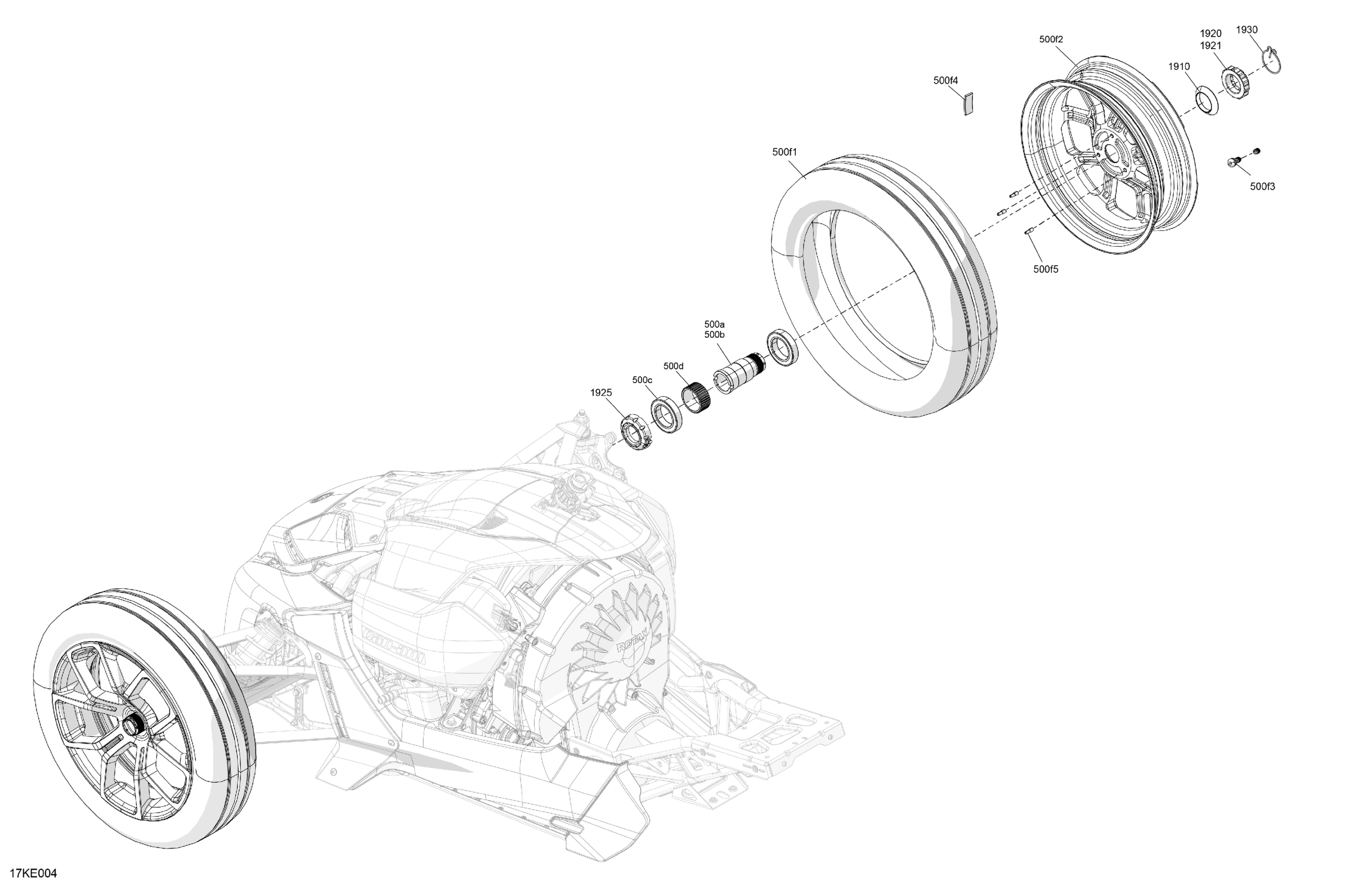

Can-Am RYKER - STD - 600 ACE - F1SC - CARB - Deep Black, 2025 Drive - Front Wheels Diagram

Description

Price

1910

Conical Support Ring

705401983

$17.59

1920

RH Specialized Nut M45 Ass'y

705403491

$59.99

1921

Wheel Nut M45

705402730

$31.99

1925

Hub Cap

705402677

$6.39

1930

External Retaining Ring

293370168

$2.32

500a

LH Front Wheel Axle

706204864

$78.49

500b

RH Front Wheel Axle

706204735

$76.99

500c

Ball Bearing

293350142

$34.99

500d

Tone Ring (trigger wheel) | Includes 60 to 60e

705601557

$38.99

500f1

Tire 145/60R16

705403877

$105.99

500f2

Platinum Silver, 16 Inch Rim

705403601

$389.99

500f3

Rim Valve With Cap

705400193

$8.69

500f4

Balancing Weight

705503182

$4.69

500f5

Dowel Pin

705403603

$4.09
