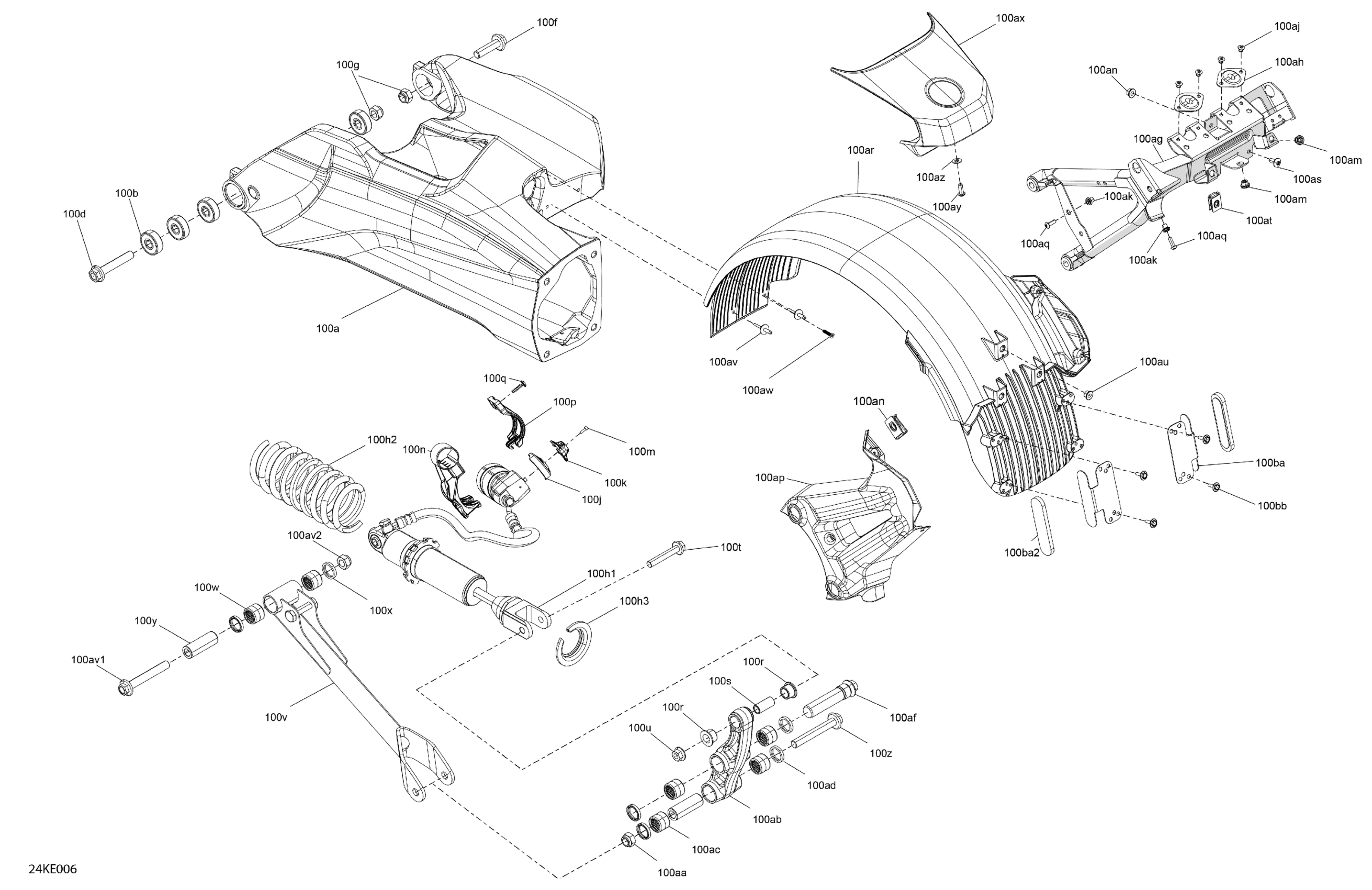

Can-Am International - RYKER - SPORT - 900 ACE - F5SB - Deep Black, 2025 Suspension - Rear Diagram

#

Description
Price

100av1

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100av2

Elastic Stop Nut M12

232521416

$1.69

100a

Swing Arm

706004488

$656.99

100b

Ball Bearing, ID 12, OD 37, L 12

706002649

$14.81

100d

Hex. Flange Screw M12 X 70

250000858

$3.80

100f

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$7.51

100g

Elastic Stop Nut M12

232521416

$1.69

100h1

Rear Adjustable Shock Absorber

706004665

$434.49

100h2

Compression Spring

706004535

$49.99

100h3

Spring Stopper

706000567

$15.99

100j

Gauge

706004533

$3.29

100k

Adjustment Button

706004415

$2.99

100m

Allen Screw M3 X 0.5 X 10

250000644

$2.11

100n

Support Shock Absorber Tank Interior

706003311

$4.19

100p

Ext Tank Support Shock Absorber

706004531

$4.19

100q

Torx Screw Truss Head K50X20 T20

250000760

$2.11

100r

Urethane Bushing

503189117

$8.19

100s

Spacer

706002678

$3.99

100t

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$4.50

100u

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

100v

Suspension Arm Lever, Primary

706002533

$158.99

100w

Bearing, Needles

706002965

$12.71

100x

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

100y

Axle, Suspenion Arm

706002534

$20.99

100z

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100aa

Elastic Stop Nut M12

232521416

$1.69

100ab

Suspension Arm Lever, Secondary

706202664

$158.99

100ac

Bearing, Needles

706002965

$12.71

100ad

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

100af

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$36.99

100ag

Rear Fender Support

705014612

$114.99

100ah

Grommet Ass'y

705005055

$13.49

100aj

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

100ak

Insert M5 - 0.8

293450267

$4.59

100am

Insert Half Hex Body M6 x 1.0

250100199

$3.19

100an

Panel Nut M6 X 1.0

250100208

$1.46

100ap

LH Fender Trim Support

705013621

$18.49

100aq

Torx Truss Screw M5 X 16, T25

250000578

$2.11

100ar

Deep Black, Rear Fender

705013618

$139.99

100as

Torx Truss M6X14

250000789

$5.39

100at

Panel Nut M6 X 1.0

250100208

$1.46

100au

Hex. Flange Nut M6

233061414

$1.68

100av

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

100aw

Screw 8-32

250001097

$2.89

100ax

Rear Fender Trim

706003151

$14.99

100ay

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

100az

Flat Washer

224061121

$0.53

100ba

License Plate Support Ass'y

706005434

$38.99

100ba2

Amber Reflector

520002069

$4.99

100bb

Screw M4 X 16

250000725

$3.49
