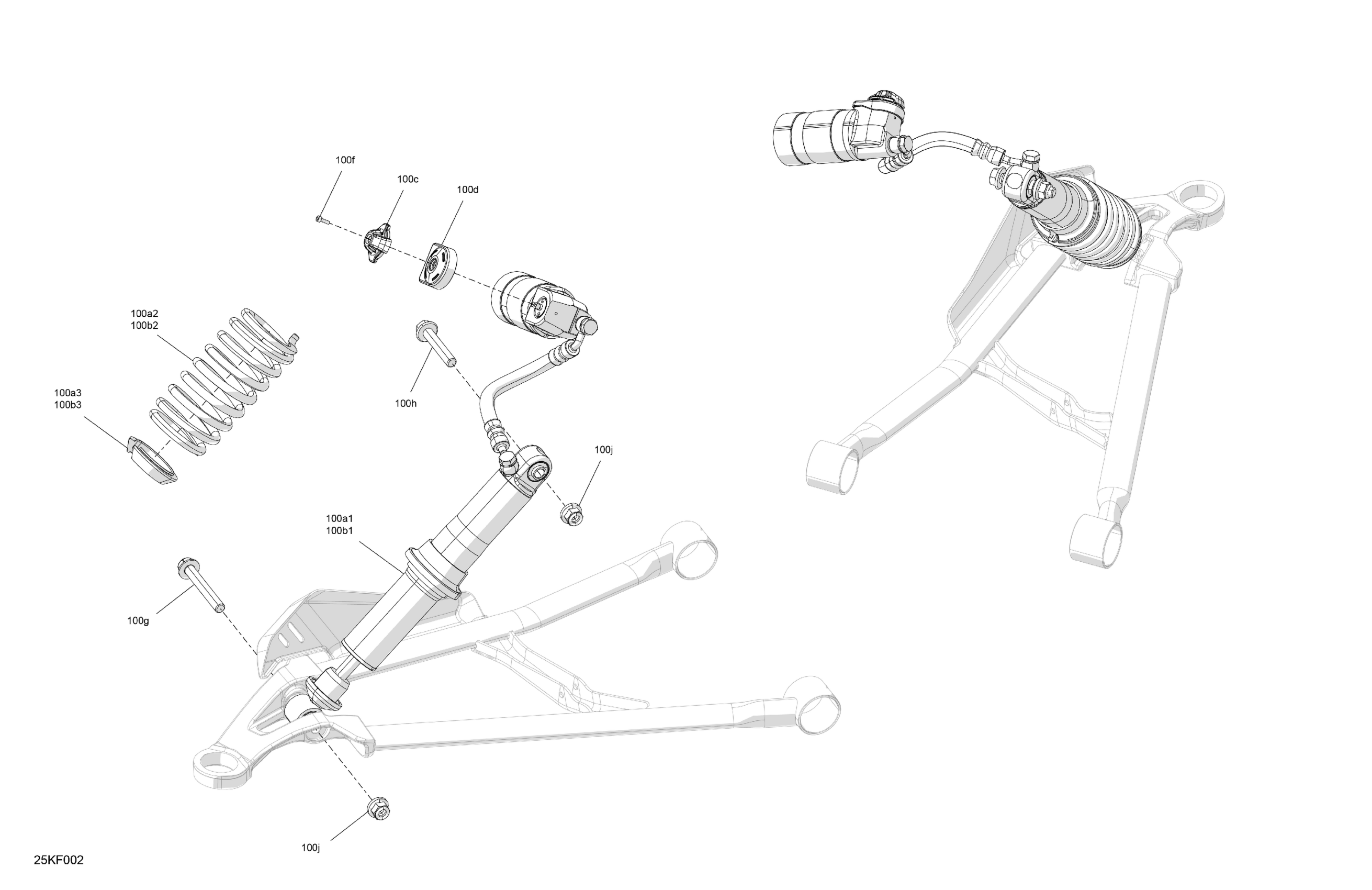

Can-Am RYKER - RALLY - 900 ACE - F3TA - CARB - Deep Black, 2026 Suspension - Front Shocks Diagram

Description

Price

100a1

LH Front Adjustable Shock Absorber

706004338

$434.49

100a2

Front Compression Spring

706204736

$64.49

100a3

Spring Stopper

503195241

$24.49

100b1

RH Front Adjustable Shock Absorber

706004512

$434.49

100b2

Front Compression Spring

706204736

$64.49

100b3

Spring Stopper

503195241

$24.49

100c

Adjustment Button

706004415

$2.99

100d

Gauge

706004533

$3.29

100f

Allen Screw M3 X 0.5 X 10

250000644

$2.11

100g

Hex. Flange Screw M10 X 70

207607056

$4.29

100h

Hex. Flange Screw M10 X 55

207605554

$7.62

100j

Flange Elastic Nut M10

233201466

$3.17
