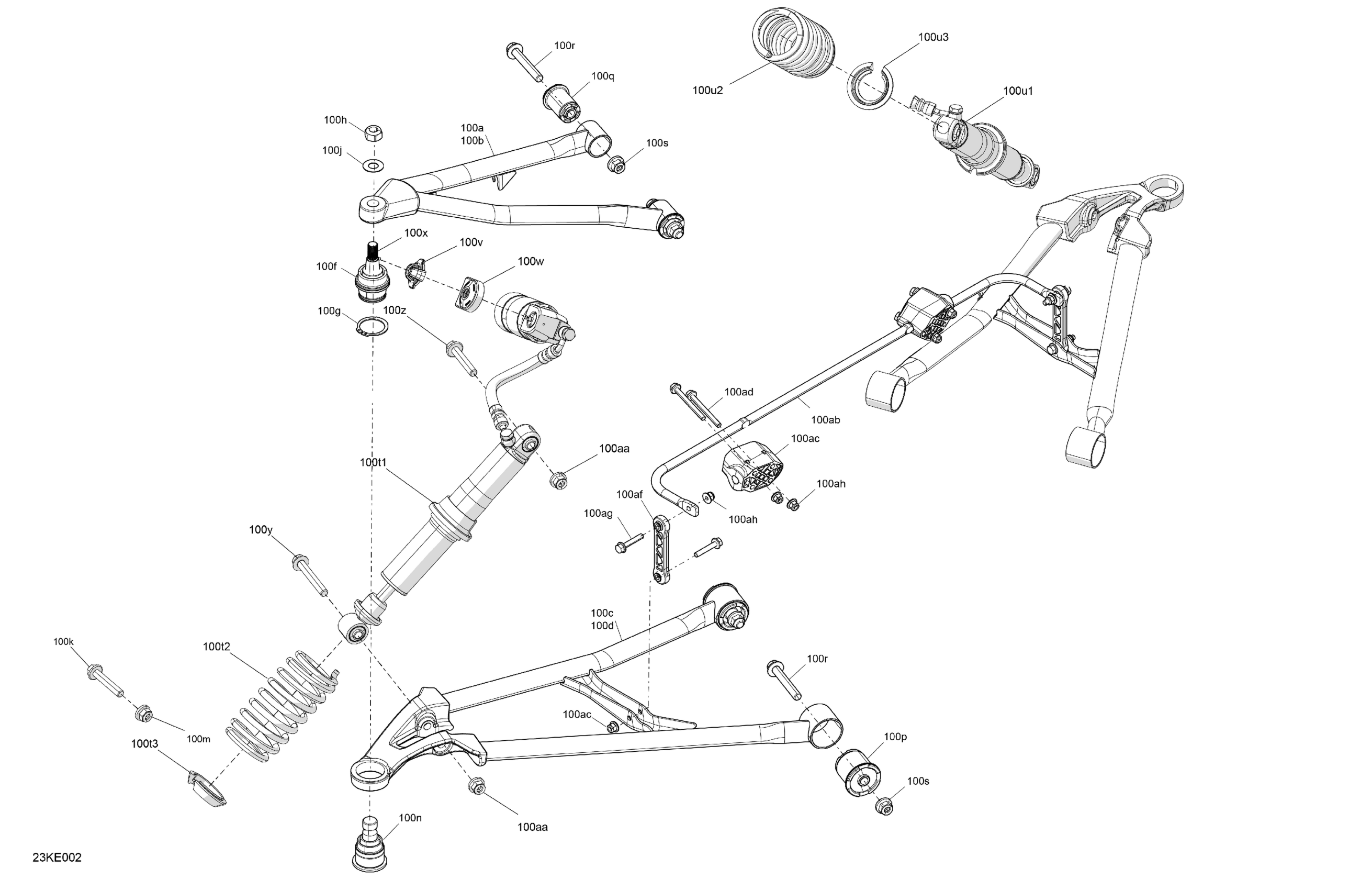

Can-Am RYKER - RALLY - 900 ACE - F3SA - Deep Black, 2025 Suspension - Front Diagram

Description

Price

100a

LH Upper Arm

706202644

$159.00

100b

RH Upper Arm

706202645

$159.00

100c

LH Lower Suspension Arm

706204614

$159.00

100d

RH Lower Suspension Arm

706204615

$159.00

100f

Ball Joint

706203147

$54.00

100g

Circlip

293370035

$2.55

100h

Hex Elastic Nut M12 X 1.25

232521464

$1.74

100j

Hardened Washer

706200281

$2.34

100k

Hex. Flange Screw M10 X 55

207605554

$8.00

100m

Flange Elastic Nut M10

233201466

$2.63

100n

Ball Joint

706202508

$42.00

100p

Lower Suspension Arm Bushing

706203143

$14.00

100q

Upper Suspension Arm Bushing

706202549

$14.00

100r

Hex. Flange Screw M10 X 65

207606556

$4.00

100s

Flange Elastic Nut M10

233201466

$2.63

100t1

LH Front Adjustable Shock Absorber

706004338

$434.00

100t2

Front Compression Spring

706204736

$64.00

100t3

Spring Stopper

503195241

$24.00

100u1

RH Front Adjustable Shock Absorber

706004512

$434.00

100u2

Front Compression Spring

706204736

$64.00

100u3

Spring Stopper

503195241

$24.00

100v

Adjustment Button

706004415

$3.00

100w

Gauge

706004533

$3.00

100x

Allen Screw M3 X 0.5 X 10

250000644

$1.74

100y

Hex. Flange Screw M10 X 70

207607056

$3.38

100z

Hex. Flange Screw M10 X 55

207605554

$8.00

100aa

Flange Elastic Nut M10

233201466

$2.63

100ab

Sway Bar

706202710

$28.00

100ac

Bushing

706204465

$9.00

100ad

Hex. Flange Screw M6 X 60

207666044

$1.22

100af

Sway Bar Double Joint Link

505072204

$19.20

100ag

Hex. Flange Screw M6 X 35

207663554

$1.74

100ah

Hex. Flange Elastic Nut M6

233261494

$1.26
