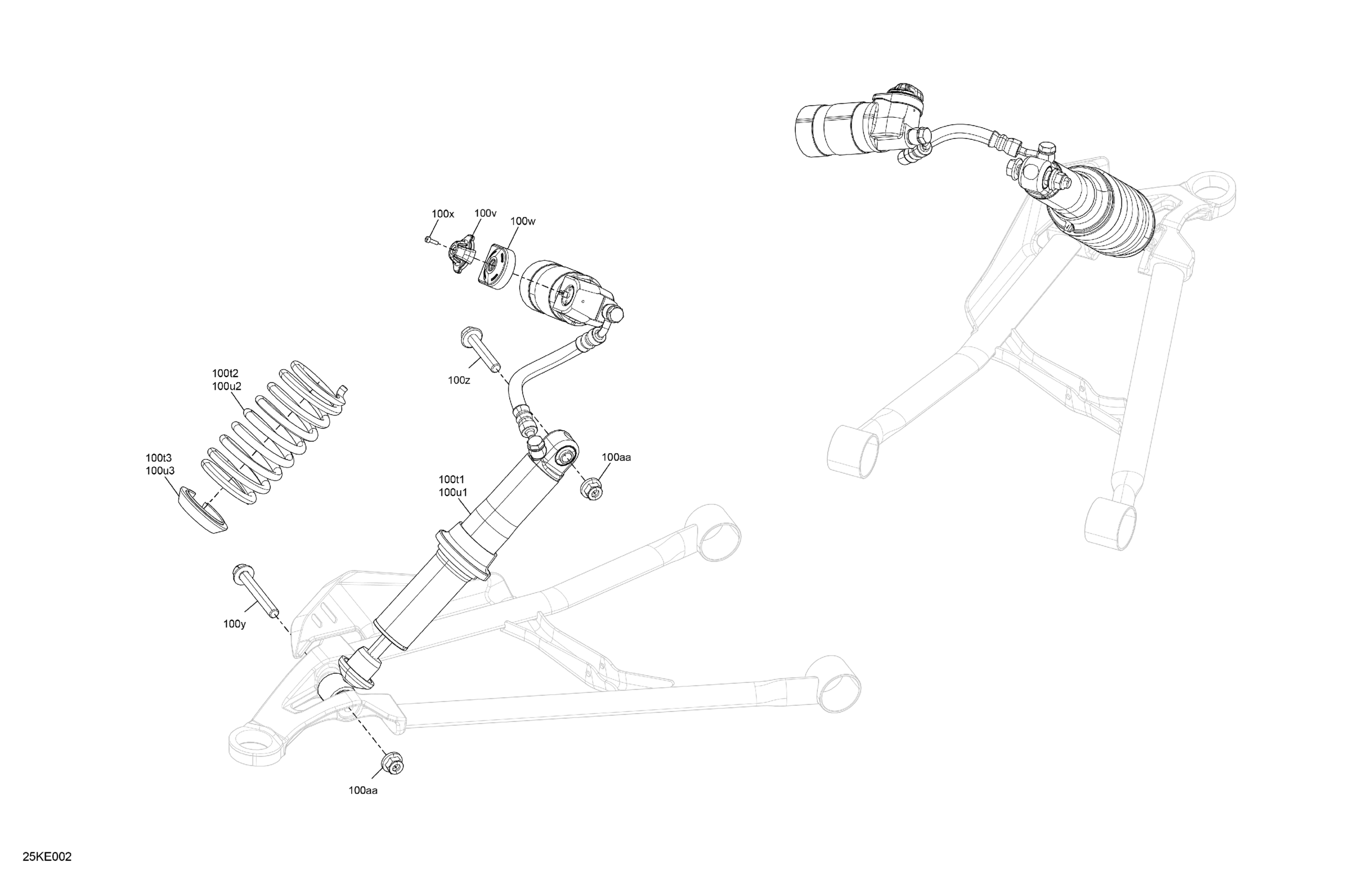

Can-Am RYKER - RALLY - 900 ACE - F3SA - Deep Black, 2025 Suspension - Front Shocks Diagram

Description

Price

100t1

LH Front Adjustable Shock Absorber

706004338

$434.00

100t2

Front Compression Spring

706204736

$64.00

100t3

Spring Stopper

503195241

$24.00

100u1

RH Front Adjustable Shock Absorber

706004512

$434.00

100u2

Front Compression Spring

706204736

$64.00

100u3

Spring Stopper

503195241

$24.00

100v

Adjustment Button

706004415

$3.00

100w

Gauge

706004533

$3.00

100x

Allen Screw M3 X 0.5 X 10

250000644

$1.74

100y

Hex. Flange Screw M10 X 70

207607056

$3.38

100z

Hex. Flange Screw M10 X 55

207605554

$8.00

100aa

Flange Elastic Nut M10

233201466

$2.63
