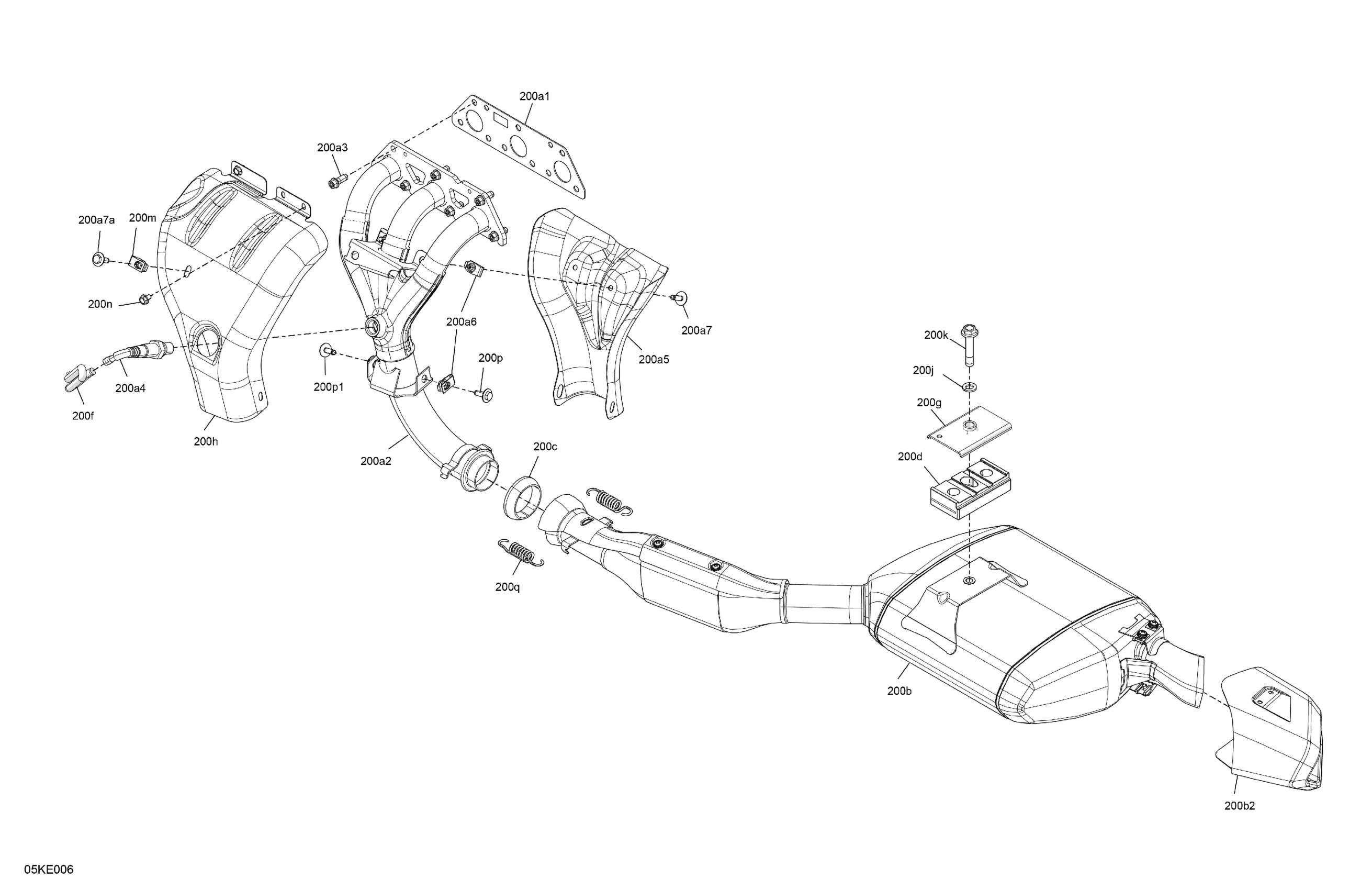

Can-Am International - RYKER - RALLY - 900 ACE - F3SB - Deep Black, 2025 Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707602002

$18.00

200a2

Exhaust Manifold

707602001

$155.00

200a3

Hex. Flange Screw M8 X 20

250001089

$1.00

200a4

Oxygen Sensor

707600872

$115.67

200a5

Deflector

707602267

$52.00

200a6

Panel Nut M6 X 1.0

250100198

$1.73

200a7

Hex Screw M6 X 20

250000965

$1.74

200a7a

Hex Screw M6 X 20

250000965

$1.74

200b

Exhaust Muffler Ass'y | Includes 200b to 200b2

707603818

$2,118.00

200b2

Exhaust Muffler Pipe

707603273

$657.00

200c

Exhaust Gasket

707601033

$13.29

200d

Vibration Damper

707603448

$15.00

200f

Oxygen Sensor

707600872

$115.67

200g

Rear Upper Exhaust Support

707603884

$18.00

200h

Deflector

707602312

$39.00

200j

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

200k

Hex. Flange Screw M10 X 50

250001079

$2.00

200m

Panel Nut M6 X 1.0

250100198

$1.73

200n

Hex. Forming Screw M6 X 10

210261050

$1.42

200p

Hex Screw M6 X 20

250000965

$1.74

200p1

Hex Screw M6 X 20

250000965

$1.74

200q

Spring

514055198

$6.20
