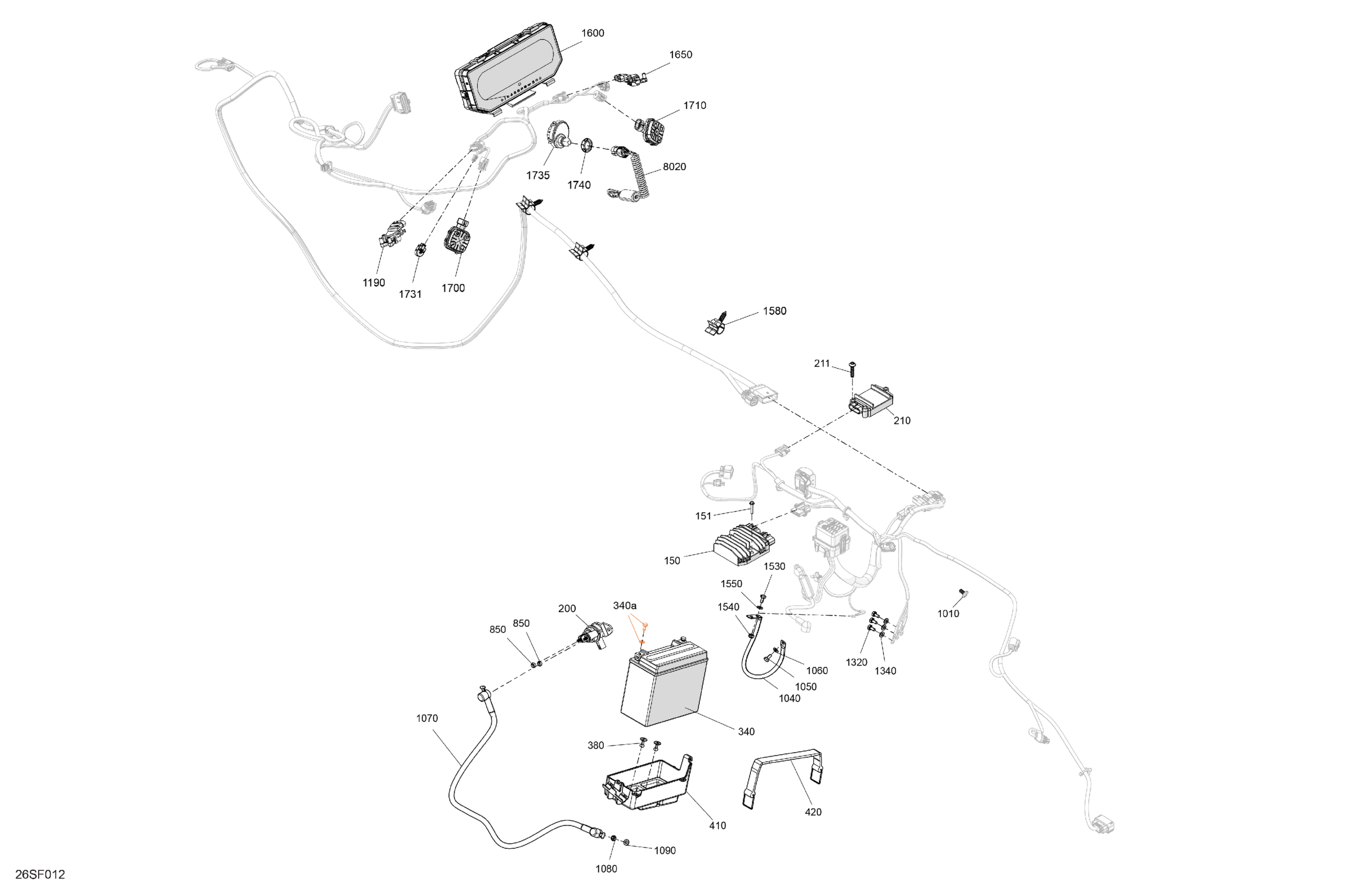

Sea-doo International - RXT - 325 - X - 22TA - Ice Metal, 2026 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

151

Hex. Flange Screw K50 X 25

250000680

$1.67

200

Starter Relay

278003012

$35.07

210

Relay

278004052

$88.78

211

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1010

Black Dart

293730010

$0.81

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

1740

Specialized Nut

278004274

$2.72

4710

Mount Dart

710008294

$0.99

8020

Cut Off Switch Tether Cord

278004669

$58.47
