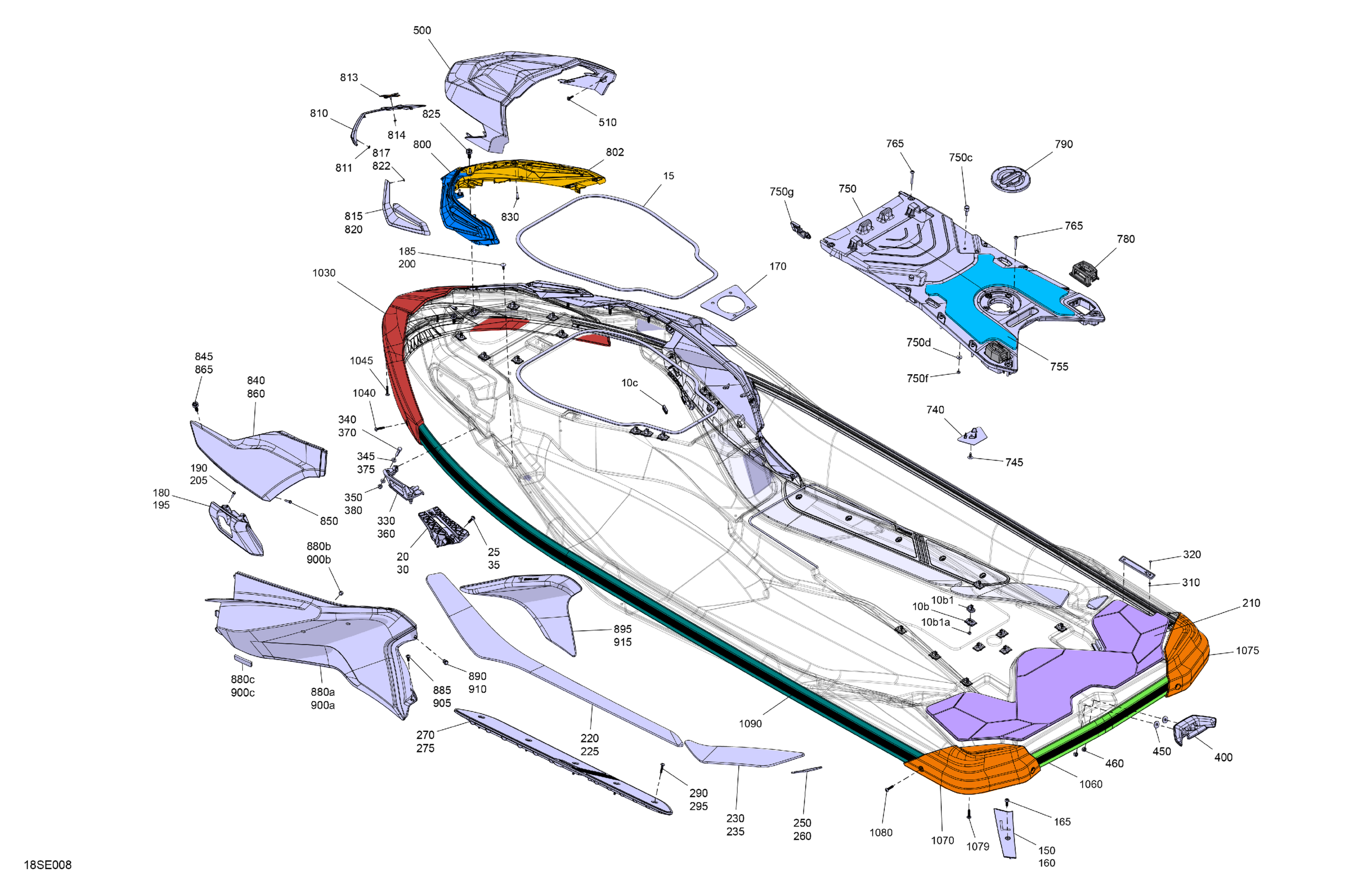

Sea-doo RXT - 325 - X - 22SA - Ice Metal - Audio, 2025 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

Elastic Stop Nut M6, Brass

232561200

$4.03

Anchorage Tie Wrap

293750109

$0.99

Gasket

293250401

$10.10

LH Support

291004714

$8.21

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

RH Support

291004715

$9.03

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

LH Shim

291005176

$13.52

RH Shim

291005177

$13.52

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Gasket

293250451

$22.36

LH Shell Cleat

291004661

$8.21

Black, Dart

293730011

$0.91

Hex. Screw 10-14 X 7/8”

211000023

$3.34

RH Shell Cleat

291004719

$8.21

Black, Dart

293730011

$0.91

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Rear Plat-Form Carpet

291005077

$132.81

LH Front Anti Slip Mat

291005349

$31.31

RH Front Anti Slip Mat

291005348

$31.31

LH Rear Anti Slip Mat

291005353

$15.64

RH Rear Anti Slip Mat

291005352

$15.64

LH Anti Slip Mat

291005883

$5.07

RH Anti Slip Mat

291005884

$5.07

Dragon Red, LH Footrest

291004786

$49.97

Dragon Red, RH Footrest

291004787

$49.97

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

Rivet 1/8"

293150016

$0.33

Black, Snap Cap

293000014

$0.97

LH Cleat

291004559

$7.31

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.52

Hex. Elastic Nut M8 Brass

232581200

$1.48

RH Cleat

291004720

$7.31

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.52

Hex. Elastic Nut M8 Brass

232581200

$1.48

Cleat

291004597

$22.36

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Elastic Nut M8 Brass

232581200

$1.48

Iceland Grey, Hood

291005304

$94.00

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

Hose Protector

291004941

$4.22

Black, Dart

293730011

$0.91

Acces Cover Ass'y | Includes 750 to 750g

291005876

$197.73

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

Flat Washer M6, Stainless

234062600

$0.73

Elastic Stop Nut M6, Brass

232561200

$4.03

Seal

291004717

$10.37

Deep Black, Rear Mat

291005861

$36.54

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Linq Bases Kit

295100858

$24.60

Access Cap Ass'y

291004481

$8.21

LH Front Hood Grille Ass'y

291005911

$26.84

RH Front Hood Grille Ass'y

291005913

$26.84

Deep Black, Front Trim

291006091

$25.34

Push Nut

250100206

$0.96

Emblem X

502008454

$8.39

Push Nut

250100206

$0.96

Manta Green, LH Trim

291006200

$25.34

Push Nut

250100206

$0.96

Manta Green, RH Trim

291006201

Unavailable

Push Nut

250100206

$0.96

Dard

293730071

$1.03

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Iceland Grey, LH Front Body Panel

291004676

$73.85

Dard

293730071

$1.03

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Iceland Grey, RH Front Body Panel

291004775

$73.85

Dard

293730071

$1.03

Iceland Grey, LH Central Body Panel Drilled

291004781

$148.48

Rubber Bumper

293830005

$6.12

Stopper

278003860

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

Tuflok Plastic Rivet

293150230

$1.39

Swift Silver, LH Knee Pad

291004773

$101.46

Iceland Gray, RH Central Body Panel

291004784

$148.48

Rubber Bumper

293830005

$6.12

Stopper

278003860

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

Tuflok Plastic Rivet

293150230

$1.39

Swift Silver, RH Knee Pads

291004800

$101.46

Front Bumper

291004452

$71.61

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Bumper 2775±25mm

291004468

$129.82

LH Rear Bumper

291004465

$27.58

RH Rear Bumper

291004466

$27.58

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Bumper 2775±25mm

291004468

$129.82
