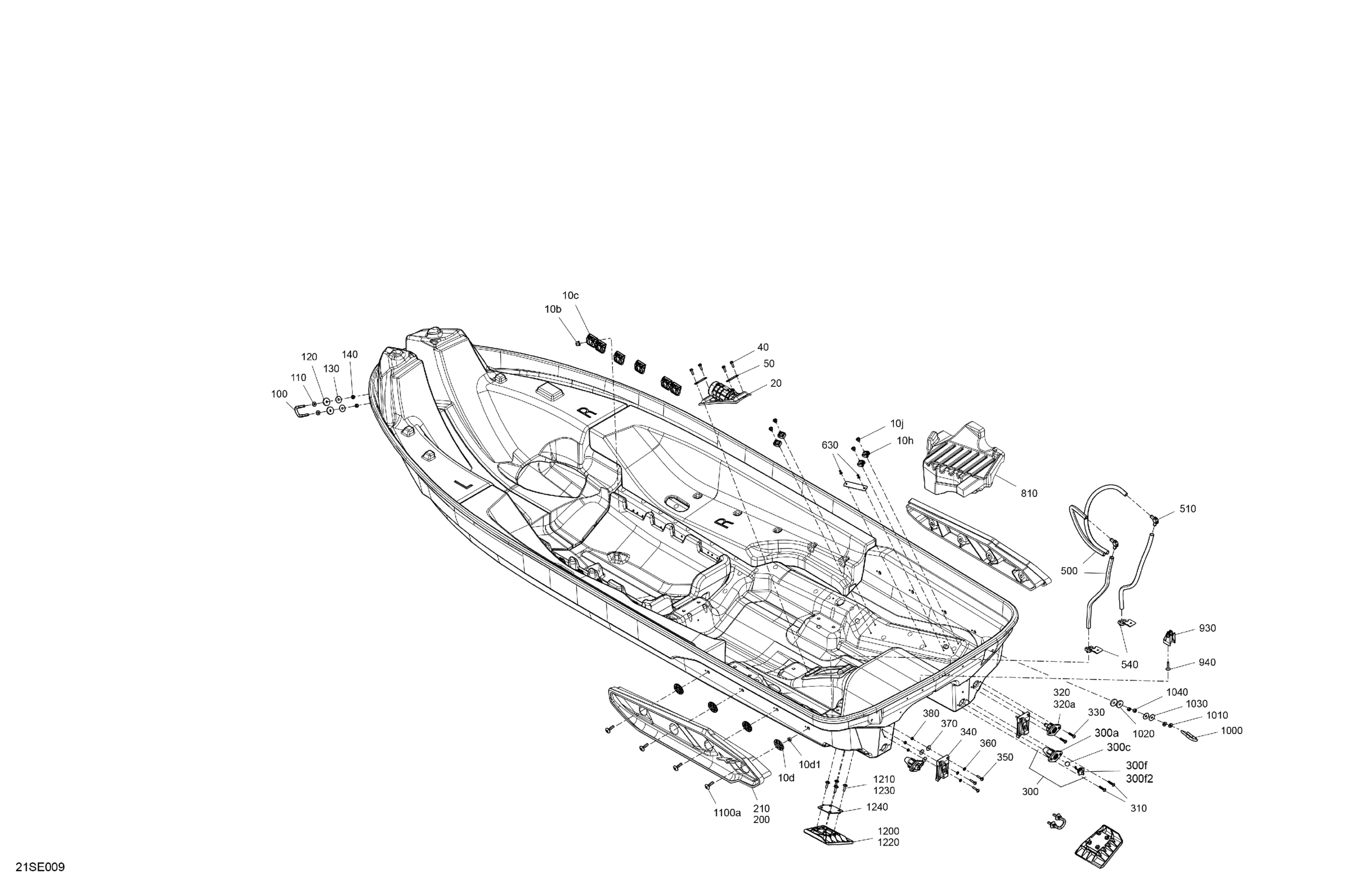

Sea-doo RXT - 325 - X - 22SA - Ice Metal - Audio, 2025 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.89

10c

Strap Retaining

270000933

$6.99

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10d1

Hex. Flange Nut M8

233181600

$1.05

10h

Strap Anchor

270000854

$7.76

10j

Pop Rivet 3/16

293150186

$2.09

20

Through Hull Fitting

293450409

$34.99

40

Hex. Flange Screw M6.81 x 20

243162060

$3.72

50

Reinforcement

291004907

$2.89

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

120

Rubber Washer

293830037

$2.68

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292002391

$46.99

210

LH Sponson

292002392

$46.99

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

340

Ladder Trim Fastener

292002697

$8.49

350

Truss Cone Torx Screw M6 X 30

250000924

$7.51

360

Stainless Flat Washer M6

234061600

$0.33

370

Flat Washer M6.6 X 22

250200022

$2.72

380

Elastic Stop Nut M6, Brass

232561200

$4.23

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

510

Fitting Elbow 90°

293710152

$18.49

540

Plate

292002935

$15.49

630

Avdel Rivet 3/16"

293150037

$0.56

810

Cooler Float

292002028

$36.99

930

Strap Anchor

270000988

$10.28

940

Hexagonal Cap Screw M6 X35

250000399

$4.44

1000

U-Clamp

292000933

$59.49

1010

Flat Washer M8.5 x 18

293050001

$3.07

1020

Rubber Washer

293830037

$2.68

1030

Flat Washer 8 mm, Stainless

250200175

$3.06

1040

Hex. Elastic Nut M8 Brass

232581200

$2.22

1100a

Torx Head Screw M8 X 35

250001215

$5.92

1200

LH Trim Tab

292002102

$18.49

1210

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1220

RH Trim Tab

292002103

$18.49

1230

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1240

Gasket

277002171

$4.33
