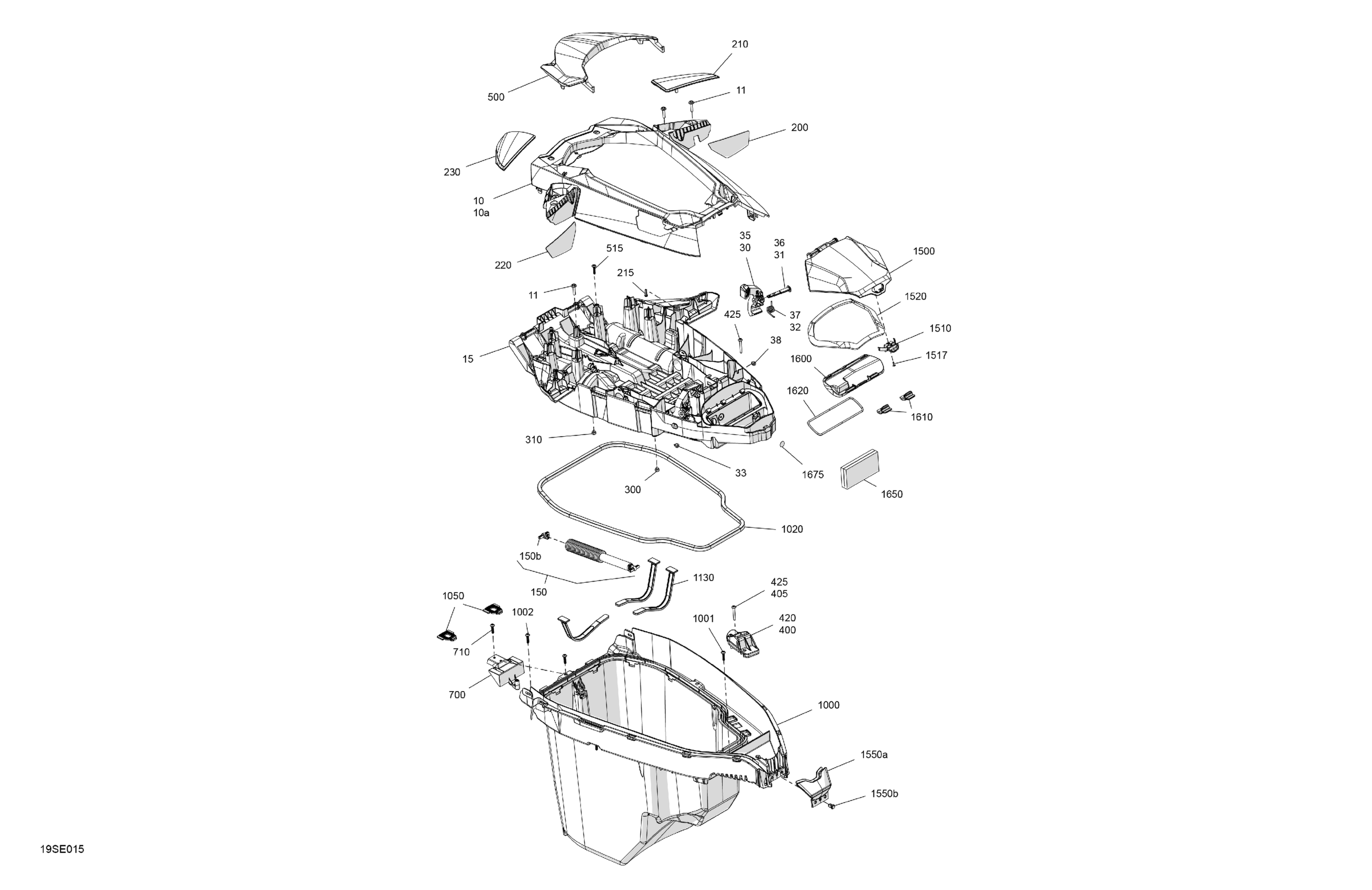

Sea-doo International - RXT - 325 - X - 22SB - Ice Metal - Audio, 2025 Body - Front Cover Diagram

#

Description
Price

10

Perforated Upper Hood | Includes 10 to 10a

269502481

$199.99

10a

Outer Skin

269502394

$204.99

11

Hexagonal Cap Screw M6 X35

250000399

$4.49

15

Inner Skin

269502555

$169.99

30

LH Latch

269502267

$30.99

31

Pin

269502536

$18.49

32

Latch Spring

269502268

$26.99

33

Rubber Bumper

293830005

$8.29

35

RH Latch

269502299

$30.99

36

Pin

269502536

$18.49

37

Latch Spring

269502268

$26.99

38

Rubber Bumper

293830005

$8.29

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$99.99

150b

Shock Absorber End Fitting

269501984

$11.49

200

RH Mirror Glass

269502276

$88.99

210

Iceland Grey, RH Miror Cover

269502542

$55.99

215

Hex. Screw 10-14 X 7/8”

211000023

$3.69

220

LH Mirror Glass

269502274

$88.99

230

Iceland Grey, LH Miror Cover

269502543

$55.99

300

Rubber Bumper

293830005

$8.29

310

Rubber Bumper

293830005

$8.29

400

LH Latch Base

269502385

$18.99

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.49

420

RH Latch Base

269502386

$18.99

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.49

500

Iceland Grey, Top Cover

269502406

$119.99

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.29

700

Shock Base

269502282

$25.99

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.19

1000

Bin Compartment

264000144

$124.99

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.29

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.19

1020

Gasket

293250478

$13.49

1050

Adjustment Hook

269502325

$10.99

1130

Strap

269502493

$14.30

1500

Glove Box Door

264000132

$65.99

1510

Glove Box Latch

264000133

$21.99

1517

Screw K40 X 10

250001119

$2.49

1520

Cover Gasket

293250717

$29.99

1550a

Glove Box Trim

269502538

$19.49

1550b

Tuflok Plastic Rivet

293150230

$1.49

1600

Box Cover

264000158

$14.49

1610

Clip

269501718

$15.99

1620

Gasket

293250591

$17.99

1650

Sealed Compartment Foam

264000135

$13.49

1675

Vent Membrane

264000137

$12.99
