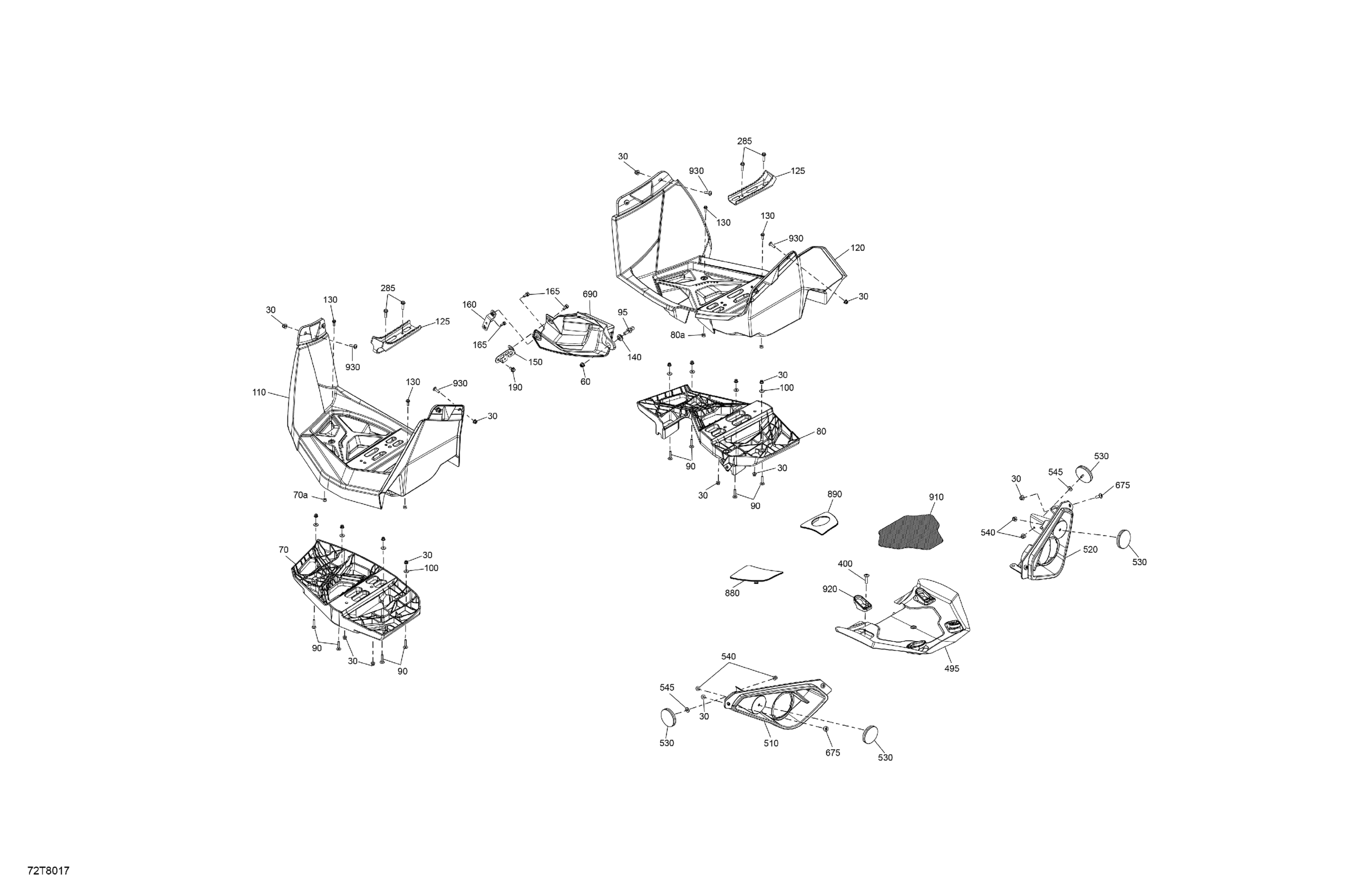

Can-Am RENEGADE - 4X4 - STD - 1000R - 4GJA - Can-Am Red, 2018 Body - Rear Section Diagram

Description

Price

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M8

233281434

$2.00

LH Footboard

705004176

$44.75

70a

Square Nut M6

232862412

$1.36

RH Footboard

705004177

$44.75

80a

Square Nut M6

232862412

$1.36

Carriage Bolt M6 X 30

207763044

$4.15

Ball Head Stud

250300039

$7.06

100

Flat Washer 6 mm

234062410

$0.73

110

LH Footboard/Fender

705004730

$117.88

120

RH Footboard/Fender

705004729

$117.88

125

Footrest

705002326

$38.78

130

Hex. Flange Screw M6 X 16

207661654

$2.00

140

Overmolded Grommet

293720130

$4.25

150

Engine Cover Support

705011461

$8.24

160

Engine Cover Support

705003646

$7.21

165

Hex. Flange Screw M6 X 12

210261250

$1.79

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

285

Hex. Flange Screw M6 X 25

207662554

$1.43

400

Torx Screw M6 X 25

250000758

$2.00

495

Reflective Sheet

705005840

$7.67

510

LH Rear Facia | North America, International

705004731

$16.39

520

RH Rear Facia | North America, International

705004732

$16.39

530

Red Reflector

705011221

$11.96

540

Hex. Flange Elastic Nut M5

233251414

$1.91

545

Flat Washer

517225900

$0.16

675

Torx Screw M6 X 16

250000755

$0.82

690

Engine Cover

705004966

$12.85

880

LH Rear Body Panel Cap

705017923

$12.30

890

RH Rear Body Panel Cap

705017924

$14.27

910

Rear Carpet

705002343

$16.39

920

Hook

705017925

$14.90

930

Torx Screw M6 X 20

250000712

$2.00
