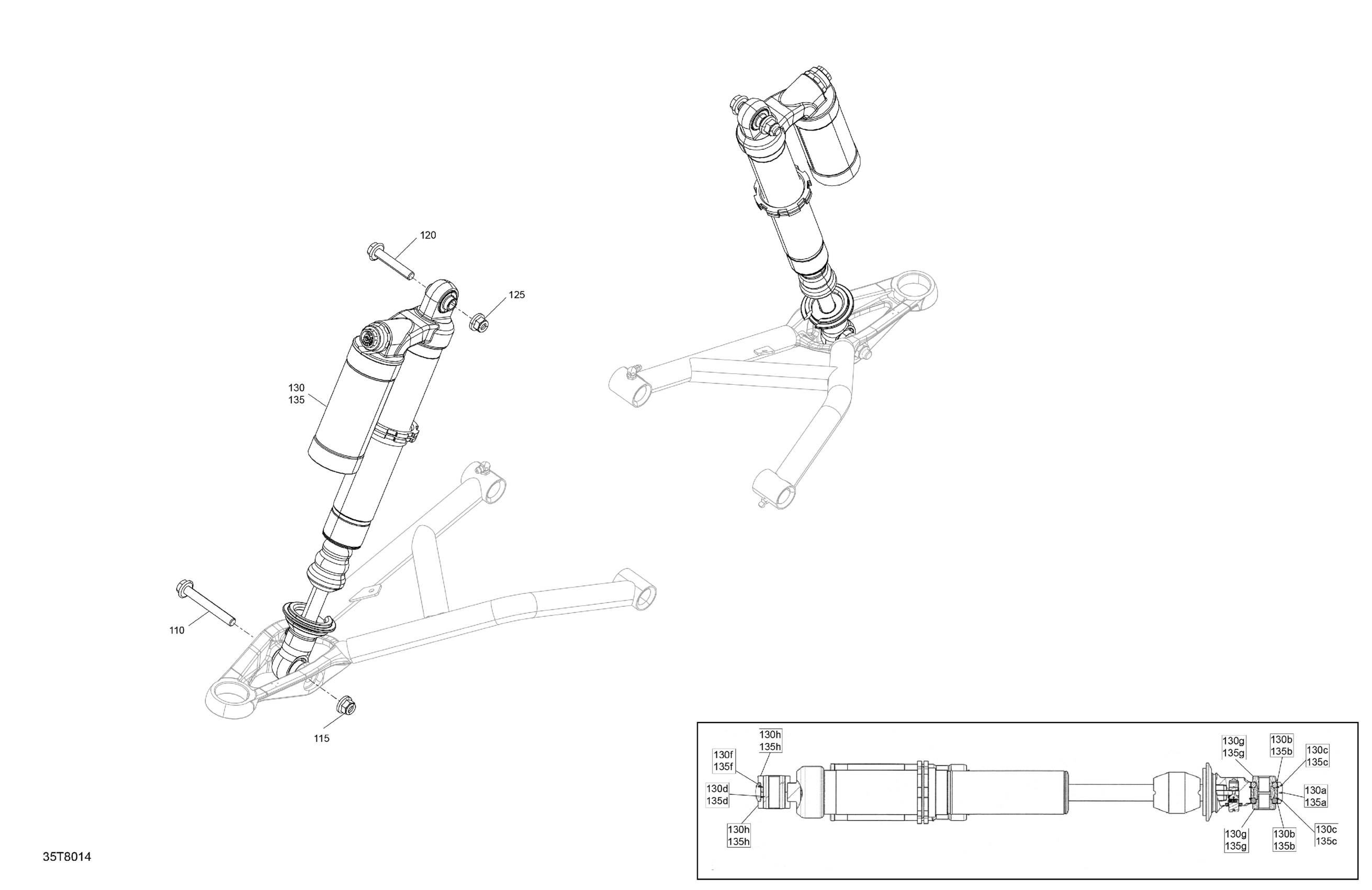

Can-Am RENEGADE - 4X4 - XXC - 1000R - 5VJA - Can-Am Red, 2018 Suspension - Front Shocks Diagram

Description

Price

110

Hex. Flange Screw M10 X 75

250001038

$5.54

115

Hex. Flange Elastic Nut M10

233201436

$1.74

120

Hex. Flange Screw M10 X 55

207605546

$1.74

125

Hex. Flange Elastic Nut M10

233201436

$1.74

130

Shock Absorber | Package-XXC

706202117

$709.99

130a

Spherical Bearing

715900251

$73.85

130b

O-Ring Bushing

715900209

$12.49

130c

Retaining Ring

715900252

$10.24

130d

Bushing Sleeve | XTP

706201586

$29.82

130f

Bushing Sleeve | XTP

706201585

$29.82

130g

Interior Bushing | XTP

715900210

$13.58

130h

Bushing | XTP

706201648

$12.72

135

Shock Absorber | Package-XXC

706202117

$709.99

135a

Spherical Bearing

715900251

$73.85

135b

O-Ring Bushing

715900209

$12.49

135c

Retaining Ring

715900252

$10.24

135d

Bushing Sleeve | XTP

706201586

$29.82

135f

Bushing Sleeve | XTP

706201585

$29.82

135g

Interior Bushing | XTP

715900210

$13.58

135h

Bushing | XTP

706201648

$12.72
