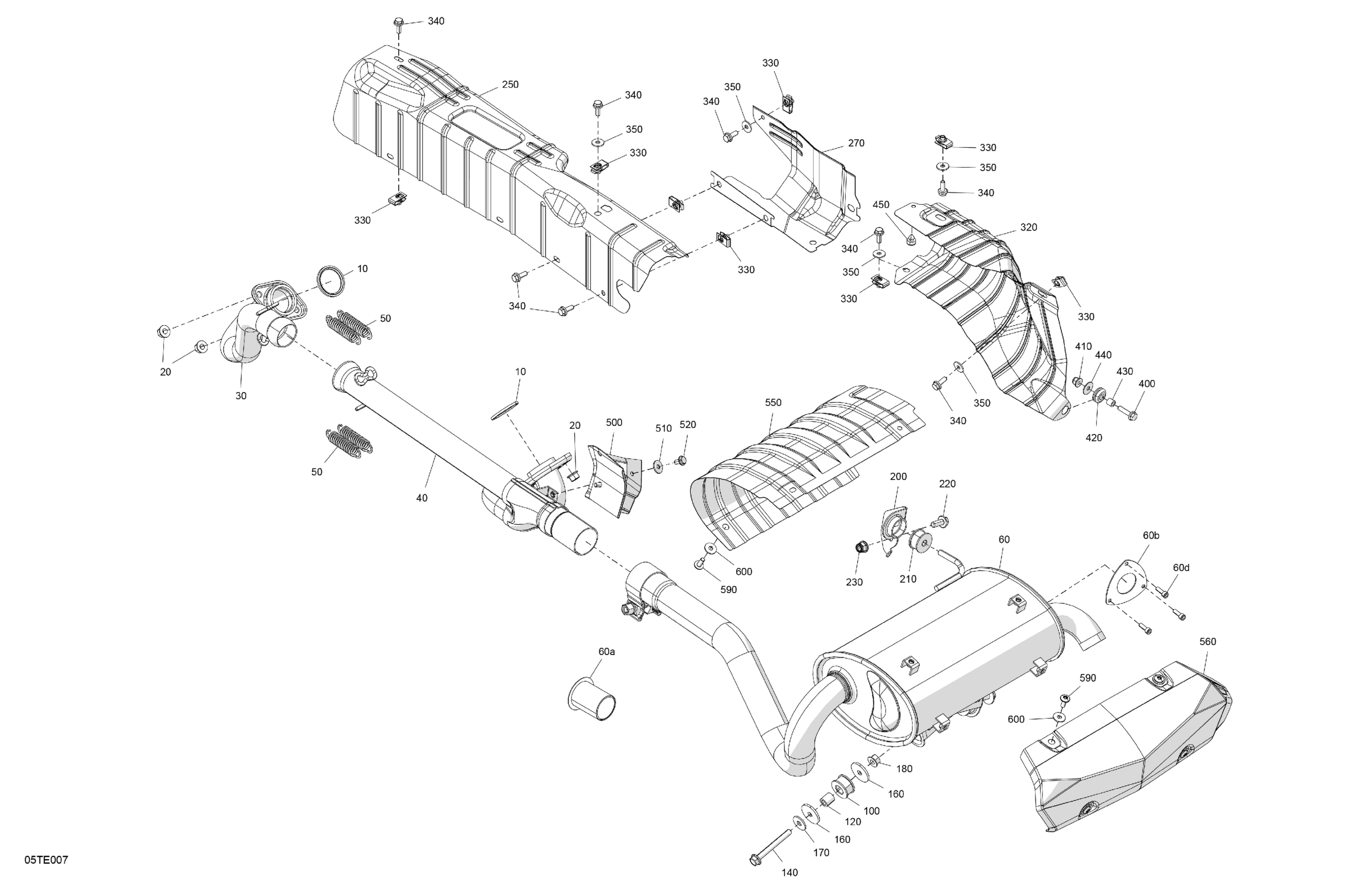

Can-Am RENEGADE - 4X4 - XXC - 1000R EFI - 5VSA - Catalyst Gray - 2025 Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$11.60

Hex. Flange Nut

233081436

$2.00

Front Head Pipe

707600627

$142.99

Rear Head Pipe

707601455

$206.49

Spring

415107100

$6.35

Exhaust Muffler | Includes 60 to 60d

707603147

$550.99

60a

Spark Arrestor

707601803

$49.99

60b

Gasket

707601799

$5.99

60c

Spark Arrestor | Not Shown

707602087

$35.99

60d

Socket Head Screw M6 X 20

205062060

$2.32

100

Vibration Damper

707603323

$11.65

120

Spacer Bushing

293900116

$3.24

140

Hex. Flange Screw M8 X 70

207687044

$7.41

160

Flat Washer M8

250200158

$2.11

170

Flat Washer 8 mm

234082410

$1.47

180

Hex. Flange Nut

233081436

$2.00

200

Support

707600933

$7.90

210

Anti-Vibration Rubber

707600702

$8.57

220

Hex. Flange Screw M8 X 20

207682044

$1.15

230

Hex. Flange Nut

233081436

$2.00

250

Heat Shield

707603724

$13.99

270

Protector

707601484

$12.71

320

Protector

707601425

$19.49

330

Panel Nut M6 X 1.0

250100198

$2.11

340

Hex. Flange Screw M6 X 16

207661644

$0.74

350

Flat Washer 6 mm

234062410

$0.77

400

Hex. Flange Screw M6 X 25

207662544

$0.64

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Overmolded Grommet

293720130

$4.69

430

Bushing

293900105

$7.65

440

Flat Washer

224060201

$1.26

450

Rubber Bumper

293830005

$8.09

500

Pipe Protector

707600932

$15.81

510

Flat Washer

250200082

$0.42

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.90

550

Heat Deflector

707600737

$22.49

560

Heat Deflector

707600738

$53.99

590

Torx Head Screw M6 X 16

250000717

$2.11

600

Stainless Steel Flat Washer

234062670

$2.11
