08- Electric - Front Section

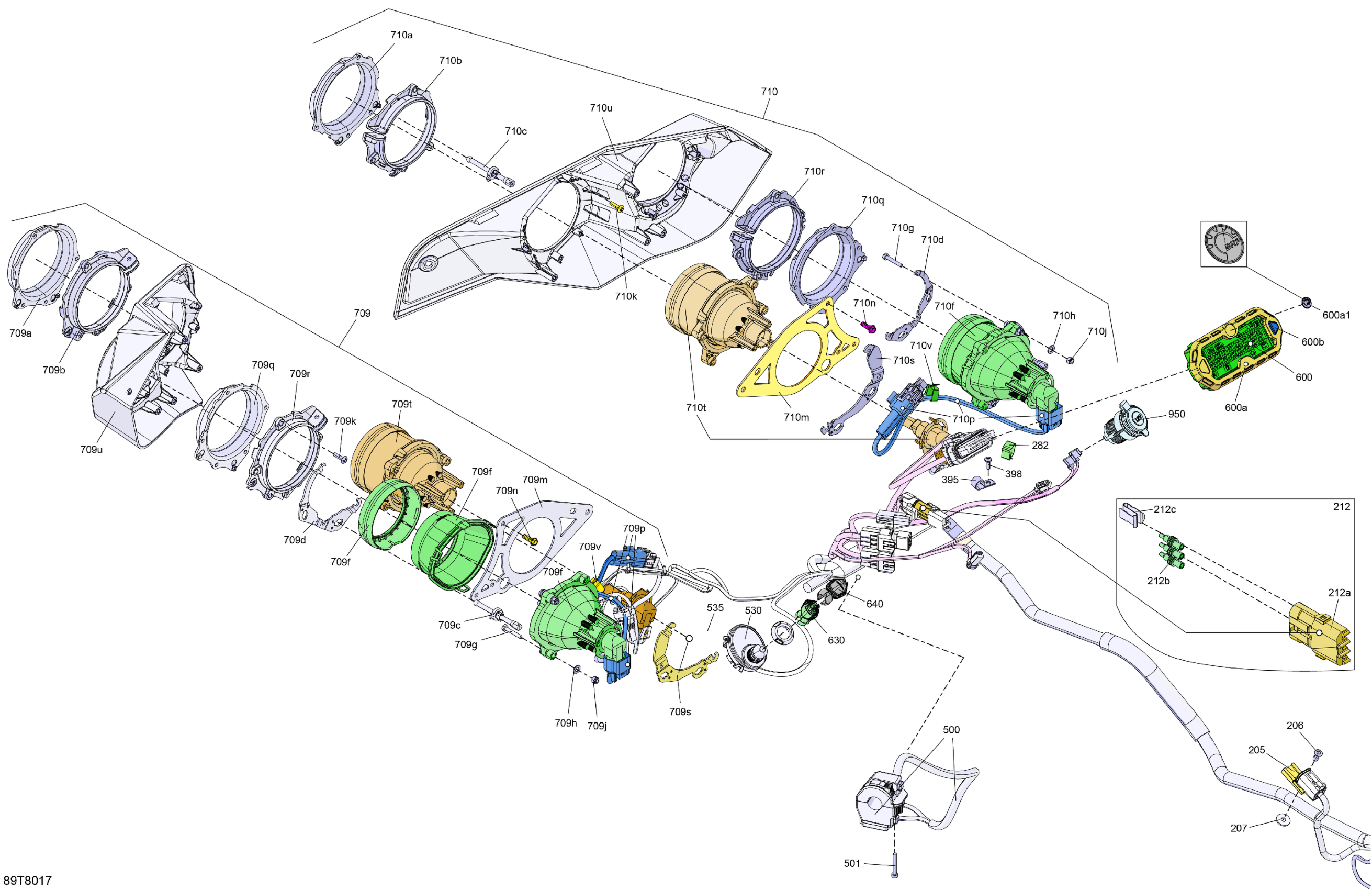

Can-Am International - RENEGADE - 4X4 - XMR - 570 EFI - 4TJB - Can-Am Red, 2018 08- Electric - Front Section Diagram
#
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
282
Clip
414227300
Unavailable
395
Open Clamp
518321570
Unavailable
398
Torx Screw K50 X 16
250000720
Unavailable
500
Multi-Function Handle | Except Model Europe, Except Model STD
710005070
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
535
Safety Nut (DESS Switch)
278002963
Unavailable
600
Speedometer | Includes 600 to 600b
710005553
Unavailable
600a
Trim Ring Ass'y
710001183
Unavailable
600a1
BRP Logo 13 MM
516010651
Unavailable
600b
Button
715900265
Unavailable
630
Green Key RFID | Except Model Europe, Except T3
710005232
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
709
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
709
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
709a
LH Low Front Housing
710001083
Unavailable
709a1
Halogen Bulb
415129249
Unavailable
709b
LH Low Rear Housing
710001084
Unavailable
709c
Setting Screw
710001147
Unavailable
709d
LH Low Light Support
710006353
Unavailable
709f
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
709g
Hex. Screw M4 X 25
207142544
Unavailable
709h
Flat Washer M5
234051410
Unavailable
709j
Elastic Stop Nut M4
232541414
Unavailable
709k
Phillips Screw K40 X 16
250000723
Unavailable
709m
Painted Headlamp Support
705004309
Unavailable
709n
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
709p
Light Harness
710005944
Unavailable
709q
LH High Front Housing
710001087
Unavailable
709r
LH High Rear Housing
710001088
Unavailable
709s
LH High Light Support
710005853
Unavailable
709t
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
709u
LH Front Facia
705004508
Unavailable
709v
Clip
414227300
Unavailable
710
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
710
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
710a
RH Low Front Housing
710001081
Unavailable
710a1
Halogen Bulb
415129249
Unavailable
710b
RH Low Rear Housing
710001082
Unavailable
710c
Setting Screw
710001147
Unavailable
710d
RH Low Light Support
710006354
Unavailable
710f
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
710g
Hex. Screw M4 X 25
207142544
Unavailable
710h
Flat Washer M5
234051410
Unavailable
710j
Elastic Stop Nut M4
232541414
Unavailable
710k
Phillips Screw K40 X 16
250000723
Unavailable
710m
Painted Headlamp Support
705004309
Unavailable
710n
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
710p
Light Harness
710005944
Unavailable
710q
RH High Front Housing
710001085
Unavailable
710r
RH High Rear Housing
710001086
Unavailable
710s
RH High Light Support
710005856
Unavailable
710t
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
710u
RH Front Facia
705004509
Unavailable
710v
Clip
414227300
Unavailable
950
DC Outlet
710001248
Unavailable
