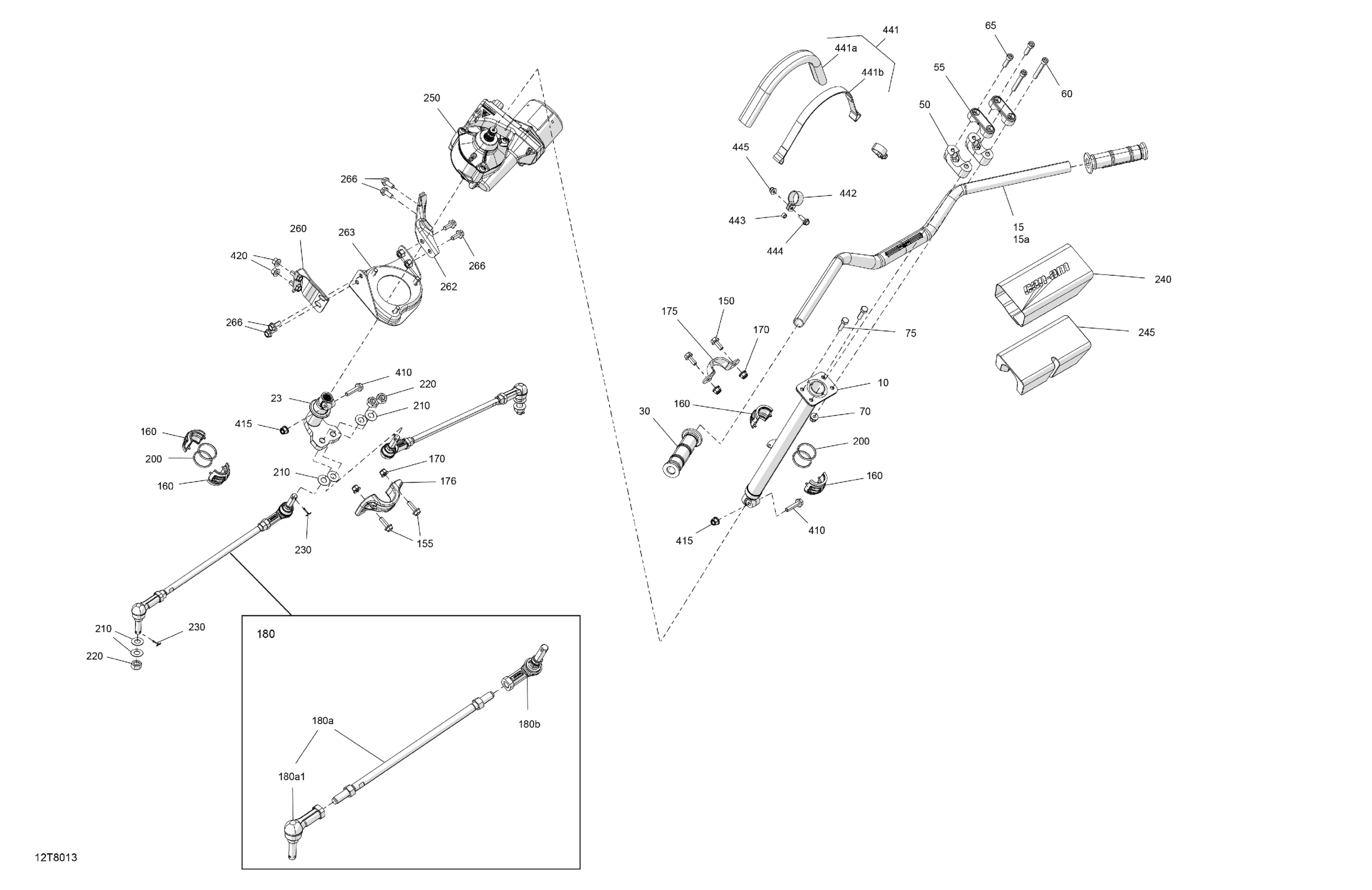

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJC - Can-Am Red, 2018 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$61.16

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$92.51

Aluminum Handle Bar

709400513

$58.93

Pitman Arm | Model XMR

703501161

$39.52

Handle Grip

709400493

$13.82

Lower Mounting Clamp

709402750

$23.10

Support

709400496

$23.10

Socket Head Screw M8 X 60

205086060

$3.88

Socket Screw M8 X 30

205083060

$3.27

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Screw M8 X 30

207183060

$1.49

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 25

207682544

$1.03

Spherical Half Bushing

709400783

$5.96

Hex. Flange Elastic Nut M8

233281414

$1.31

Upper Column Attachment

709400827

$0.97

Column Attachment

709401428

$35.04

Rod-Tie Ass'y | Incl 36

703501037

$102.21

Rod-Tie Ass'y | Incl 36

703501037

$102.21

LH Ball Joint

709402303

$34.30

RH Ball Joint

709402302

$34.30

O-Ring

293300068

$6.07

Hardened Washer

706200281

$2.69

Nut M12

250100099

$1.88

Cotter Pin

211400013

$0.31

Cover | Package XMR Engine 1000 Red Model

709402112

$30.57

Foam

709400422

$15.64

Power Steering Ass'y | Model With DPS

709403187

$1,131.31

LH Power Steering Bracket | Model With DPS

709402184

$14.90

RH Bracket | Model With DPS

709402185

$25.34

Power Steering Support | Model With DPS

709401743

$16.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 35

250000986

$2.00

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Flange Nut M8

233081416

$1.87

Strap Ass'y | Package XMR

506152115

$41.76

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Collar Tube | Package XMR

709401720

$17.13

Bushing | Package XMR

506152156

$5.19

Hex. Flange Screw M6 X 20

207662054

$0.96

Hex. Flange Elastic Nut M6

233261466

$1.91
