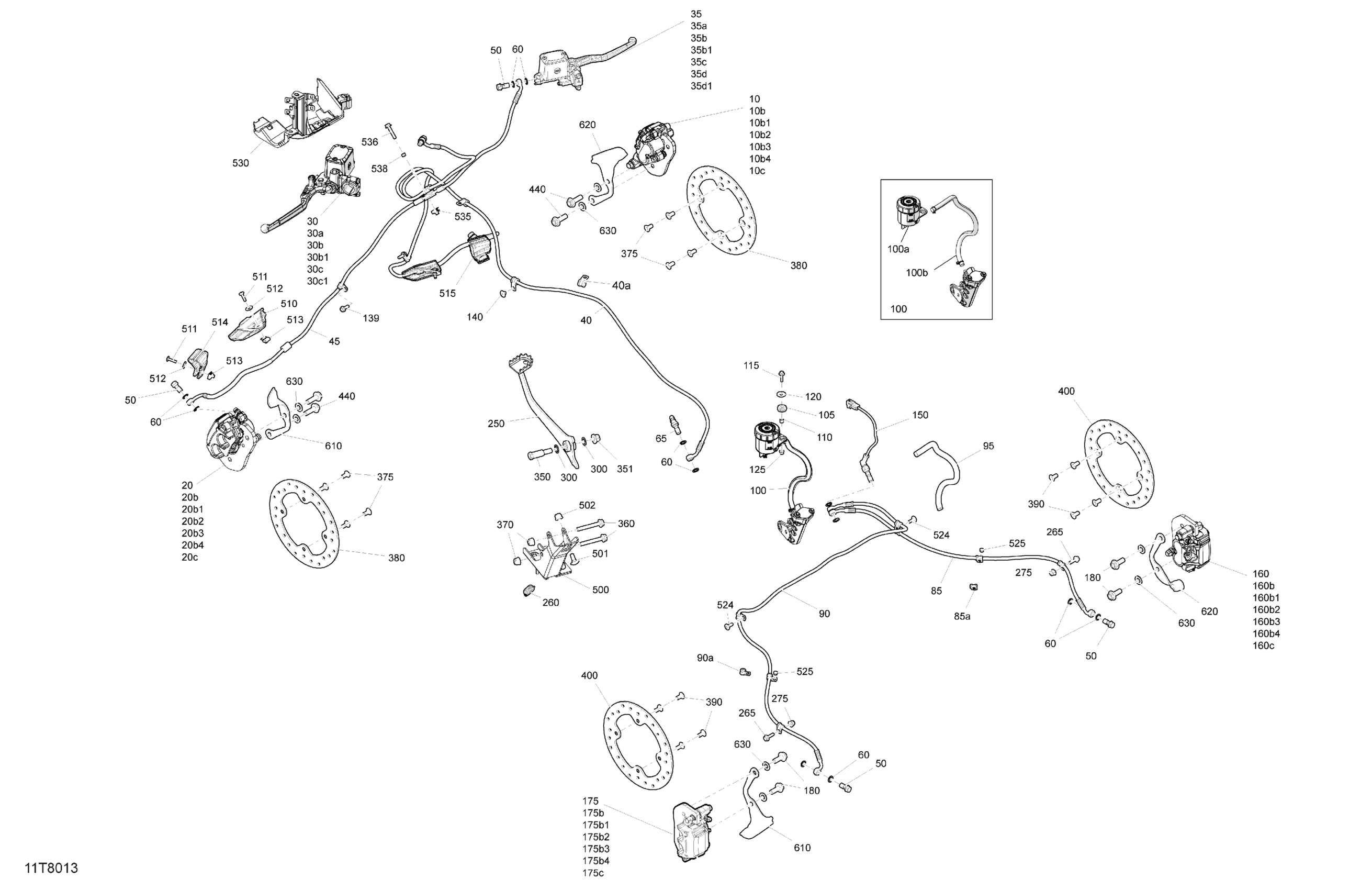

Can-Am RENEGADE - 4X4 - XMR - 570 EFI - 4TJA - Can-Am Red, 2018 Mechanic - Brake System Diagram

RH Front Caliper Ass'y | Model XMR

703500967

$280.99

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

RH Organic Brake Pad Kit

705601014

$42.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

LH Front Caliper Ass'y | Model XMR

703500968

$270.49

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

LH Organic Brake Pad Kit

705601015

$42.49

LH Metallic Brake Pad Kit | Model XMR

715900248

$51.99

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$229.99

Lever Set

705601013

$63.99

Clamp And Screw Kit

507032477

$23.99

Hex. Flange Screw M6 X 25

250000447

$2.11

Cap Set

219800096

$21.99

Screw M4 X 20

415129356

$2.22

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$294.99

Lever Set

705601011

$71.99

Clamp And Screw Kit

507032477

$23.99

Hex. Flange Screw M6 X 25

250000447

$2.11

Kit Switch

705601012

$56.99

Cap Set

219800096

$21.99

Screw M4 X 20

415129356

$2.22

Brake Line | Except Europe

705601546

$77.49

Clamp

293650256

$5.49

Brake Line

705601589

$121.99

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Copper Washer

705601628

$4.44

Bleeding Screw

705601051

$12.16

RH Rear Hose

705601301

$41.49

Clamp

293650256

$5.49

Brake Line Ass'y

705601554

$50.99

Clamp

293650256

$5.49

Tubing 10 MM 1000MM Long

219704407

$2.79

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

Oil Tank

705601020

$39.99

Oil Housing Hose

705601019

$15.87

Grommet

414036300

$2.79

Bushing

293900112

$10.06

Hex.Flange Screw M5 X 20

207652044

$1.90

Flat Washer

224060201

$1.26

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Flange Screw M6 X 16

210261640

$2.11

Pop Rivet 3/16"

390406500

$0.88

Brake Switch

705601251

$51.99

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$291.49

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

RH Organic Brake Pad Kit

705601014

$42.49

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

LH Rear Caliper Ass'y | Model XMR

703500970

$285.99

LH Rear Caliper Ass'y | Includes 47 to 51

705600860

$328.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

LH Organic Brake Pad Kit

705601015

$42.49

LH Metallic Brake Pad Kit | Model XMR

715900248

$51.99

Hex. Flange Screw M10 X 25

207502546

$2.11

Deep Black, Brake Pedal

705602163

$154.99

Brake Pedal Spring

705600792

$9.10

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

O-Ring

293300144

$3.82

Shoulder Screw M10

250000513

$6.77

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M8 X 55

207685544

$5.39

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

Disc Brake

705600999

$67.99

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

Disc Brake

705600999

$67.99

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Brake Pedal Bracket

705202000

$38.99

Carriage Bolt, M8 X 20

207782044

$1.90

Hex. Flange Elastic Nut M8

233281414

$1.47

Front Hose Guard

705602016

$4.55

Torx Screw M5 X 20

250000724

$1.69

Washer M5

250200025

$0.74

Panel Nut M5 X 0.8

250000958

$4.23

LH Hose Bracket

705601048

$4.55

RH Hose Bracket

705601049

$4.55

Torx Screw M6 X 16

250000755

$0.87

Pop Rivet 3/16"

390402400

$0.35

Front Hose Bracket

705600983

$13.71

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

Bushing | DS 650 X

293900104

$5.50

LH Deflector

705601214

$24.99

RH Deflector

705601215

$24.99

Flat Washer 10 mm

234001410

$1.26
