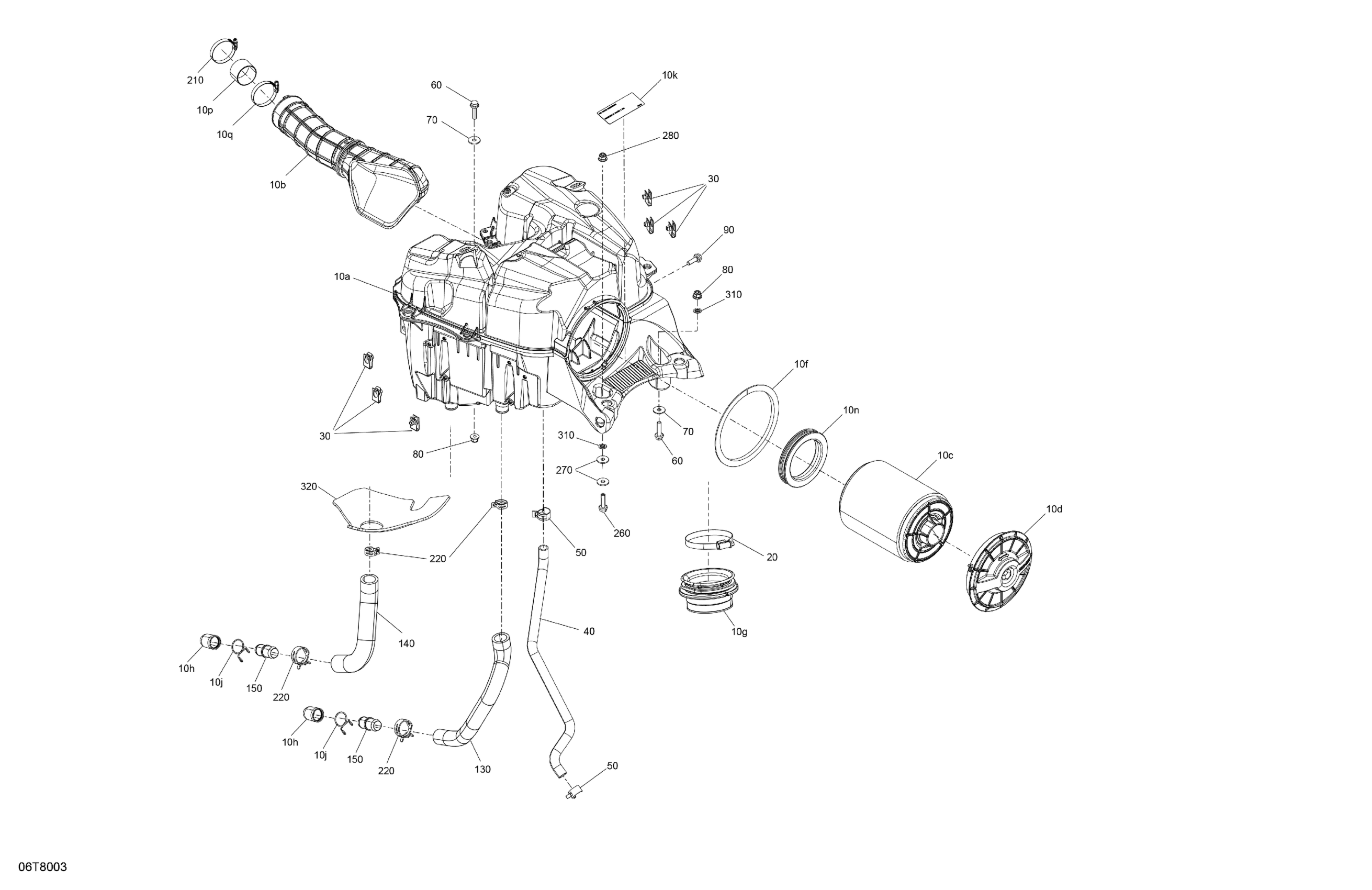

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJA - Sunburst Yellow, 2018 Engine - Air Intake Diagram

Description

Price

10a

Air Box

707800724

$85.49

10b

Air Intake Hose

707800501

$53.19

10c

Air Filter

707800371

$37.66

10d

Intake Silencer Cap Ass'y

715002174

$15.22

10f

Gasket

293300175

$13.29

10g

Intake Adaptor

707800333

$18.43

10h

Drain Tube

707800080

$7.37

10j

Retainer Clip

707800278

$12.91

10k

Air Filter Maintenance Decal

707800373

Unavailable

10n

Air Filter Adaptor

707800470

$18.43

10p

Ring

707800504

$50.74

10q

Gear Clamp

293650230

$6.11

Norma Clamp

293650091

$4.60

Panel Nut M6 X 1.0

250100198

$1.73

Vent Hose

707800453

$27.66

Norma Clamp

293650110

$4.38

Hex. Flange Screw M6 X 25

207662534

$1.74

Flat Washer

250200082

$0.35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

130

Formed Hose

707800671

$41.51

140

Formed Hose

707800672

$36.89

150

Straight Fitting

270001073

$9.00

210

Norma Clamp

293650077

$6.11

220

Norma Spring Clamp

293650109

$4.00

260

Hex. Flange Screw M6 X 25

207662534

$1.74

270

Flat Washer

250200082

$0.35

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

310

Push Nut

732610072

$1.72

320

Heat Shield

707002106

$8.46
