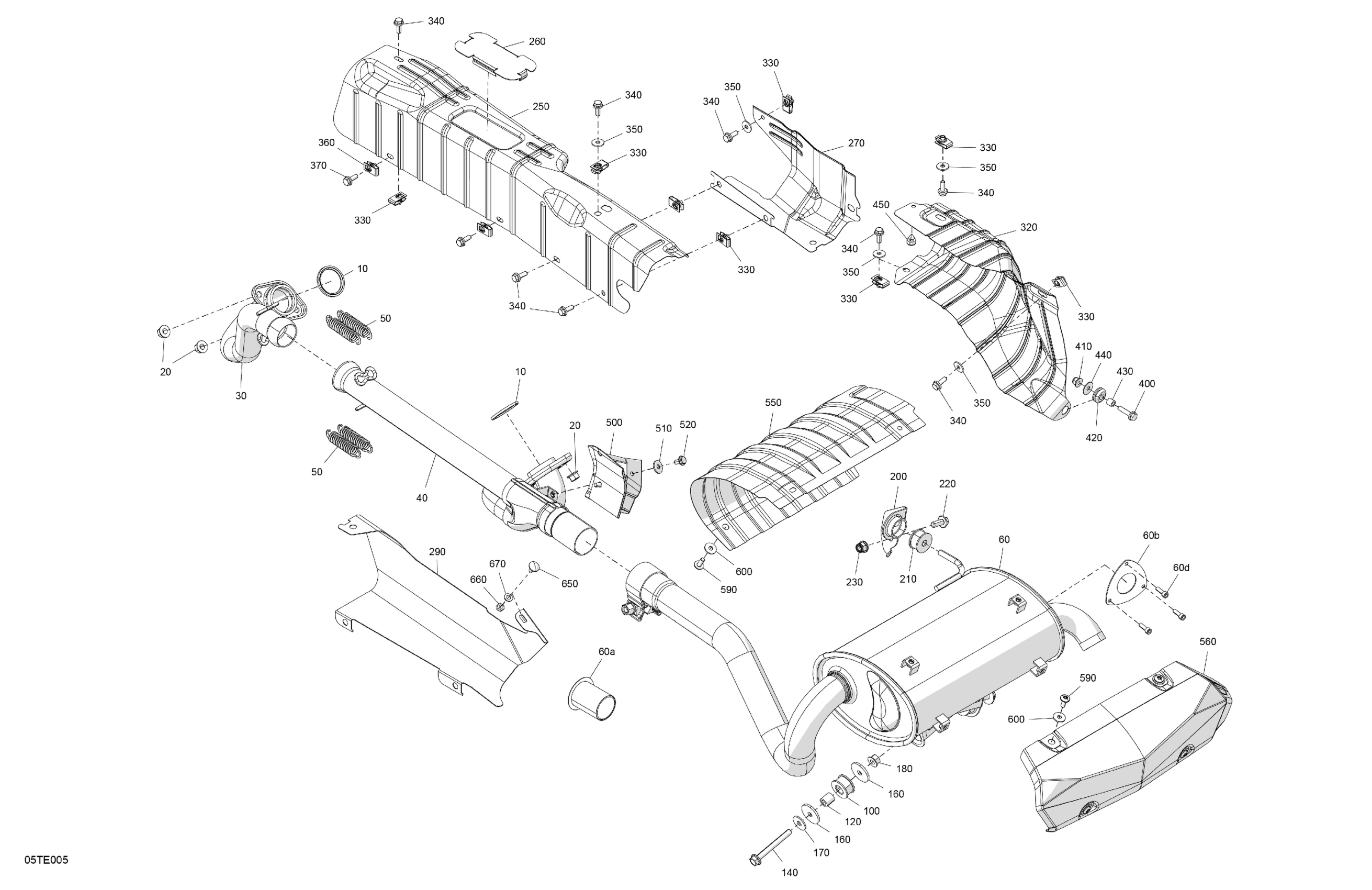

Can-Am RENEGADE - 4X4 - XMR - 1000R EFI - 5USA - Scandi Blue - 2025 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.52

20

Hex. Flange Nut

233081436

$1.63

30

Front Head Pipe

707600627

$138.43

40

Rear Head Pipe

707601455

$203.05

50

Spring

415107100

$6.20

60

Exhaust Muffler | Includes 60 to 60d

707603147

$535.35

60a

Spark Arrestor

707601803

$47.49

60b

Gasket

707601799

$4.62

60c

Spark Arrestor | Not Shown

707602087

$34.19

60d

Socket Head Screw M6 X 20

205062060

$1.92

100

Vibration Damper

707603323

$11.07

120

Spacer Bushing

293900116

$3.08

140

Hex. Flange Screw M8 X 70

207687044

$6.11

160

Flat Washer M8

250200158

$1.74

170

Flat Washer 8 mm

234082410

$1.11

180

Hex. Flange Nut

233081436

$1.63

200

Support

707600933

$7.60

210

Anti-Vibration Rubber

707600702

$8.34

220

Hex. Flange Screw M8 X 20

207682044

$0.92

230

Hex. Flange Nut

233081436

$1.63

250

Heat Shield

707603724

$12.68

260

Heat Shield

707600995

$16.12

270

Protector

707601484

$12.07

290

Heat Shield

707600996

$23.05

320

Protector

707601425

$18.43

330

Panel Nut M6 X 1.0

250100198

$1.73

340

Hex. Flange Screw M6 X 16

207661644

$0.61

350

Flat Washer 6 mm

234062410

$0.64

360

Panel Nut M6 X 1.0

250100198

$1.73

370

Hex. Flange Screw M6 X 16

207661644

$0.61

400

Hex. Flange Screw M6 X 25

207662544

$0.53

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Overmolded Grommet

293720130

$4.38

430

Bushing

293900105

$6.26

440

Flat Washer

224060201

$1.15

450

Rubber Bumper

293830005

$5.33

500

Pipe Protector

707600932

$14.37

510

Flat Washer

250200082

$0.35

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.56

550

Heat Deflector

707600737

$23.05

560

Heat Deflector

707600738

$50.74

590

Torx Head Screw M6 X 16

250000717

$1.74

600

Stainless Steel Flat Washer

234062670

$1.74

650

Carriage Bolt M6 X 12

207761244

$1.56

660

Elastic Stop Nut M6

232561434

$1.55

670

Flat Washer 6 mm

234061410

$1.04
