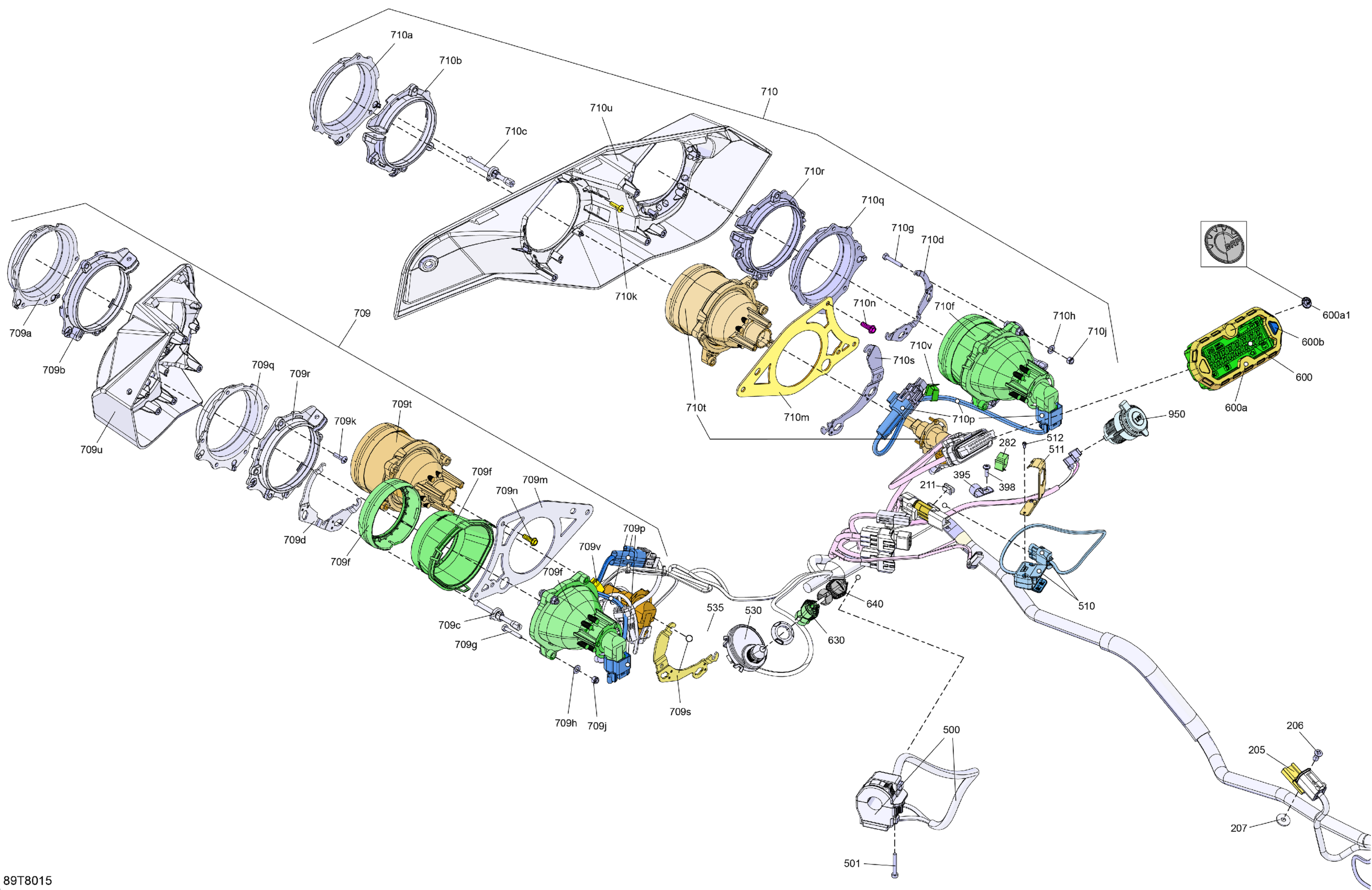

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJA - Sunburst Yellow, 2018 Electric - Front Section Diagram

#

Description
Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

211

Clip

710000992

$3.88

282

Clip

414227300

$1.40

395

Open Clamp

518321570

$5.85

398

Torx Screw K50 X 16

250000720

$1.60

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

501

Socket Head Screw M5 X 35

205053588

$1.79

510

Winch Switch

710005241

$153.70

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

535

Safety Nut (DESS Switch)

278002963

$3.12

600

Speedometer | Includes 600 to 600b

710005553

$305.19

600a

Trim Ring Ass'y

710001183

$17.88

600a1

BRP Logo 13 MM

516010651

$11.09

600b

Button

715900265

$11.81

630

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

709

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

709

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

709a

LH Low Front Housing

710001083

$16.39

709a1

Halogen Bulb

415129249

$38.78

709b

LH Low Rear Housing

710001084

$10.55

709c

Setting Screw

710001147

$11.81

709d

LH Low Light Support

710006353

$23.85

709f

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

709g

Hex. Screw M4 X 25

207142544

$1.87

709h

Flat Washer M5

234051410

$0.51

709j

Elastic Stop Nut M4

232541414

$0.55

709k

Phillips Screw K40 X 16

250000723

$0.93

709m

Painted Headlamp Support

705004309

$14.90

709n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

709p

Light Harness

710005944

$27.58

709q

LH High Front Housing

710001087

$16.39

709r

LH High Rear Housing

710001088

$10.55

709s

LH High Light Support

710005853

$4.76

709t

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

709u

LH Front Facia

705004508

$46.24

709v

Clip

414227300

$1.40

710

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

RH Low Front Housing

710001081

$16.39

710a1

Halogen Bulb

415129249

$38.78

710b

RH Low Rear Housing

710001082

$10.55

710c

Setting Screw

710001147

$11.81

710d

RH Low Light Support

710006354

$17.13

710f

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

710g

Hex. Screw M4 X 25

207142544

$1.87

710h

Flat Washer M5

234051410

$0.51

710j

Elastic Stop Nut M4

232541414

$0.55

710k

Phillips Screw K40 X 16

250000723

$0.93

710m

Painted Headlamp Support

705004309

$14.90

710n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

710p

Light Harness

710005944

$27.58

710q

RH High Front Housing

710001085

$16.39

710r

RH High Rear Housing

710001086

$10.55

710s

RH High Light Support

710005856

$4.76

710t

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710u

RH Front Facia

705004509

$46.24

710v

Clip

414227300

$1.40

950

DC Outlet

710001248

$35.79
