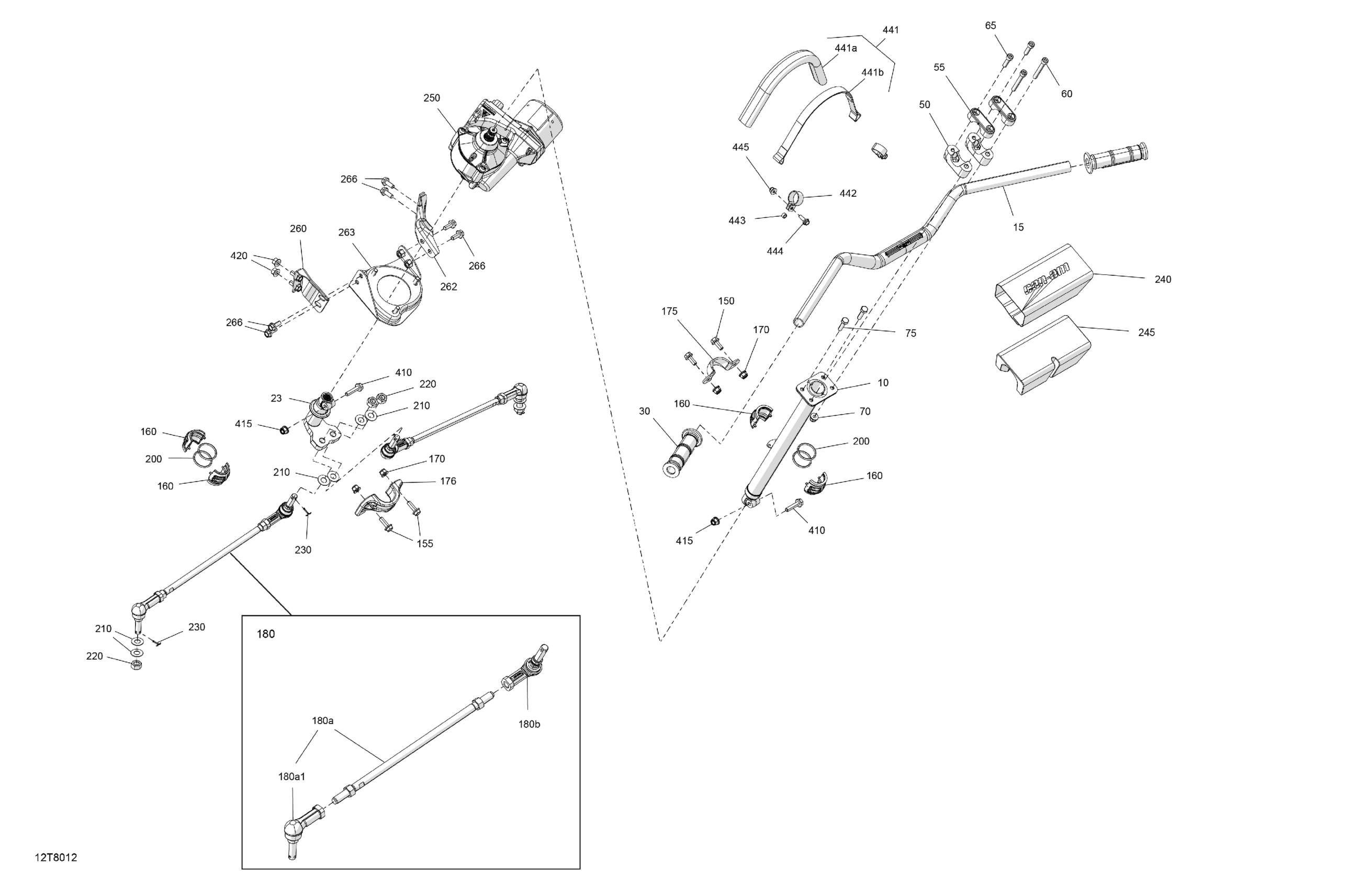

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJA - Sunburst Yellow, 2018 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$67.66

Sunburst Yellow, Handle Bar

709402063

$64.58

Pitman Arm | Model XMR

703501161

$41.51

Handle Grip

709400493

$14.09

Lower Mounting Clamp

709402750

$24.69

Support

709400496

$27.66

Socket Head Screw M8 X 60

205086060

$3.38

Socket Screw M8 X 30

205083060

$2.89

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Screw M8 X 30

207183060

$1.30

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682544

$0.90

Spherical Half Bushing

709400783

$6.14

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Attachment

709400827

$1.00

Column Attachment

709401428

$36.12

Rod-Tie Ass'y | Incl 36

703501037

$105.44

Rod-Tie Ass'y | Incl 36

703501037

$105.44

LH Ball Joint

709402303

$35.14

RH Ball Joint

709402302

$35.14

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Nut M12

250100099

$1.64

Cotter Pin

211400013

$0.32

Cover

709402113

$36.89

Foam

709400422

$16.12

Power Steering Ass'y | Model With DPS

709403187

$1,158.04

LH Power Steering Bracket | Model With DPS

709402184

$15.35

RH Bracket | Model With DPS

709402185

$27.66

Power Steering Support | Model With DPS

709401743

$16.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 35

250000986

$1.74

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut M8

233081416

$1.63

Strap Ass'y | Package XMR

506152115

$43.05

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Collar Tube | Package XMR

709401720

$16.89

Bushing | Package XMR

506152156

$5.35

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6

233261466

$1.66
