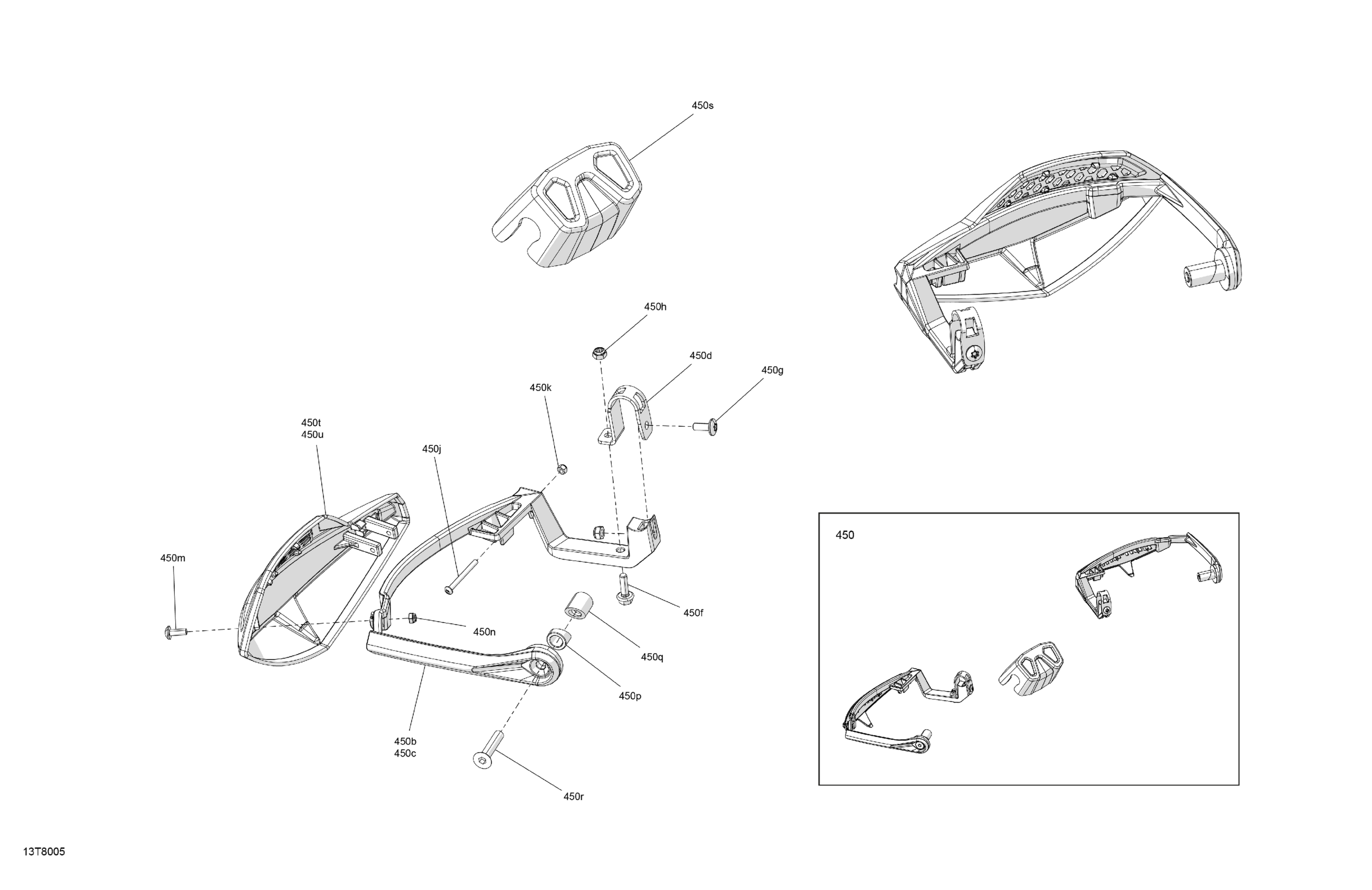

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJB - Sunburst Yellow, 2018 Mechanic - Air Deflector Diagram

Description

Price

450

Air Deflector Support Kit | X

715001378

$131.57

450b

Not Available As Spare Parts

XXX

Unavailable

450c

Not Available As Spare Parts

XXX

Unavailable

450d

Not Available As Spare Parts

XXX

Unavailable

450f

Hex. Flange Screw M6 X 20

207662044

$1.91

450g

Torx Screw M6 X 16

250000223

$2.00

450h

Hex. Elastic Stop Nut M6

232561600

$1.06

450j

Socket Head Screw M4 X 40 | X

205444086

$1.63

450k

Elastic Stop Nut M4

232541414

$0.55

450m

Torx Screw M5 X 14

250000742

$1.37

450n

Hex. Elastic Nut M5 | X

232551600

$1.04

450p

Small Bracket | DS 650 X

709400161

$17.88

450q

Large Bracket | DS 650 X

709400162

$17.13

450r

Socket Head Screw | X

205384034

$5.96

450s

Steering Cover | STD

709400278

$11.51

450t

Sunburst Yellow RH Air Deflector

709402053

$17.13

450u

Sunburst Yellow LH Air Deflector

709402054

$17.13
