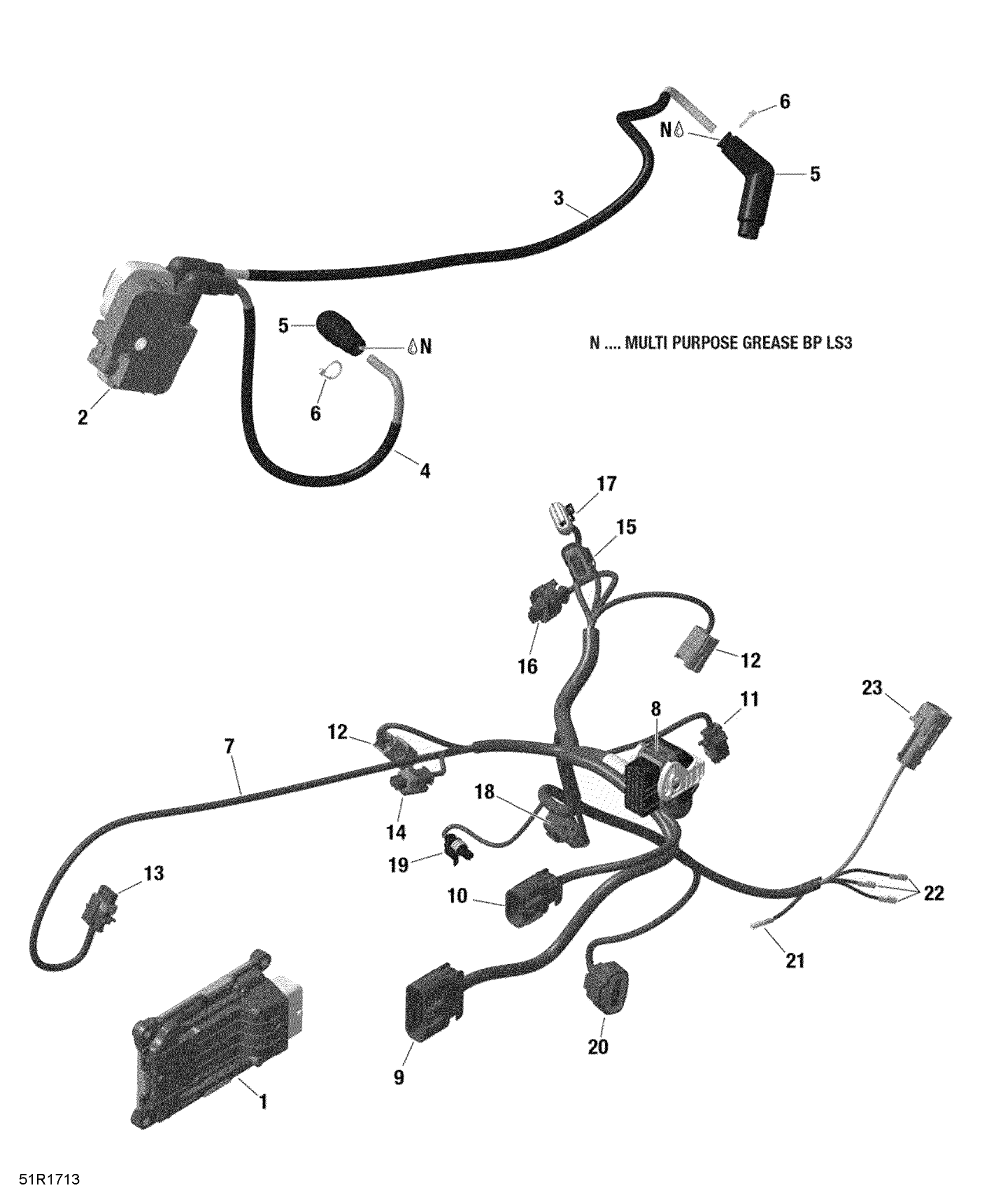

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJA - Can-Am Red, 2018 ROTAX - Engine Harness and Electronic Module Diagram

#

Description
Price

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

2a

Ignition Coil

278001546

$158.99

2b

Housing

710000568

$11.12

3

Ignition Cable 315MM MAG

420464155

$74.99

4

Ignition Cable 570MM PTO

420464166

$56.99

5

Spark Plug Connector

420265020

$27.49

6

Tie Rap

420866710

$5.49

6

Tie Wrap 94 mm | 4X4

293750001

$1.03

7

Engine Wiring Harness

420864692

$429.99

7

WIRING HARNESS - Call your local BRP dealership | Includes 7 to 23, CARB model

420864693

Unavailable

7

Wiring Harness | Includes 7 to 23, Except XMR

420666573

$439.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Housing

710001227

$12.71

11

Housing

710001927

$8.79

12

Male Housing, 2 Circuits

278001005

$19.49

13

Not Available As Spare Parts

XXX

Unavailable

14

Male Housing, 3 Circuits

278000997

$19.49

15

Male Housing, 2 Circuits

278001005

$19.49

16

Housing Connector, 3 Circuits

278001829

$21.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Male Housing

278002378

$13.99

20

Male Housing, 1 Circuit

278001012

$16.86

21

Male Housing, 4 Circuits

710000329

$15.36

22

Not Available As Spare Parts

XXX

Unavailable

22a

Female Terminal | DS 650 X

278001009

$3.19

22b

Insulated Sheath

278001007

$3.58

23

Male Housing, 3 Circuits

278000997

$19.49
