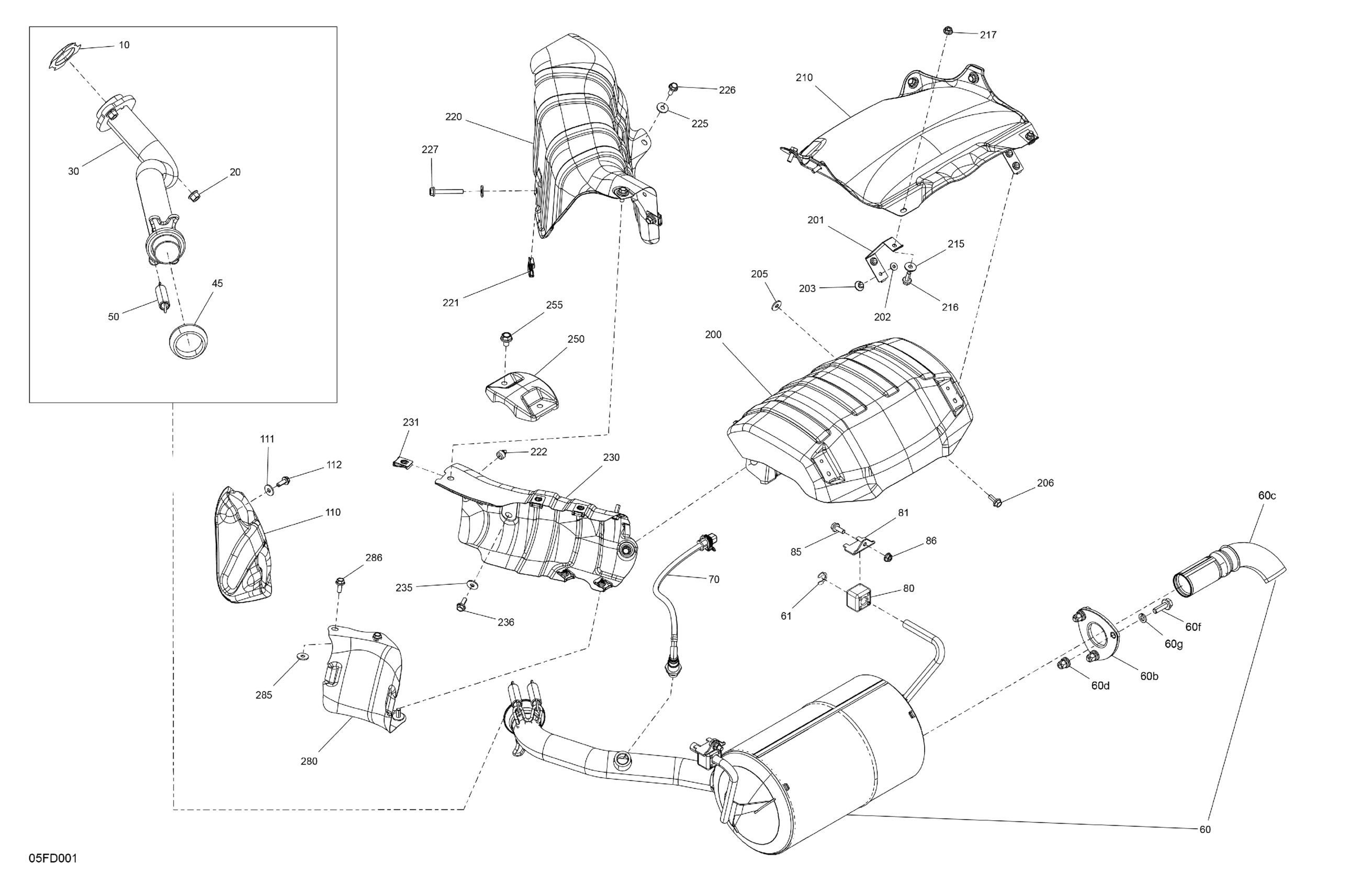

Can-Am Outlander 500 2X4 - 1KRB - STD Package - Legion Red, 2024 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$4.69

20

Hex. Flange Nut

233081436

$1.63

30

Exhaust Pipe | Includes 30 to 30f

707603186

$165.64

45

Exhaust Gasket

707603475

$24.60

50

Spring

707601834

$6.01

60

Exhaust Muffler Ass'y | Includes 60 to 60g

707603363

$684.30

60b

Gasket

707602780

$10.51

60c

Tail Pipe | Includes 60c to 60c4

707602969

$81.31

60d

Threaded Insert M8 X 1.25

250100238

$0.76

60f

Hex. Flange Screw M8 X 25

207682544

$0.90

60g

Lock Washer Din.127B

707603743

$1.87

61

External Retaining Ring

293370184

$1.89

70

Oxygen Sensor

707600872

$115.67

80

Vibration Damper

707603000

$6.73

81

Muffler Support

707603200

$15.64

85

Hex Flange Screw M6 X 16

250000906

$4.39

86

Hex. Flange Nut M6

233161414

$1.74

110

Heat Shield

707603009

$11.87

111

Flat Washer 6 mm

234062410

$0.64

112

Hex. Flange Screw M6 X 16

210261650

$1.22

200

Heat Shield

707603428

$42.51

201

Heat Shield Support

707603029

$3.29

202

Flat Washer

517225900

$0.16

203

Pop Rivet 3/16”

390910000

$0.48

205

Flat Washer 6 mm

234062410

$0.64

206

Hex Flange Screw M6 X 16

250000906

$4.39

210

Heat Shield

707603768

$60.99

215

Flat Washer 6 mm

234062410

$0.64

216

Hex Flange Screw M6 X 16

250000906

$4.39

217

Hex. Flange Nut M6

233161414

$1.74

220

Heat Shield

707603004

$32.81

221

Panel Nut M6 X 1.0

250100208

$1.07

222

Rubber Bumper

293830005

$5.33

225

Flat Washer 6 mm

234062410

$0.64

226

Hex Flange Screw M6 X 16

250000906

$4.39

227

Hex. Flange Screw M6 X 45

207664544

$1.07

230

Heat Shield

707603003

$32.81

231

Panel Nut M6 X 1.0

250100208

$1.07

235

Flat Washer 6 mm

234062410

$0.64

236

Hex Flange Screw M6 X 16

250000906

$4.39

250

Heat Shield

707603005

$11.87

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

280

Heat Shield

707603006

$11.87

285

Flat Washer 6 mm

234062410

$0.64

286

Hex Flange Screw M6 X 16

250000906

$4.39
