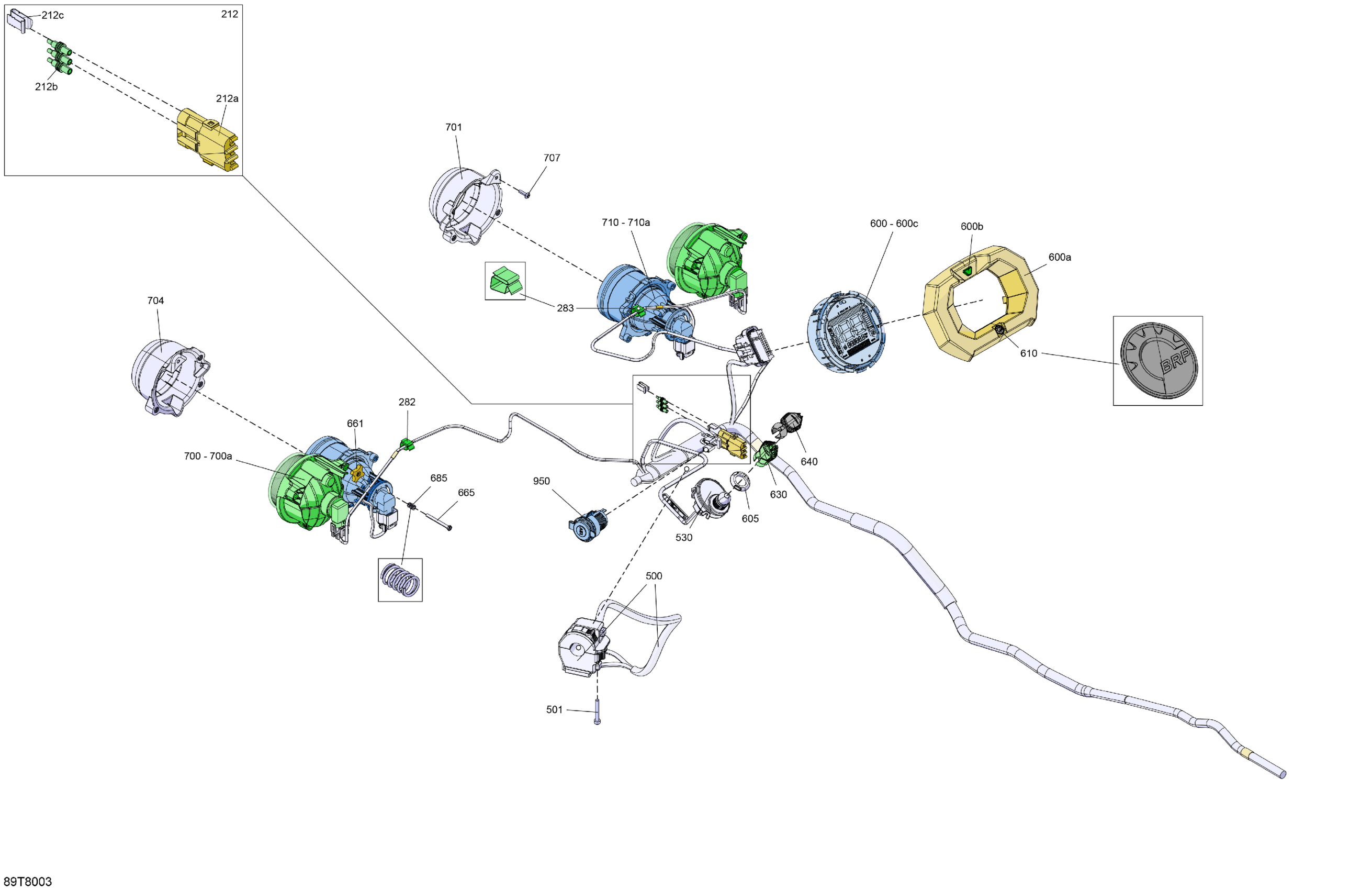

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 5LJA - Orange Crush, 2018 Electric - Front Section Diagram

Description

Price

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

212b

Wire Seal

278000216

$2.93

212c

Clip

710000992

$3.88

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

600

Speedometer Ass'y | Includes 600 to 600c

710005599

$295.49

600a

Trim Ring

710002092

$8.73

600b

Button

710001473

$11.81

600c

Lens

415129320

$22.36

605

Safety Nut (DESS Switch)

278002963

$3.12

610

BRP Logo13 mm

704904615

$11.09

630

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$2.00

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

707

Phillips Screw K40 X 16

250000723

$0.93

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

950

DC Outlet

710001248

$35.79
