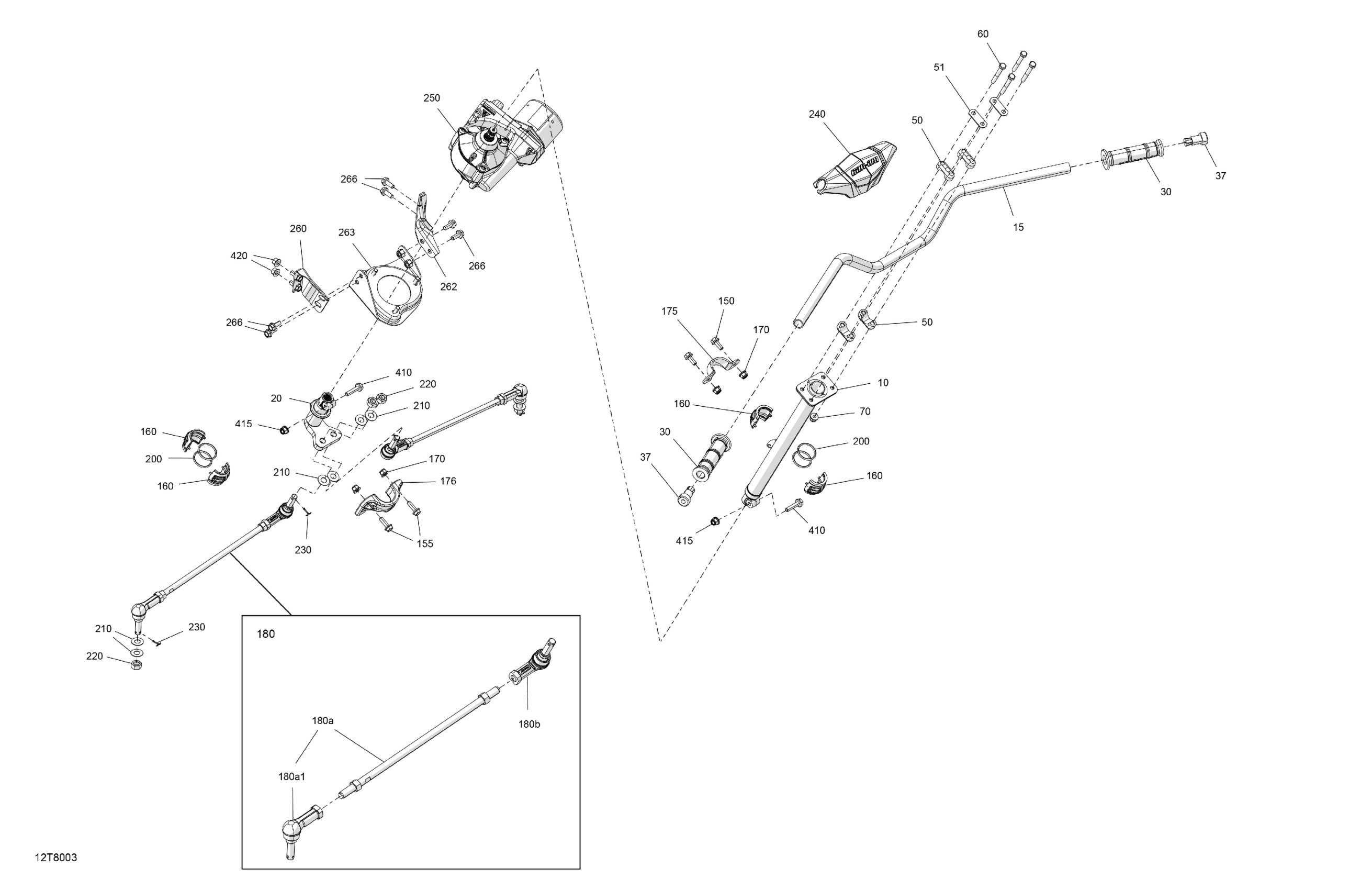

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 5LJA - Orange Crush, 2018 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$67.66

Black, Handle Bar

709401240

$55.35

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

Handle Grip

709400493

$14.09

End Piece

709400449

$8.29

Steering Support

709401799

$20.74

Stiffner

709400509

$4.43

Hex. Screw M8 X 60

207086046

$2.30

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682544

$0.90

Spherical Half Bushing

709400783

$6.14

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Attachment

709400827

$1.00

Column Attachment

709401428

$36.12

Tie Rod Ass`y | Includes 15 to 17

703501038

$91.67

Tie Rod Ass`y | Includes 15 to 17

703501038

$91.67

LH Ball Joint

709402303

$35.14

RH Ball Joint

709402302

$35.14

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Nut M12

250100099

$1.64

Cotter Pin

211400013

$0.32

Cover

709400939

$23.05

Power Steering Ass'y | Model With DPS

709403187

$1,158.04

LH Power Steering Bracket | Model With DPS

709402184

$15.35

RH Bracket | Model With DPS

709402185

$27.66

Power Steering Support | Model With DPS

709401743

$16.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 35

250000986

$1.74

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut M8

233081416

$1.63
