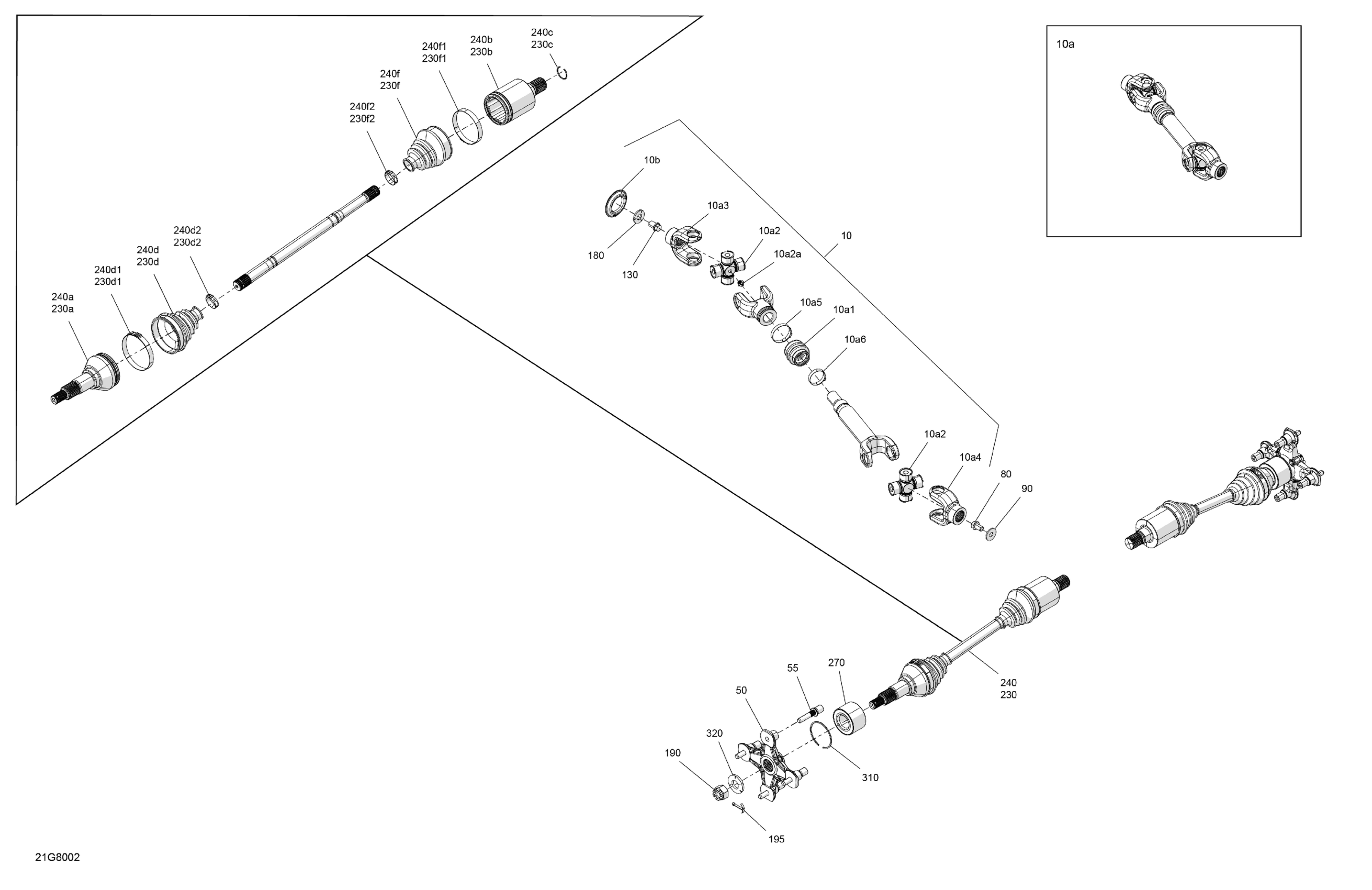

Can-Am OUTLANDER - 4X4 - DPS - 570 EFI - 2CJA - Orange Crush, 2018 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$292.12

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$13.59

10a2

Universal Joint

715900326

$65.54

10a2a

Grease Fitting | T3

715900295

$4.62

10a3

Yoke

715900438

$23.05

10a4

Yoke | T3

715900500

$23.05

10a5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

Unavailable

10a6

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10b

Protector

705501123

$7.37

Wheel Hub Ass'y

705501716

$129.20

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Half Shaft Ass'y

705501897

$231.79

230a

CV Joint

705401344

$246.52

230b

Plunging Joint

715900304

$115.35

230c

Circlip

705501781

$5.38

230d

Boot Kit, Wheel Side

705401345

$40.37

230d1

Oetiker Clamp

715900282

$4.39

230d2

Oetiker Clamp, Small

715900283

$4.39

230f

Boot Kit, Differential Side

705401346

$40.37

230f1

Oetiker Clamp, Large

715900284

$4.39

230f2

Oetiker Clamp, Small

715900261

$4.39

240

LH Half Shaft Ass'y

705501898

$231.79

240a

CV Joint

705401344

$246.52

240b

Plunging Joint

715900304

$115.35

240c

Circlip

705501781

$5.38

240d

Boot Kit, Wheel Side

705401345

$40.37

240d1

Oetiker Clamp

715900282

$4.39

240d2

Oetiker Clamp, Small

715900283

$4.39

240f

Boot Kit, Differential Side

705401346

$40.37

240f1

Oetiker Clamp, Large

715900284

$4.39

240f2

Oetiker Clamp, Small

715900261

$4.39

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28
