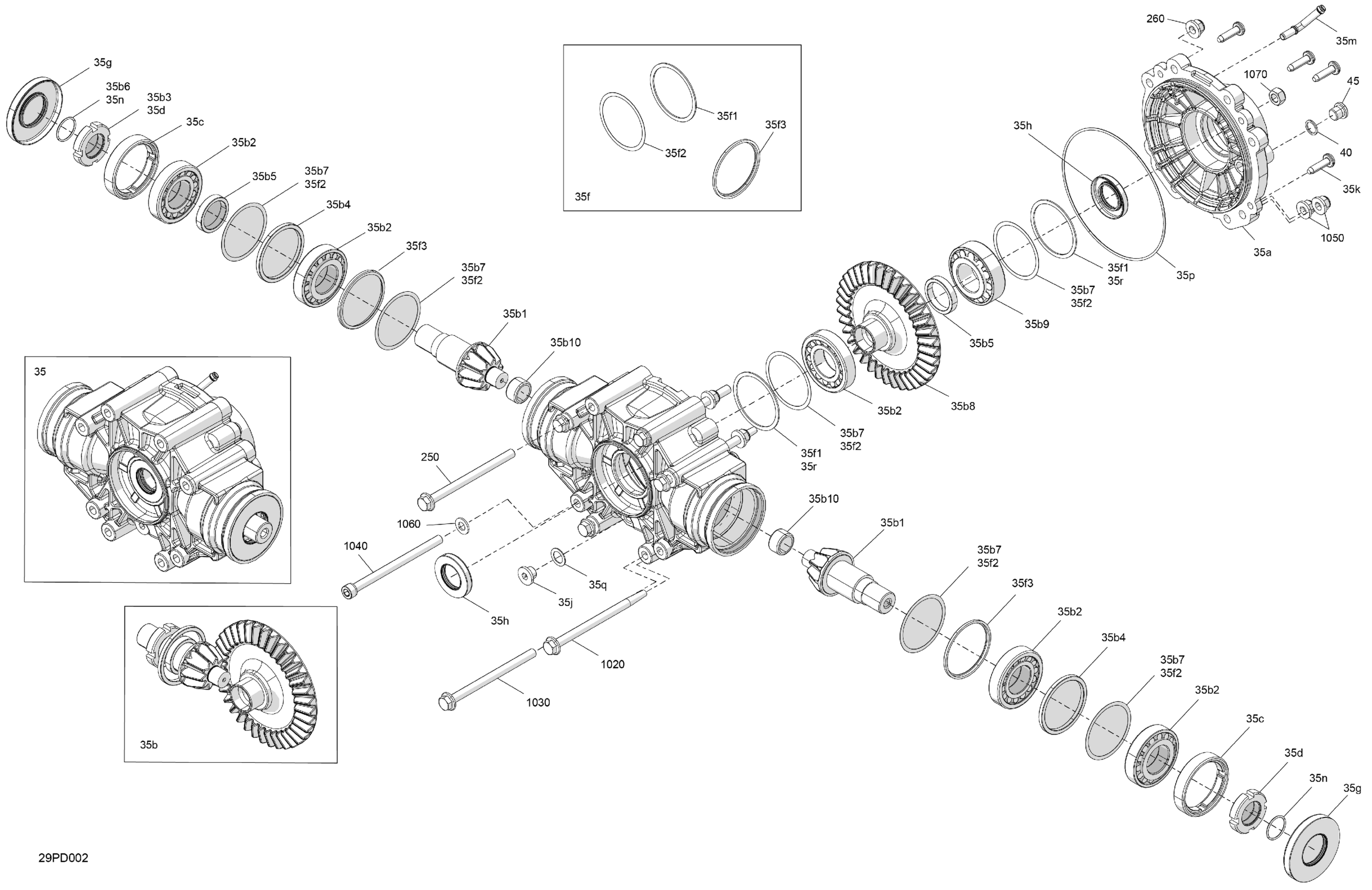

Can-Am Outlander MAX 650 EFI 6X6 - 5YRA - DPS Package - Tundra Green, 2024 Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit Ass'y | Includes 35 to 35r

705503692

$1,225.34

35a

Case Cover | Built Feb 2019 and Up

705503089

$61.16

35b

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$370.49

35b1

Geart 10 Teeth

705502809

Unavailable

35b2

Roller Bearing

705502174

Unavailable

35b3

Nut

705501550

$20.12

35b4

Differential Shim

705501552

Unavailable

35b5

Differential Shim

705501553

Unavailable

35b6

O-Ring

705501554

$3.94

35b7

Differential Shim

705501725

Unavailable

35b8

Gear 36 Tooth

705502810

Unavailable

35b9

Roller Bearing

705502173

Unavailable

35b10

Needle Bearing

705501760

Unavailable

35c

Nut

705501549

$30.57

35d

Nut

705501550

$20.12

35f

Differential Shim Kit

703500835

$42.51

35f1

Differential Shim

705501555

Unavailable

35f2

Differential Shim

705501725

Unavailable

35f3

Differential Shim

705501586

Unavailable

35g

Oil Seal

705501557

$17.88

35h

Oil Seal

705501556

$16.39

35j

Fill Level Plug | 4X4

705500504

$8.73

35k

Screw

705502063

$2.51

35m

Breather Tube

705501584

$13.45

35n

O-Ring

705501554

$3.94

35p

O-Ring

705501711

$8.97

35q

Copper Washer | 4X4

705500506

$0.42

35r

Differential Shim

705501555

Unavailable

Fill Level Plug | 4X4

705500504

$8.73

Copper Washer | 4X4

705500506

$0.42

250

Hex. Flange Screw M10 X 135

250001041

$5.12

260

Hex. Flange Elastic Nut M10

233201436

$2.00

1020

Hex. Flange Screw M10x145

705502741

$6.79

1030

Hex. Flange Screw M10 X 135

250001041

$5.12

1040

Socket Screw HD.din.912

231003587

$6.36

1050

Hex. Flange Elastic Nut M10

233201436

$2.00

1060

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1070

Elastic Stop Nut M10

232500416

$1.79
