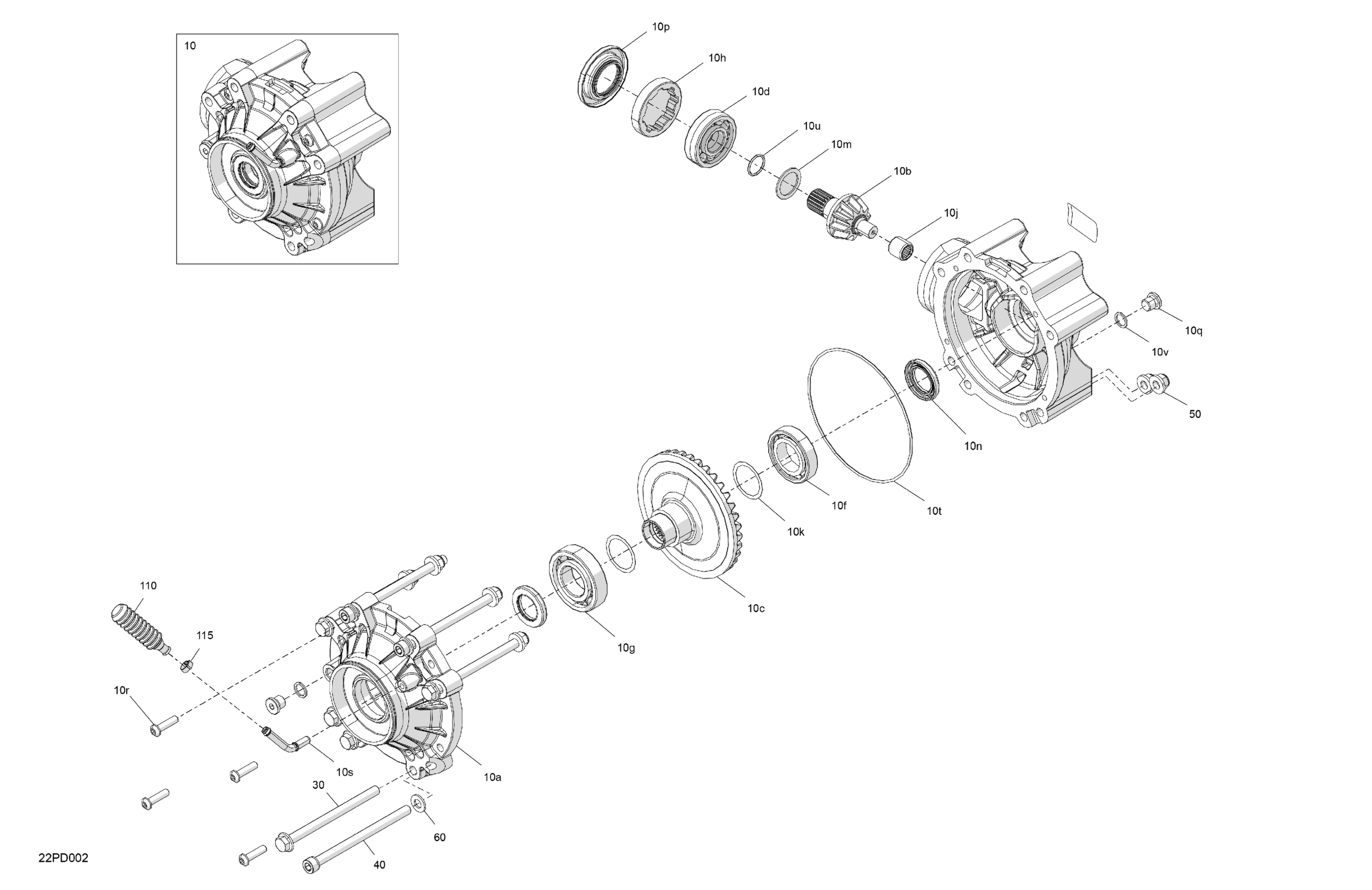

Can-Am Outlander MAX 650 EFI 6X6 - 5YRA - DPS Package - Tundra Green, 2024 Drive - Final Drive Unit Diagram

Description

Price

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$969.99

10a

Rear Cover

705502389

$179.99

10b

Pinion 10 Teeth

705502823

$219.99

10c

Gear 36 Teeth

705502822

$409.99

10d

Ball Bearing

705502736

$31.99

10f

Ball Bearing

705502737

$48.49

10g

Ball Bearing

705502738

$59.49

10h

Needle Bearing

705502058

$49.99

10j

Nut | 4X4

705401603

$35.99

10k

Differential Shim 0.02 mm

705502060

$13.76

10m

Pinion Gear Shim 1.67 mm

705502061

$18.99

10n

Oil Seal

705501996

$21.99

10p

Oil Seal

705402405

$27.49

10q

Fill Level Plug | 4X4

705500504

$10.01

10r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

10s

Breather Tube

705501584

$14.99

10t

Seal

705502064

$8.47

10u

O-Ring

705502065

$5.95

10v

Copper Washer | 4X4

705500506

$0.45

Hex. Flange Screw M10 X 135

250001041

$5.59

Socket Screw HD.din.912

231003587

$6.77

Hex. Flange Elastic Nut M10

233201436

$2.11

WASHER M10 - Call your local BRP dealership

20005

Unavailable

110

Rubber Bellow | 4X4

705400552

$6.14

115

Oetiker Clamp

293650042

$3.09
