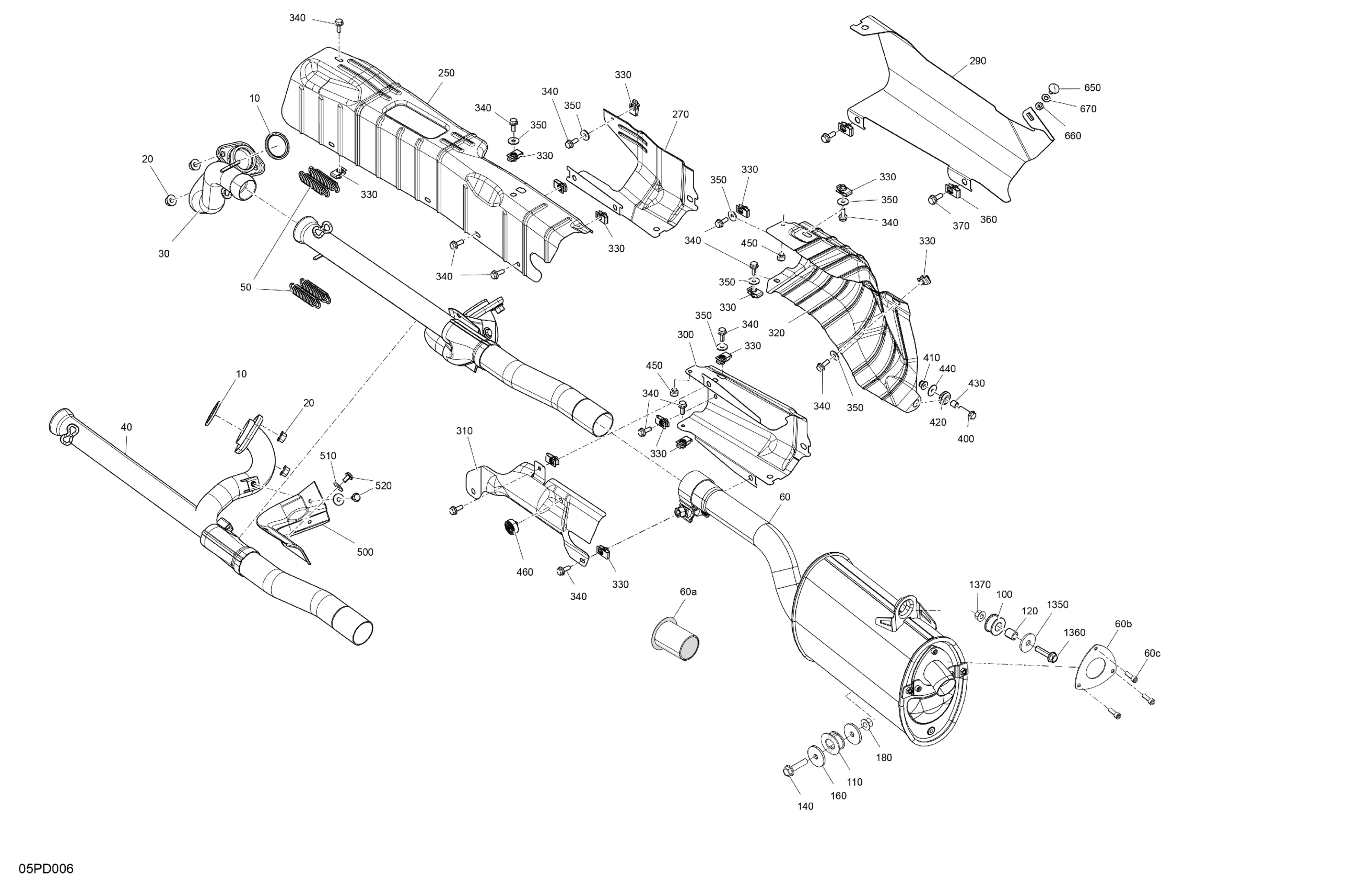

Can-Am International - Outlander MAX 650 EFI 6X6 - 5YRB - DPS Package - Tundra Green, 2024 Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$11.60

Hex. Flange Nut

233081436

$2.00

Front Head Pipe

707600764

$142.99

Rear Head Pipe

707601447

$206.49

Spring

415107100

$6.35

Exhaust Muffler

707603039

$529.99

60a

Spark Arrestor

707601803

$49.99

60b

Gasket

707601799

$5.99

60c

Socket Head Screw M6 X 20

205062060

$2.32

60d

Muffler End Piece

715900143

$35.99

60f

Support

715900147

$3.29

100

Vibration Damper

707603323

$11.65

110

Rubber

707600448

$7.90

120

Spacer Bushing

293900116

$3.24

140

Hex. Flange Screw M8 X 35

207683544

$1.69

160

Flat Washer M8

250200158

$2.11

180

Hex. Flange Nut

233081436

$2.00

250

Heat Shield

707603724

$13.99

270

Protector

707601484

$12.71

290

Heat Shield

707600996

$24.49

300

Protector

707601485

$12.71

310

Heat Shield

707602604

$19.99

320

Protector

707601425

$19.49

330

Panel Nut M6 X 1.0

250100198

$2.11

340

Hex. Flange Screw M6 X 16

207661644

$0.74

350

Flat Washer 6 mm

234062410

$0.77

360

Panel Nut M6 X 1.0

250100198

$2.11

370

Hex. Flange Screw M6 X 16

207661644

$0.74

400

Hex. Flange Screw M6 X 25

207662544

$0.64

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Overmolded Grommet

293720130

$4.69

430

Bushing

293900105

$7.65

440

Flat Washer

224060201

$1.26

450

Rubber Bumper

293830005

$8.09

460

Rubber Stopper

708000506

$7.55

500

Pipe Protector

707600932

$15.81

510

Flat Washer

250200082

$0.42

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.90

650

Carriage Bolt M6 X 12

207761244

$1.90

660

Elastic Stop Nut M6

232561434

$1.99

670

Flat Washer 6 mm

234061410

$1.36

1350

Washer

503032900

$3.28

1360

Hex. Flange Screw M8 X 35

207683534

$2.11

1370

Hex. Flange Nut

233081436

$2.00
