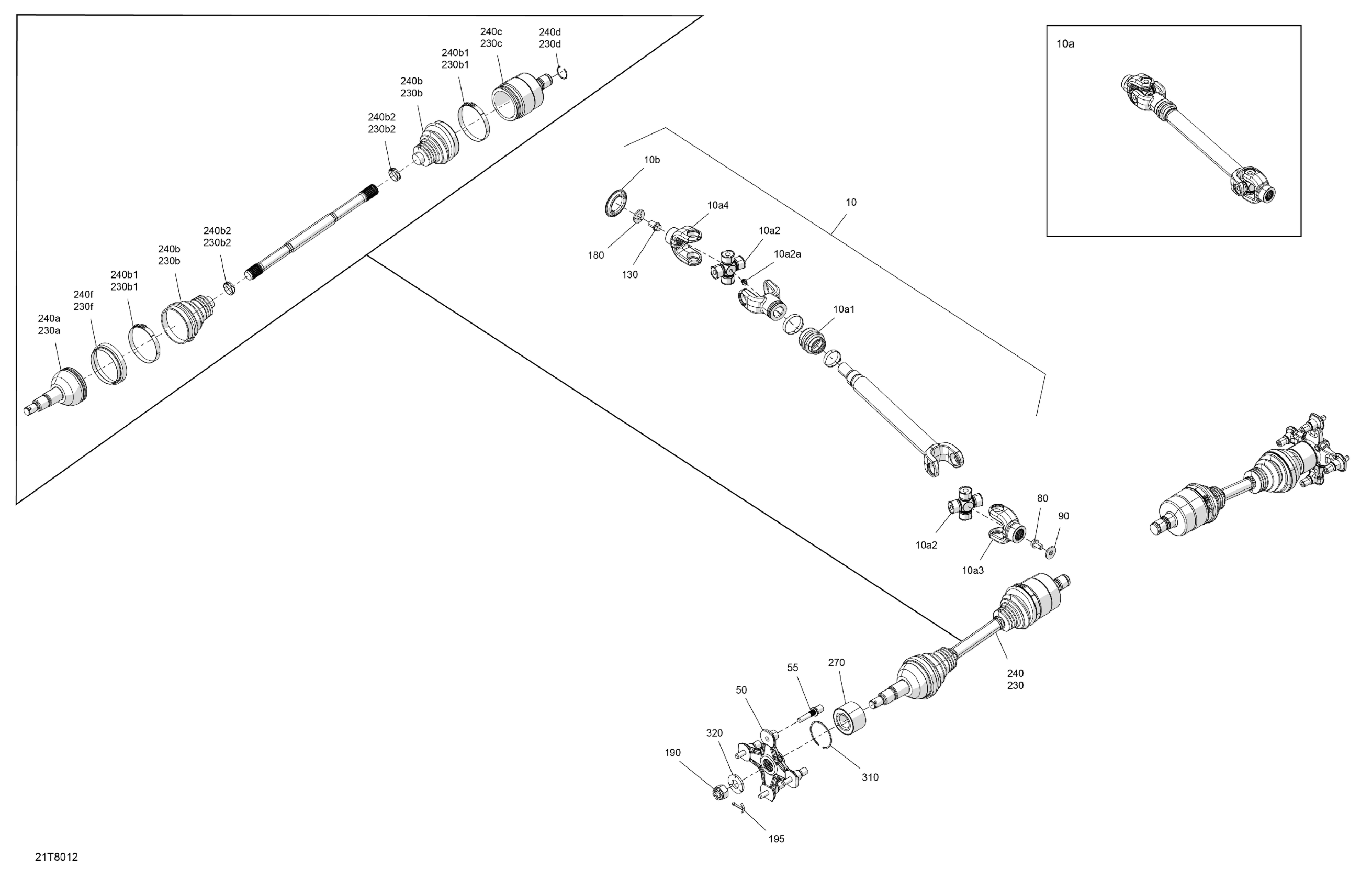

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJA - Can-Am Red, 2018 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit

703500989

$196.17

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$13.59

10a2

Universal Joint Ass'y | T3

703500846

$56.52

10a2a

Grease Fitting | T3

715900295

$4.62

10a3

Yoke

715900499

$23.05

10a4

Joint | T3

715900436

$23.05

10b

Protector

705501123

$7.37

Wheel Hub Ass'y

705501716

$129.20

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

Performance CV Axle - Rear Right

705501848

$210.74

230a

CV Joint

705501776

Unavailable

230b

Boot Kit

705501864

$40.37

230b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230d

Circlip

705501781

$5.38

230f

Joint Protector

705501842

$8.29

240

Performance CV Axle - Rear Left

705501847

$210.74

240a

CV Joint

705501776

Unavailable

240b

Boot Kit

705501864

$40.37

240b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

240b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240d

Circlip

705501781

$5.38

240f

Joint Protector

705501842

$8.29

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28
